SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

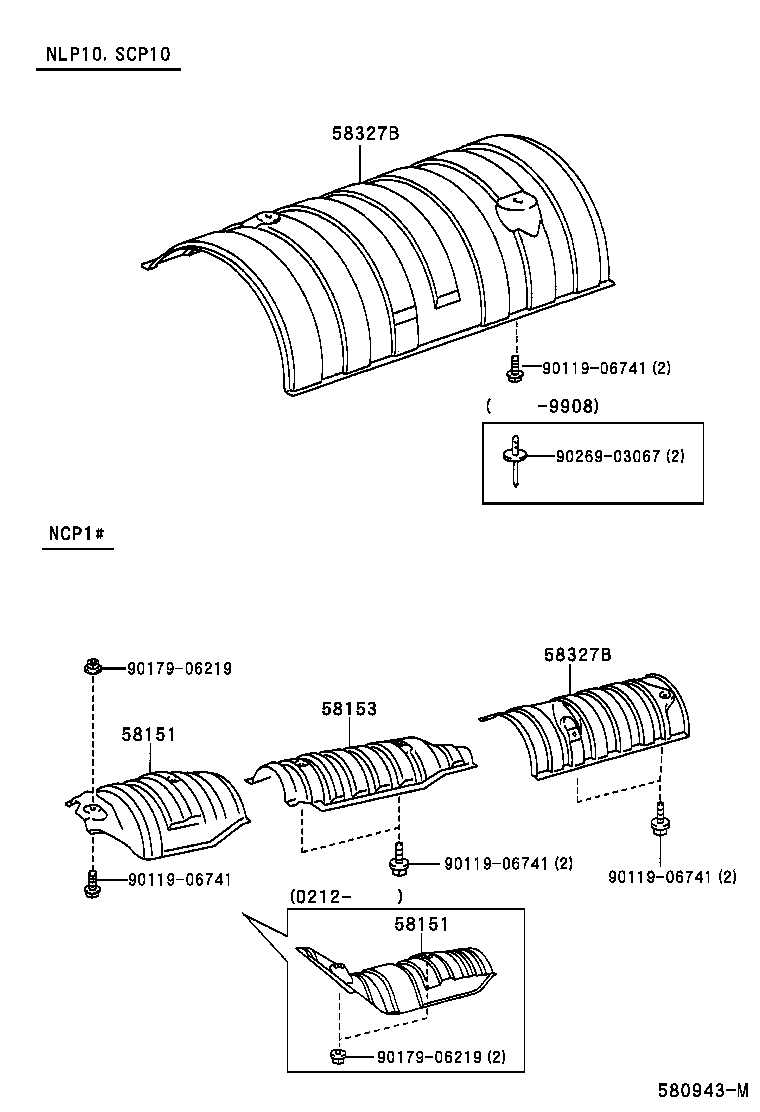

Click highlighted areas on diagram

diagram 58151 58151 58153 58327B 58327B 9011906741 9011906741 9011906741 9011906741 9017906219 9017906219 9026903067
Part # Description Qty Price
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52011

SCP10..JPP

 1
58327-52010

SCP10..JPP

 1
58327-52050

NCP1#,NLP10,SCP10..JPP

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52011

SCP10..JPP

 1
58327-52010

SCP10..JPP

 1
58327-52050

NCP1#,NLP10,SCP10..JPP

 1
Common parts
90119-06741
90179-06219
90269-03067
