SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

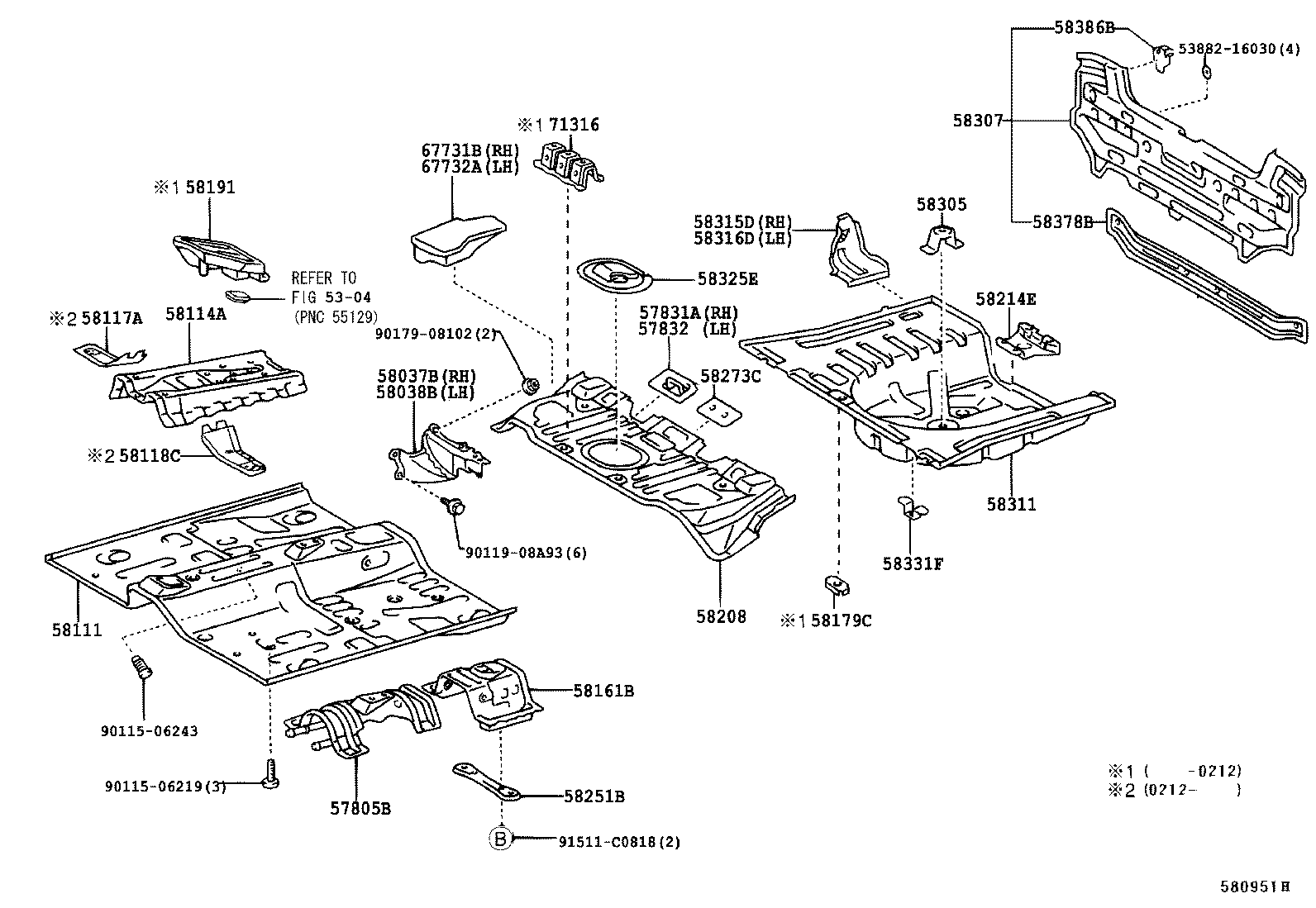

ILLUST NO. 1 OF 2(9901- )NCP10,NLP10,SCP10..JPP

Click highlighted areas on diagram

diagram 5304 5388216030 57805B 57831A 57832 58037B 58038B 58111 58114A 58117A 58118C 58161B 58179C 58191 58208 58214E 58251B 58273C 58305 58307 58311 58315D 58316D 58325E 58331F 58378B 58386B 67731B 67732A 71316 9011506219 9011506243 9011908A93 9017908102 91511C0818
Part # Description Qty Price
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-52011

SCP10..JPP

 1
57805-52010

SCP10..JPP

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH
58037-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH
58038-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
58111 - PAN, FRONT FLOOR
58111-52900

NCP10,SCP10..JPP

 1
58111-52906

NCP1#,NLP10,SCP10..JPP

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58103-52010

NCP1#,NLP10,SCP10..JPP

 1
58114-52010

NCP1#,NLP10,SCP10..JPP

 1
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-52010

NCP1#,NLP10,SCP10..JPP

 1
58191 - FOOTREST, FRONT FLOOR
58191-52010

NCP1#,NLP10,SCP10..JPP..LHD

 1
58208 - PAN, CENTER FLOOR
58211-52011

NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)

 1
58211-52010

SCP10..JPP

 1
58211-52012

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
58214E - BRACKET, JACK SUPPORT
58214-52010

NCP1#,NLP10,SCP10..JPP

 1
58251B - BRACE, FLOOR PANEL, FRONT
58251-52010

NCP1#,NLP10,SCP10..JPP

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010

NCP1#,NLP10,SCP10..JPP

 1
58351-32010

NCP1#,SCP10..JPP

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-52020

NCP10,NLP10,SCP10..JPP

 1
58311 - PAN, REAR FLOOR
58311-52120

NCP1#,NLP10,SCP10..JPP

 1
58311-52011

NCP1#,NLP10,SCP10..JPP

 1
58311-52010

NCP10,SCP10..JPP

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-52010

NCP1#,NLP10,SCP10..JPP

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-52010

NCP1#,NLP10,SCP10..JPP

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-52010

NCP1#,NLP10,SCP10..JPP

 1
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10011

SCP10..JPP

 2
58331-10010

NCP1#,NLP10,SCP10..JPP

 2
58378B - REINFORCEMENT, BODY LOWER BACK PANEL
58378-52010

NCP1#,NLP10,SCP10..JPP

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-52010

NCP10,NLP10,SCP10..JPP

 2
67731B - SPACER, SIDE TRIM, NO.1
67731-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
67732A - SPACER, SIDE TRIM, NO.2
67732-52010

NCP1#,NLP10,SCP10..JPP..3D

 1
Common parts
53882-16030
90115-06219
90115-06243
90119-08A93
90179-08102
91511-C0818
Linked diagrams
5304

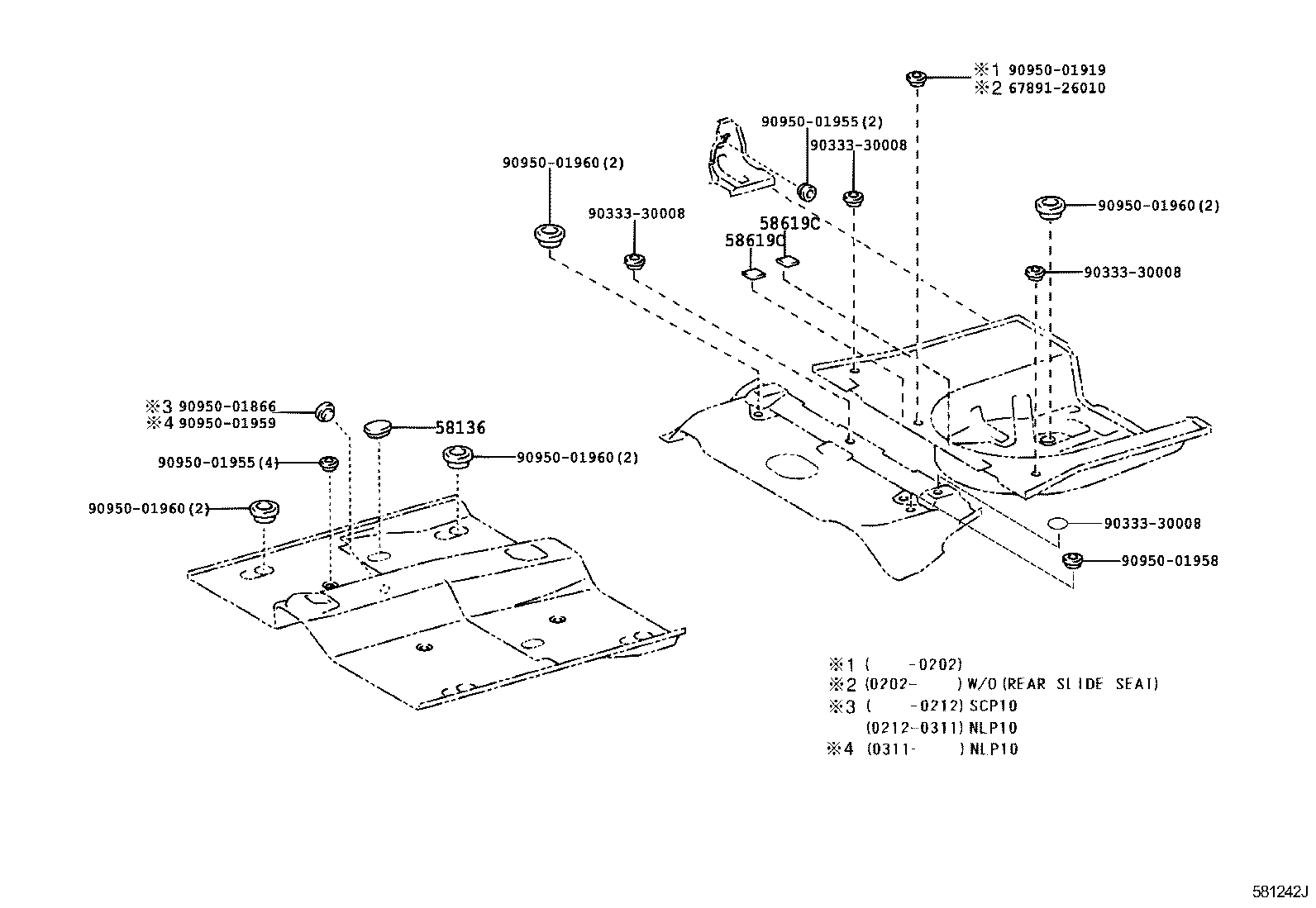

ILLUST NO. 2 OF 2(9901- )JPP

Click highlighted areas on diagram

diagram 58136 58619C 58619C 6789126010 9033330008 9033330008 9033330008 9033330008 9095001866 9095001919 9095001955 9095001955 9095001958 9095001959 9095001960 9095001960 9095001960 9095001960
Part # Description Qty Price
58136 - COVER, FRONT FLOOR HOLE
58136-52010

NCP1#,NLP10,SCP10..JPP

 2
58619C - SHEET, CENTER FLOOR SILENCER SUB
58619-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
58619C - SHEET, CENTER FLOOR SILENCER SUB
58619-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
Common parts
67891-26010
90333-30008
90950-01866
90950-01919
90950-01955
90950-01958
90950-01959
90950-01960
