SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

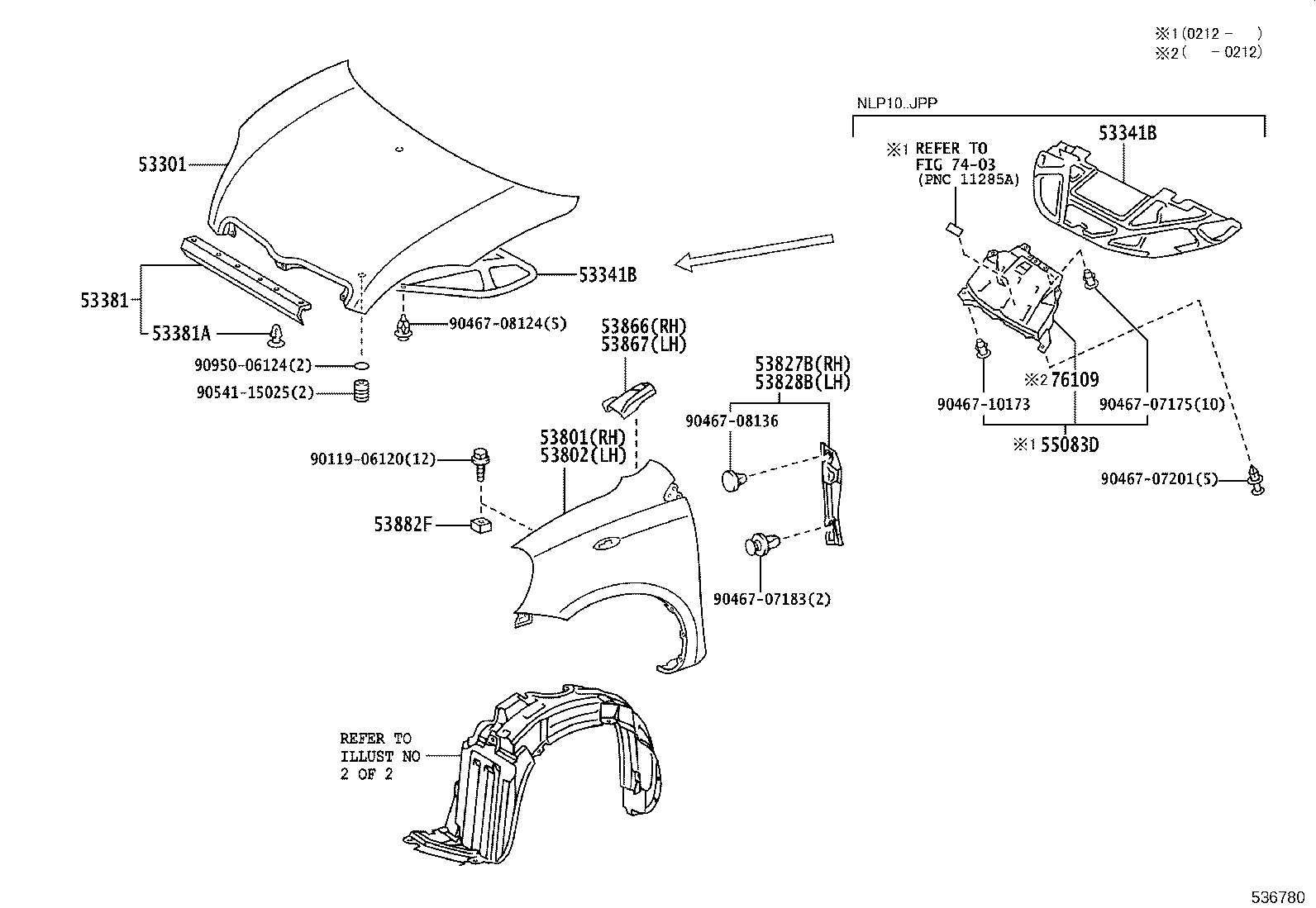

ILLUST NO. 1 OF 2(9901- )JPP

Click highlighted areas on diagram

diagram 53301 53341B 53341B 53381 53381A 53801 53802 53827B 53828B 53866 53867 53882F 55083D 7403 76109 9011906120 9046707175 9046707183 9046707201 9046708124 9046708136 9046710173 9054115025 9095006124
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-52020

NCP1#,NLP10,SCP10..JPP

 1
53341B - INSULATOR, HOOD
53341-52011

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53341-52010

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53341-52010

NCP10,SCP10..JPP

 1
53341B - INSULATOR, HOOD
53341-52011

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53341-52010

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53341-52010

NCP10,SCP10..JPP

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-52010

NCP1#,SCP10..JPP

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

NCP1#,SCP10..JPP

 6
53801 - FENDER SUB-ASSY, FRONT RH
53811-52010

NCP1#,NLP10,SCP10..JPP

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-52010

NCP1#,NLP10,SCP10..JPP

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-52010

SCP10..JPP..LHD

 1
53827-52040

NCP10,SCP10..JPP

 1
53827-52041

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53827-52040

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-52010

SCP10..JPP..LHD

 1
53828-52041

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53828-52040

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
53828-52040

NCP10,SCP10..JPP

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-52010

NCP1#,NLP10,SCP10..JPP

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-52010

NCP1#,NLP10,SCP10..JPP

 1
53882F - SEAL, FRONT FENDER
53882-16030

NCP1#,NLP10,SCP10..JPP

 8
53882-16030

NCP10,SCP10..JPP

 12
Common parts
90119-06120
90467-07175
90467-07183
90467-07201
90467-08124
90467-08136
90467-10173
90541-15025
90950-06124
Linked diagrams
7403

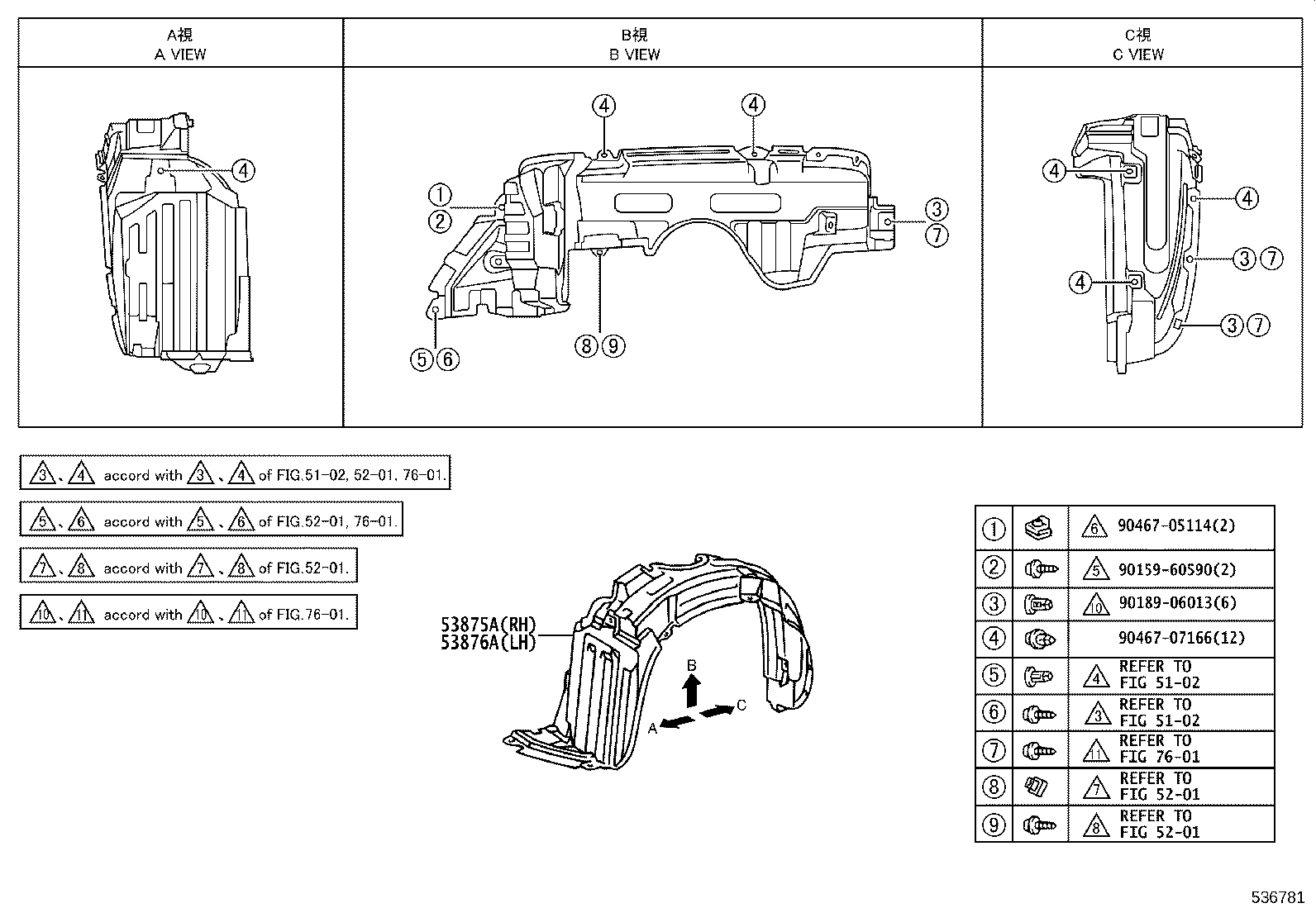

ILLUST NO. 2 OF 2(9901- )JPP

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5102 5201 5201 53875A 53876A 7601 9015960590 9018906013 9046705114 9046707166
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-52011

NCP1#,NLP10,SCP10..JPP

 1
53875-52010

NCP1#,NLP10,SCP10..JPP

 1
53876A - LINER, FRONT FENDER, LH
53876-52011

NCP1#,NLP10,SCP10..JPP

 1
53876-52010

NCP1#,NLP10,SCP10..JPP

 1
Common parts
90159-60590
90189-06013
90467-05114
90467-07166
Linked diagrams
5102
5201
7601
