SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )NCP1#,SCP10..JPP

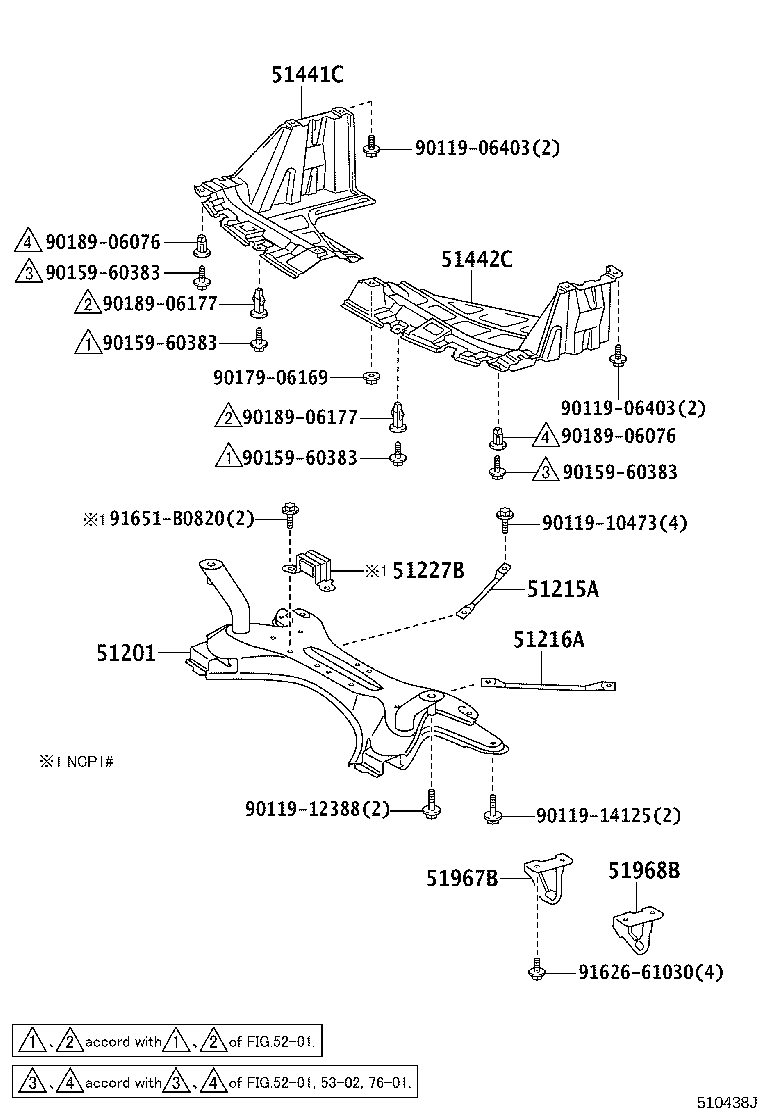

Click highlighted areas on diagram

diagram 51201 51215A 51216A 51227B 51441C 51442C 51967B 51968B 9011906403 9011906403 9011910473 9011912388 9011914125 9015960383 9015960383 9015960383 9015960383 9017906169 9018906076 9018906076 9018906177 9018906177 9162661030 91651B0820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52011

NCP1#,NLP10,SCP10..JPP

 1
51201-52012

NCP1#,NLP10,SCP10..JPP

 1
51201-52010

SCP10..JPP

 1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51215-52010

NCP1#,NLP10,SCP10..JPP

 1
51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51215-52010

NCP1#,NLP10,SCP10..JPP

 1
51441C - COVER, ENGINE UNDER, RH
51441-52030

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
51442C - COVER, ENGINE UNDER, LH
51442-52030

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)..5F

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-10100

NCP1#,NLP10,SCP10..JPP

 1
51968B - HOOK, TRANSPORT, REAR LH
51967-10090

NCP1#,NLP10,SCP10..JPP

 1
Common parts
90119-06403
90119-10473
90119-12388
90119-14125
90159-60383
90179-06169
90189-06076
90189-06177
91626-61030
91651-B0820
