SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )SCP10..JPP..LHD

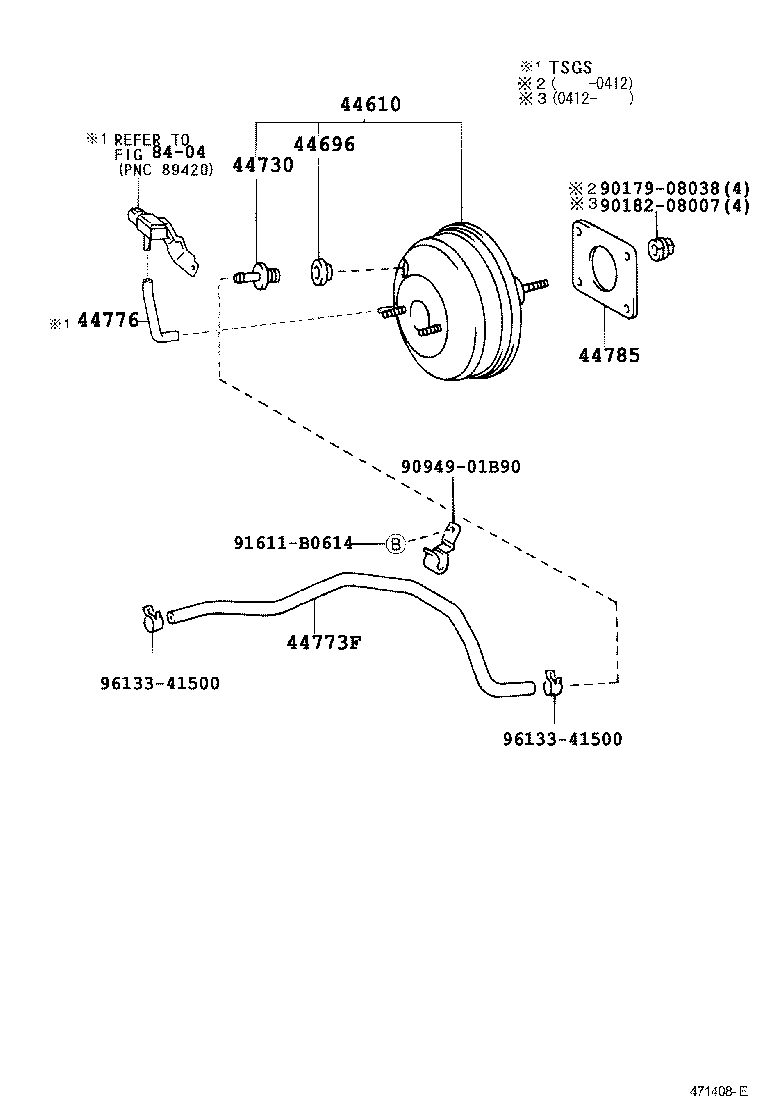

Click highlighted areas on diagram

diagram 44610 44696 44730 44773F 44776 44785 8404 9017908038 9018208007 9094901B90 91611B0614 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-52050

NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)

W(ABS & REAR DISC BRAKE)

 1
44610-52030

NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)

 1
44696 - GROMMET, CHECK VALVE
90480-24015

NCP13..JPP;NCP10,SCP10..JPP..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

NCP13..JPP;NCP10,SCP10..JPP..LHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-52030

SCP10..JPP..LHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

NCP1#,NLP10,SCP10..JPP

 1
Common parts
90179-08038
90182-08007
90949-01B90
91611-B0614
96133-41500
Linked diagrams
8404
