SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

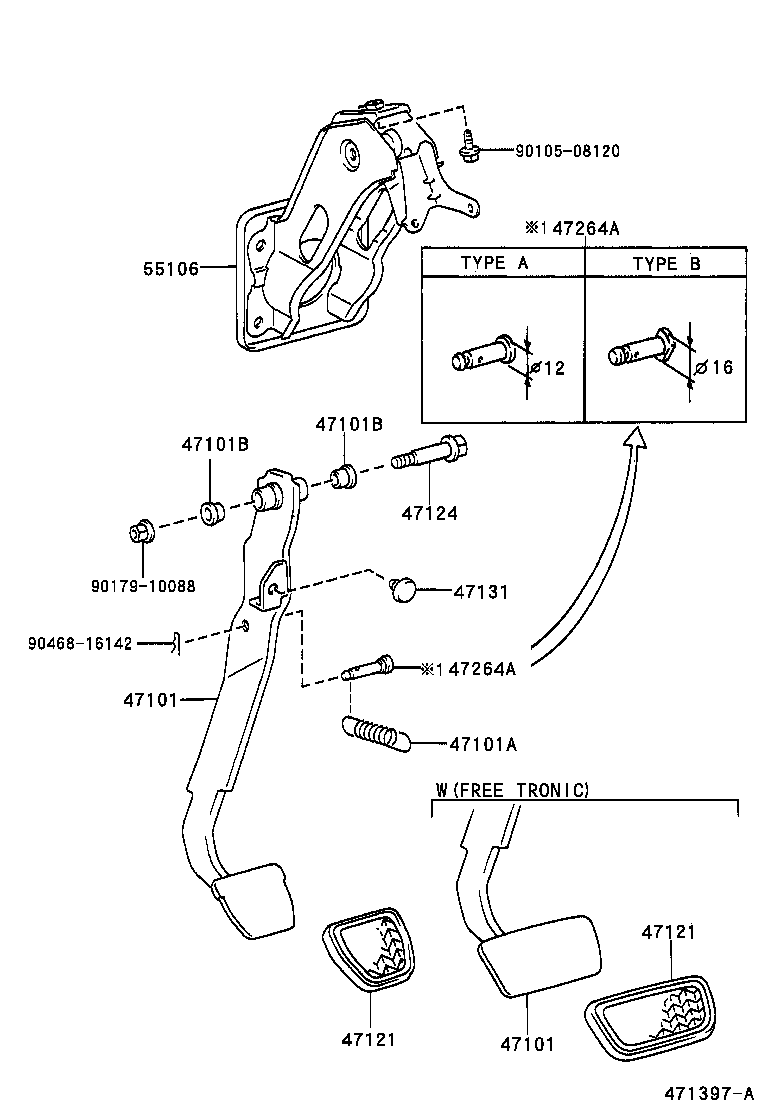

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101B 47101B 47121 47121 47124 47131 47264A 47264A 55106 9010508120 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-52031

NCP1#,NLP10,SCP10..JPP..LHD..5F

 1
47101-52030

SCP10..JPP..LHD

 1
47101-52040

NCP10..JPP..LHD..4FC;SCP10..JPP..LHD..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
47101 - PEDAL SUB-ASSY, BRAKE
47101-52031

NCP1#,NLP10,SCP10..JPP..LHD..5F

 1
47101-52030

SCP10..JPP..LHD

 1
47101-52040

NCP10..JPP..LHD..4FC;SCP10..JPP..LHD..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14077

NCP1#,NLP10,SCP10..JPP

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP1#,NLP10,SCP10..JPP

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP1#,NLP10,SCP10..JPP

 2
47121 - PAD, BRAKE PEDAL
31321-52010

NCP1#,NLP10,SCP10..JPP..5F

 1
47121-52010

NCP10..JPP..4FC;SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
47121 - PAD, BRAKE PEDAL
31321-52010

NCP1#,NLP10,SCP10..JPP..5F

 1
47121-52010

NCP10..JPP..4FC;SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NCP1#,NLP10,SCP10..JPP

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

NCP1#,NLP10,SCP10..JPP

 1
47264A - PIN(FOR PUSH ROD)
90249-08295

NCP1#,NLP10,SCP10..JPP..LHD

 1
47264A - PIN(FOR PUSH ROD)
90249-08295

NCP1#,NLP10,SCP10..JPP..LHD

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
Common parts
90105-08120
90179-10088
90468-16142
