SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)SCP10..JPP..LHD

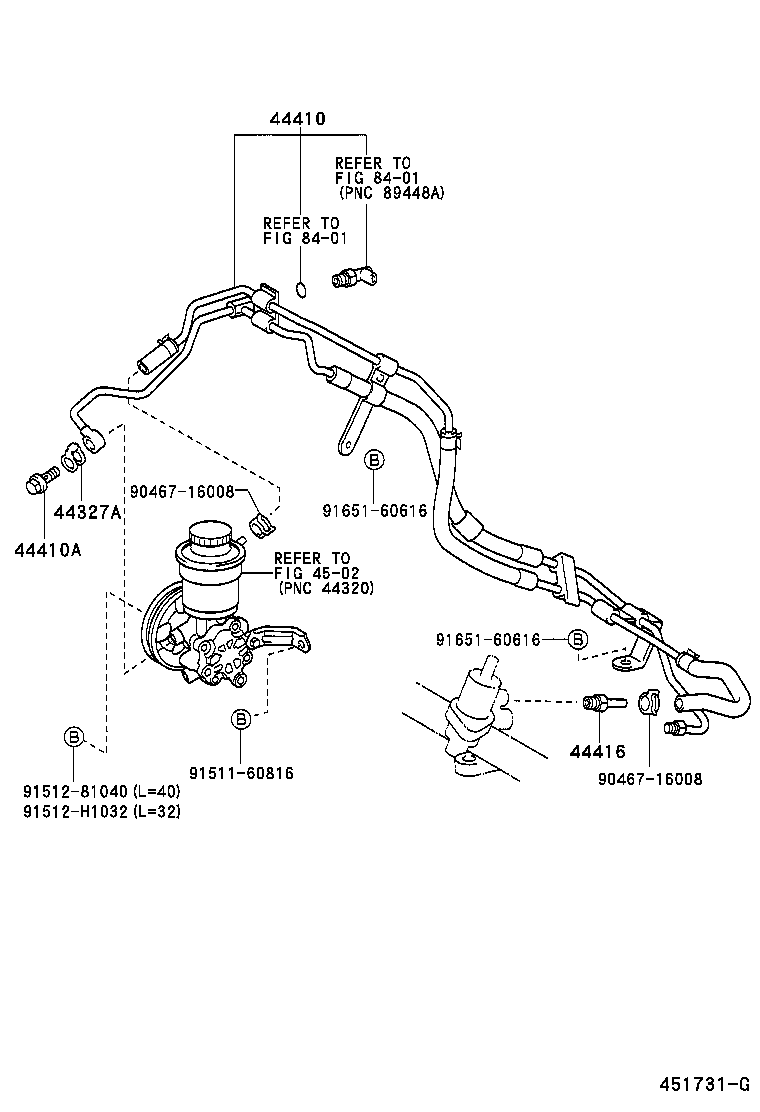

Click highlighted areas on diagram

diagram 44327A 44410 44410A 44416 4502 8401 8401 9046716008 9046716008 9151160816 9151281040 91512H1032 9165160616 9165160616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-52020

SCP10..JPP..LHD..(LUNA,SOL,TRSTD)

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-52010

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

 1
Common parts
90467-16008
91511-60816
91512-81040
91512-H1032
91651-60616
Linked diagrams
4502
8401
