SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )NCP10,SCP10..JPP

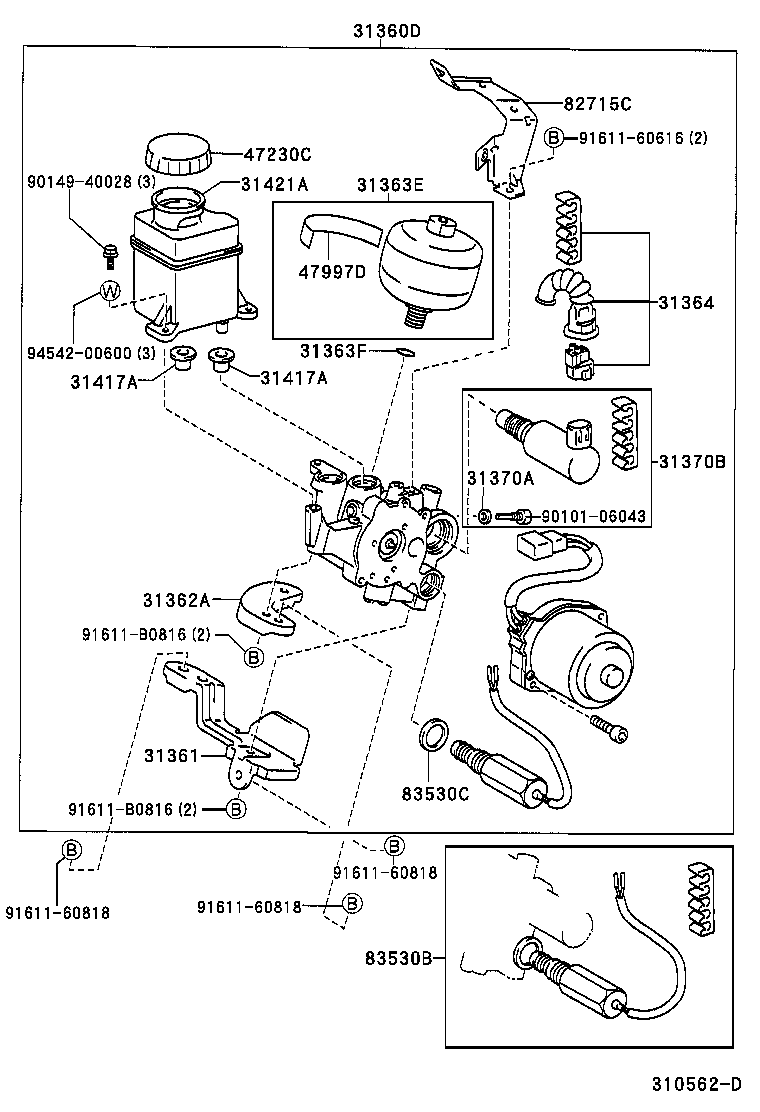

Click highlighted areas on diagram

diagram 31360D 31361 31362A 31363E 31363F 31364 31370A 31370B 31417A 31417A 31421A 47230C 47997D 82715C 83530B 83530C 9010106043 9014940028 9161160616 9161160818 9161160818 9161160818 91611B0816 91611B0816 9454200600
Part # Description Qty Price
31360D - ACTUATOR ASSY, CLUTCH
31360-52013

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31360-52011

SCP10..JPP

 1
31360-52010

SCP10..JPP

 1
31360-52012

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31361 - BRACKET, CLUTCH ACTUATOR, NO.1
31361-52011

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31361-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31362A - BRACKET, CLUTCH ACTUATOR, NO.2
31362-52011

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31362-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31363E - ACCUMULATOR, CLUTCH ACTUATOR
31363-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31363F - RING, O(FOR CLUTCH ACTUATOR ACCUMULATOR)
90301-13014

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31364 - WIRE, CLUTCH CONTROL SOLENOID
31364-59015

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31370A - GASKET(FOR CLUTCH STROKE CONTROL SOLENOID)
90430-06104

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31370B - SOLENOID ASSY, CLUTCH STROKE CONTROL
31370-59015

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31417A - GROMMET, CLUTCH ACTUATOR RESERVOIR
31417-35010

SCP10..JPP..(LUNA,SOL,TRSTD)

 2
31417A - GROMMET, CLUTCH ACTUATOR RESERVOIR
31417-35010

SCP10..JPP..(LUNA,SOL,TRSTD)

 2
31421A - RESERVOIR, CLUTCH ACTUATOR
31421-52011

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31421-52010

SCP10..JPP

 1
47230C - CAP ASSY, RESERVOIR FILLER(FOR CLUTCH ACTUATOR)
47230-24010

SCP10..JPP

 1
47230-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
47997D - LABEL, ACCUMULATOR CAUTION
47997-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
82715C - BRACKET, WIRING HARNESS CLAMP
82715-52290

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
83530B - SWITCH ASSY, OIL PRESSURE(FOR CLUTCH ACTUATOR PUMP)
83530-59015

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
83530C - GASKET(FOR CLUTCH ACTUATOR)
90430-22010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
Common parts
90101-06043
90149-40028
91611-60616
91611-60818
91611-B0816
94542-00600
