SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )SCP10..JPP

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
04313-17010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-52020

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31470-52040

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

NCP1#,NLP10,SCP10..JPP..5F

*8-1.25PX22-17.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20031

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31473-52020

SCP10..JPP

W(FREE TRONIC)

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

NCP1#,NLP10,SCP10..JPP..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-20010

NCP1#,NLP10,SCP10..JPP..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NCP1#,NLP10,SCP10..JPP..5F

 1

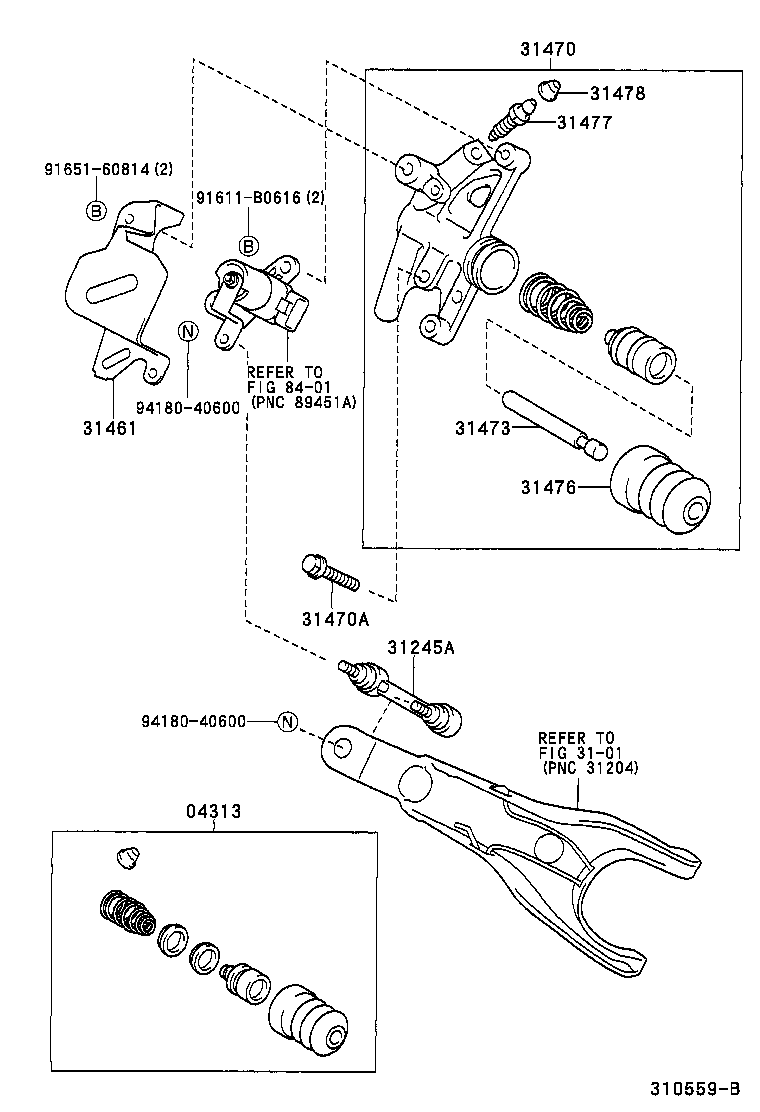

(9901-0212)SCP10..JPP

Click highlighted areas on diagram

W(FREE TRONIC)

diagram 04313 3101 31245A 31461 31470 31470A 31473 31476 31477 31478 8401 91611B0616 9165160814 9418040600 9418040600
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
04313-17010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31245A - ROD, CLUTCH RELEASE FORK
31245-52010

SCP10..JPP

 1
31461 - INSULATOR, RELEASE CYLINDER HEAT
31461-52020

SCP10..JPP

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-52020

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31470-52040

SCP10..JPP..(LUNA,SOL,TRSTD)

W(FREE TRONIC)

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

NCP1#,NLP10,SCP10..JPP..5F

*8-1.25PX22-17.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20031

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31473-52020

SCP10..JPP

W(FREE TRONIC)

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

NCP1#,NLP10,SCP10..JPP..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-20010

NCP1#,NLP10,SCP10..JPP..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NCP1#,NLP10,SCP10..JPP..5F

 1
Common parts
91611-B0616
91651-60814
94180-40600
Linked diagrams
3101
8401
