SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9901- )SCP10..JPP..LHD..LUNA,SOL,TRSTD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31482C 31484A 31485 9046808035 9046808035 9094901B45 9162160816 9163540620
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01136

SCP10..JPP

 1
90947-02C30

SCP10..JPP

 1

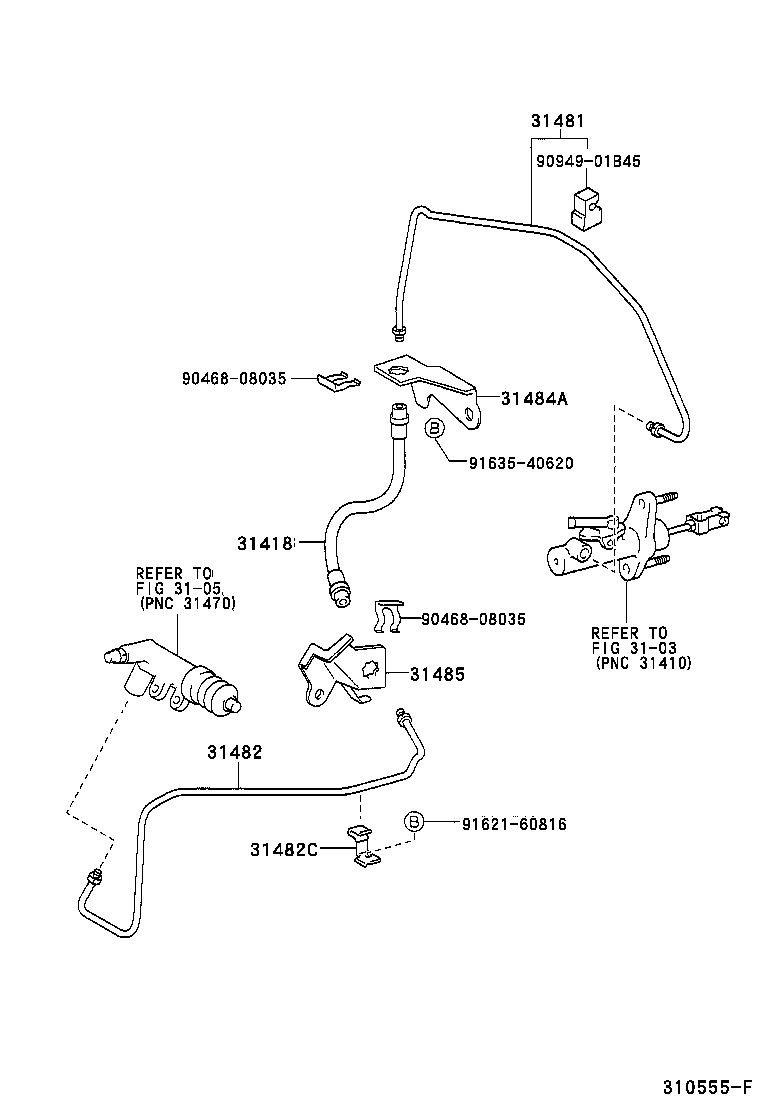

31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52030

NCP1#,SCP10..JPP..LHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31482-52011

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01C48

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

NCP1#,NLP10,SCP10..JPP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52030

SCP10..JPP

 1
Common parts
90468-08035
90949-01B45
91621-60816
91635-40620
Linked diagrams
3103
3105

(9901- )SCP10..JPP

Click highlighted areas on diagram

W(FREE TRONIC)

diagram 3105 3106 31483C 9162160816 9162160816 9622134905 9622134905
Part # Description Qty Price

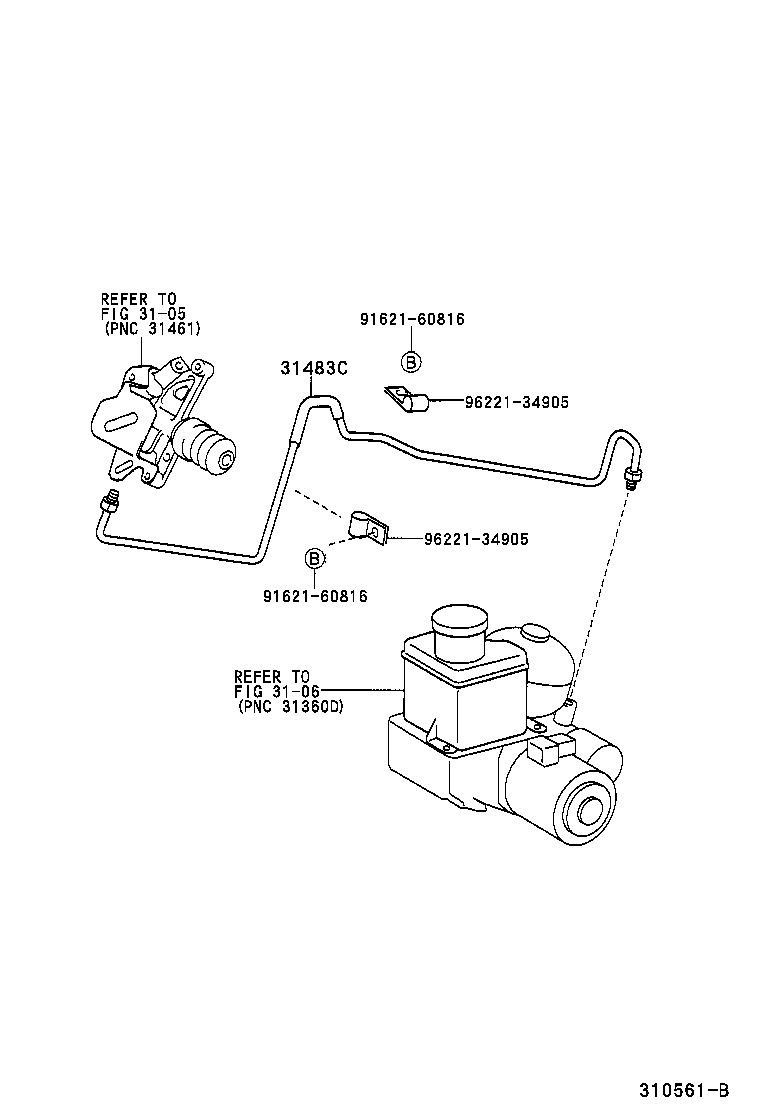

31483C - TUBE, CLUTCH ACTUATOR TO RELEASE CYLINDER
31483-52011

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
31483-52010

SCP10..JPP..(LUNA,SOL,TRSTD)

 1
Common parts
91621-60816
96221-34905
Linked diagrams
3105
3106

ILLUST NO. 1 OF 2(9901- )SCP10..JPP ; (9908- )NCP1#,NLP10..JPP..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31453A 31453B 55107A 9010508120 9017910088 9046816142 9413060800 9413061000
Part # Description Qty Price

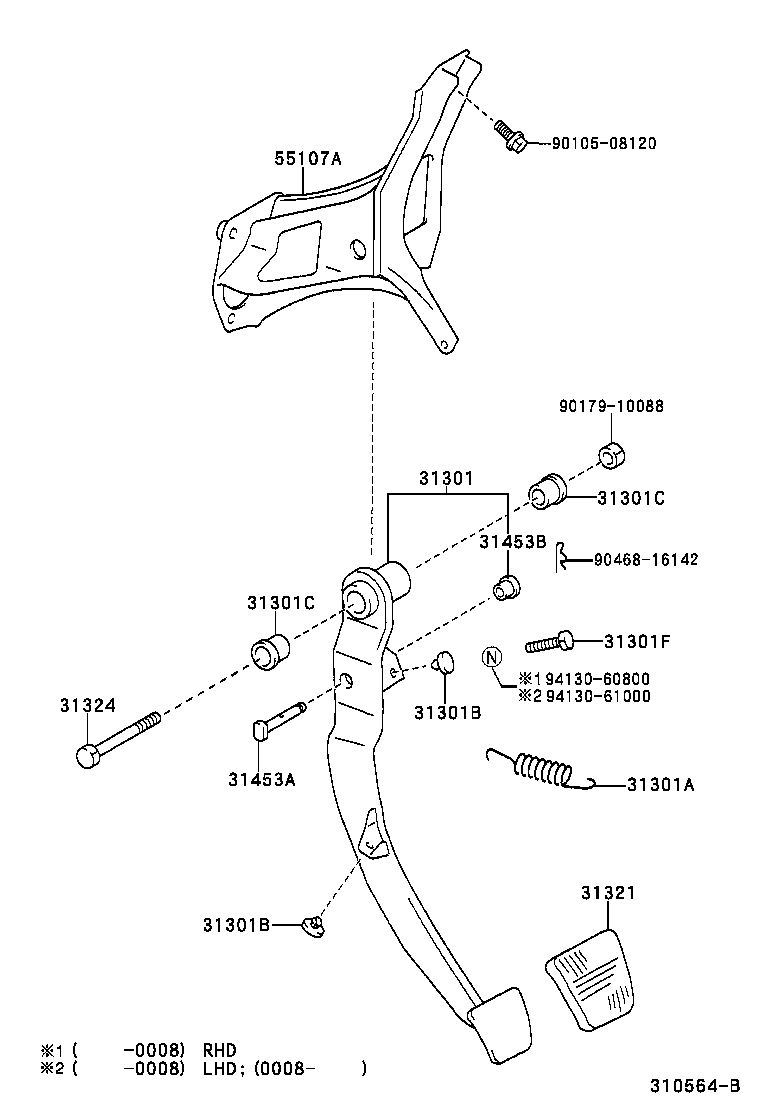

31301 - PEDAL SUB-ASSY, CLUTCH
31301-52020

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

NCP1#,NLP10,SCP10..JPP..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NCP1#,NLP10,SCP10..JPP..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NCP1#,NLP10,SCP10..JPP..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

SCP10..JPP

 1
90101-10369

NLP10..JPP..RHD;NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)..5F

 1
90101-10369

NCP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD)..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

NCP1#,NLP10,SCP10..JPP..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

NCP1#,NLP10,SCP10..JPP..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08294

NCP1#,NLP10,SCP10..JPP..LHD..5F

L=48.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

NCP1#,NLP10,SCP10..JPP..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52020

SCP10..JPP..LHD

 1
55107-52021

NCP1#,SCP10..JPP..LHD..5F

 1
Common parts
90105-08120
90179-10088
90468-16142
94130-60800
94130-61000
