SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)1SZFE..JPP

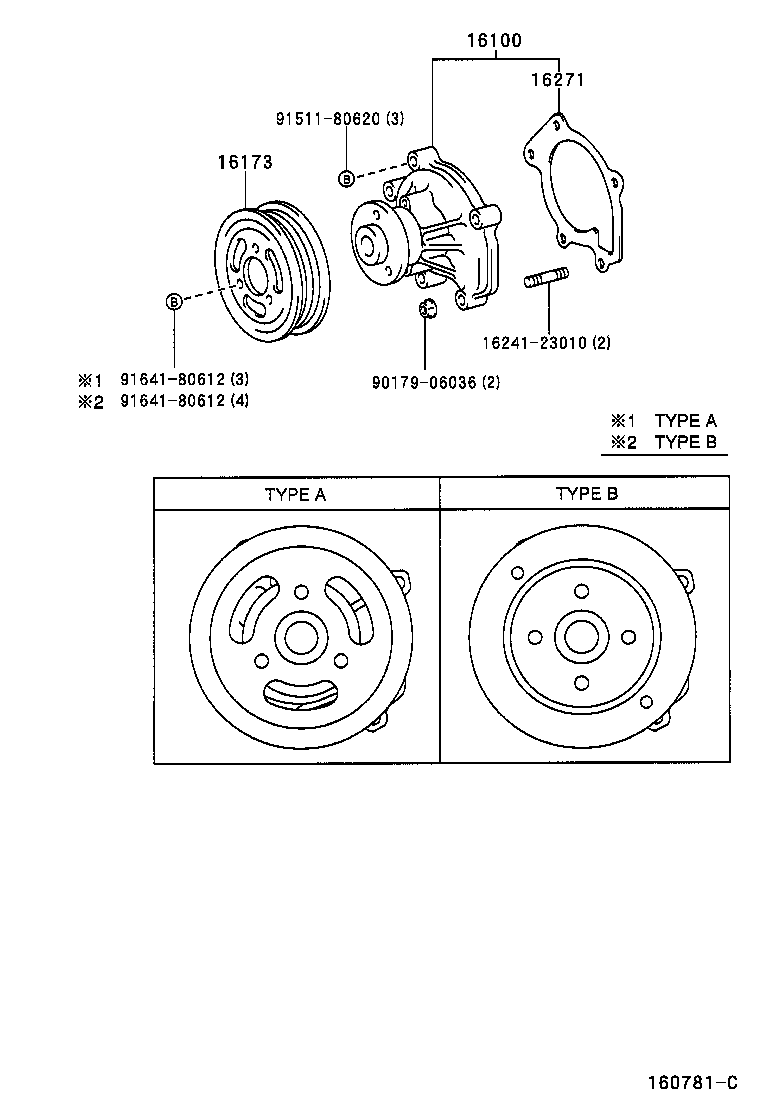

Click highlighted areas on diagram

diagram 16100 16173 1624123010 16271 9017906036 9151180620 9164180612 9164180612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29115

1SZFE..SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
16173 - PULLEY, WATER PUMP
16173-23020

1SZFE..SCP10..JPP

TYPE A:REFER TO ILLUSTRATION

 1
16271 - GASKET, WATER PUMP
16271-23020

1SZFE..SCP10..JPP

 1
Common parts
16241-23010
90179-06036
91511-80620
91641-80612
