SCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)
(9901-0212)1SZFE..JPP

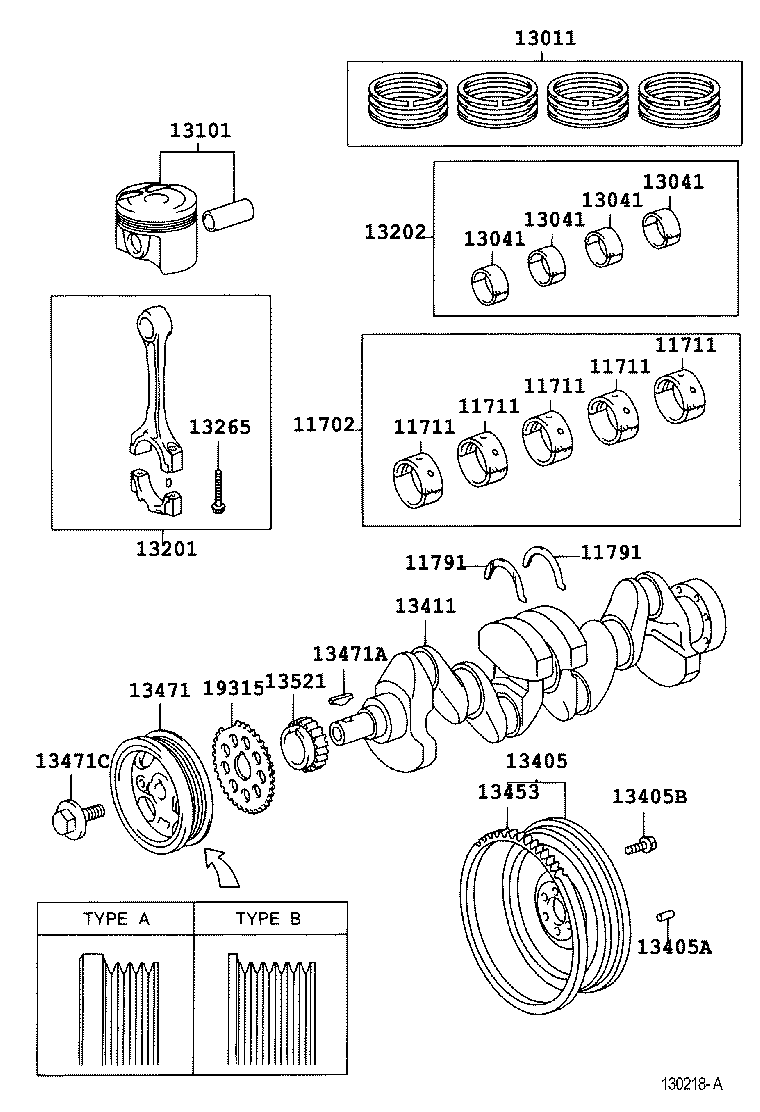

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-23020 |
1SZFE..SCP10..JPP U/S 0.25 |
1 | ||
| 11704-23050 |
1SZFE..SCP10..JPP U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2302003 |
1SZFE..SCP10..JPP MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-2302005 |
1SZFE..SCP10..JPP MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2302002 |
1SZFE..SCP10..JPP MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-2302004 |
1SZFE..SCP10..JPP MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2302003 |
1SZFE..SCP10..JPP MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-2302005 |
1SZFE..SCP10..JPP MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2302002 |
1SZFE..SCP10..JPP MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-2302004 |
1SZFE..SCP10..JPP MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2302003 |
1SZFE..SCP10..JPP MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-2302005 |
1SZFE..SCP10..JPP MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2302002 |
1SZFE..SCP10..JPP MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-2302004 |
1SZFE..SCP10..JPP MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2302003 |
1SZFE..SCP10..JPP MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-2302005 |
1SZFE..SCP10..JPP MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2302002 |
1SZFE..SCP10..JPP MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-2302004 |
1SZFE..SCP10..JPP MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2302003 |
1SZFE..SCP10..JPP MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-2302005 |
1SZFE..SCP10..JPP MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2302002 |
1SZFE..SCP10..JPP MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-2302004 |
1SZFE..SCP10..JPP MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-23020 |
1SZFE..SCP10..JPP O/S 0.125 |
2 | ||
| 11791-23020 |
1SZFE..SCP10..JPP STD |
2 | ||
| 11793-23020 |
1SZFE..SCP10..JPP O/S 0.25 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11792-23020 |
1SZFE..SCP10..JPP O/S 0.125 |
2 | ||
| 11791-23020 |
1SZFE..SCP10..JPP STD |
2 | ||
| 11793-23020 |
1SZFE..SCP10..JPP O/S 0.25 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-23040 |
1SZFE..SCP10..JPP STD |
1 | ||
| 13013-23041 |
1SZFE..SCP10..JPP O/S 0.50 |
1 | ||
| 13013-23040 |
1SZFE..SCP10..JPP O/S 0.50 |
1 | ||
| 13011-23041 |
1SZFE..SCP10..JPP STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-23020 |
1SZFE..SCP10..JPP |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-23020 |
1SZFE..SCP10..JPP |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-23020 |
1SZFE..SCP10..JPP |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-23020 |
1SZFE..SCP10..JPP |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-23020 |
1SZFE..SCP10..JPP STD,REFER TO REPAIR MANUAL |
4 | ||
| 13103-23020 |
1SZFE..SCP10..JPP O/S 0.50,REFER TO REPAIR MANUAL |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-23022 |
1SZFE..SCP10..JPP |
4 | ||
| 13201-23022 |
1SZFE..SCP10..JPP |
4 | ||
| 13201-23022 |
1SZFE..SCP10..JPP |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-23020 |
1SZFE..SCP10..JPP U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-23010 |
1SZFE..SCP10..JPP |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-23040 |
1SZFE..SCP10..JPP |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1SZFE..SCP10..JPP L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10463 |
1SZFE..SCP10..JPP |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-23030 |
1SZFE..SCP10..JPP |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-23020 |
1SZFE..SCP10..JPP |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-23010 |
1SZFE..SCP10..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
1SZFE..SCP10..JPP |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12308 |
1SZFE..SCP10..JPP |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-23010 |
1SZFE..SCP10..JPP |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-23010 |
1SZFE..SCP10..JPP |
1 | ||
