SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)1SZFE..JPP

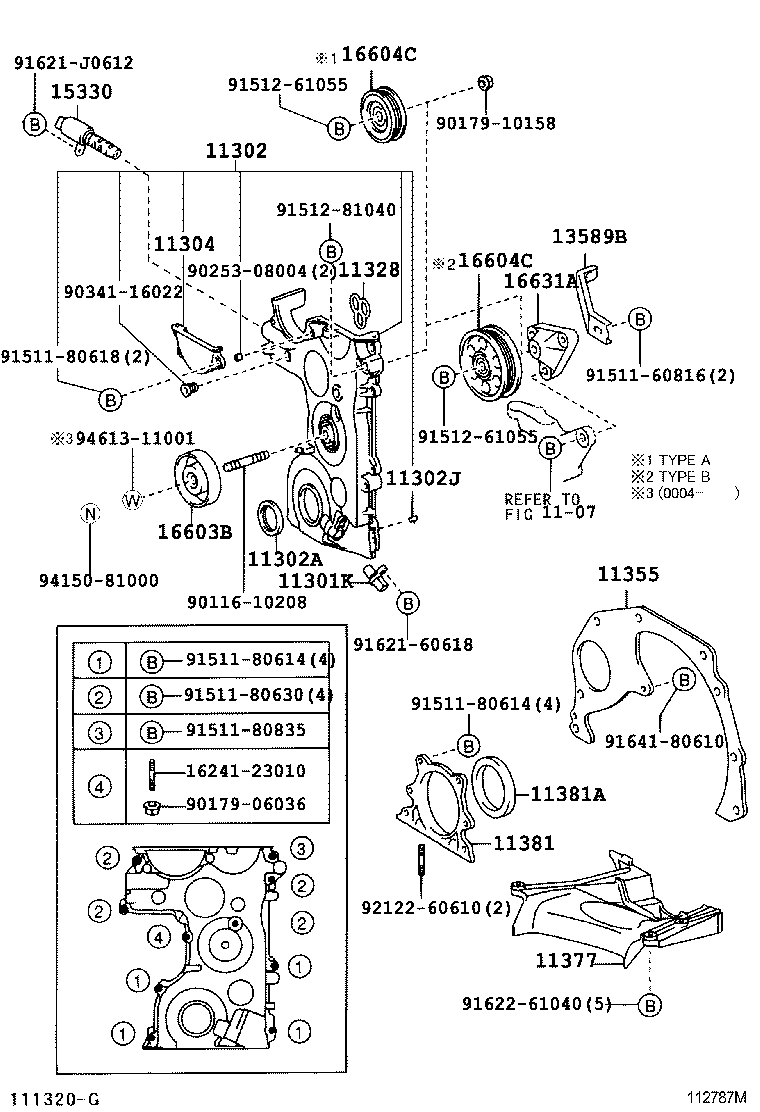

Click highlighted areas on diagram

diagram 1107 11301K 11302 11302A 11302J 11304 11328 11355 11377 11381 11381A 13589B 15330 1624123010 16603B 16604C 16604C 16631A 9011610208 9017906036 9017910158 9025308004 9034116022 9151160816 9151180614 9151180614 9151180618 9151180630 9151180835 9151261055 9151261055 9151281040 9162160618 91621J0612 9162261040 9164180610 9212260610 9415081000 9461311001
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05043

1SZFE..SCP10..JPP

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-23012

1SZFE..SCP10..JPP

 1
11310-23010

1SZFE..SCP10..JPP

 1
11310-23011

1SZFE..SCP10..JPP

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-35040

1SZFE..SCP10..JPP

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-06030

1SZFE..SCP10..JPP

 2
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-23010

1SZFE..SCP10..JPP

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-23020

1SZFE..SCP10..JPP

 1
11355 - PLATE, REAR END
11355-23010

1SZFE..SCP10..JPP

 1
11377 - STIFFENER, REAR END PLATE
11377-23011

1SZFE..SCP10..JPP

 1
11377-23010

1SZFE..SCP10..JPP

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-23010

1SZFE..SCP10..JPP

 1
11381A - SEAL, ENGINE REAR OIL
90311-73001

1SZFE..SCP10..JPP

 1
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
15330-23010

1SZFE..SCP10..JPP

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-23011

1SZFE..SCP10..JPP

 1
16603-23010

1SZFE..SCP10..JPP

 1
Common parts
16241-23010
90116-10208
90179-06036
90179-10158
90253-08004
90341-16022
91511-60816
91511-80614
91511-80618
91511-80630
91511-80835
91512-61055
91512-81040
91621-60618
91621-J0612
91622-61040
91641-80610
92122-60610
94150-81000
94613-11001
Linked diagrams
1107
