SCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Jan 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )JPP

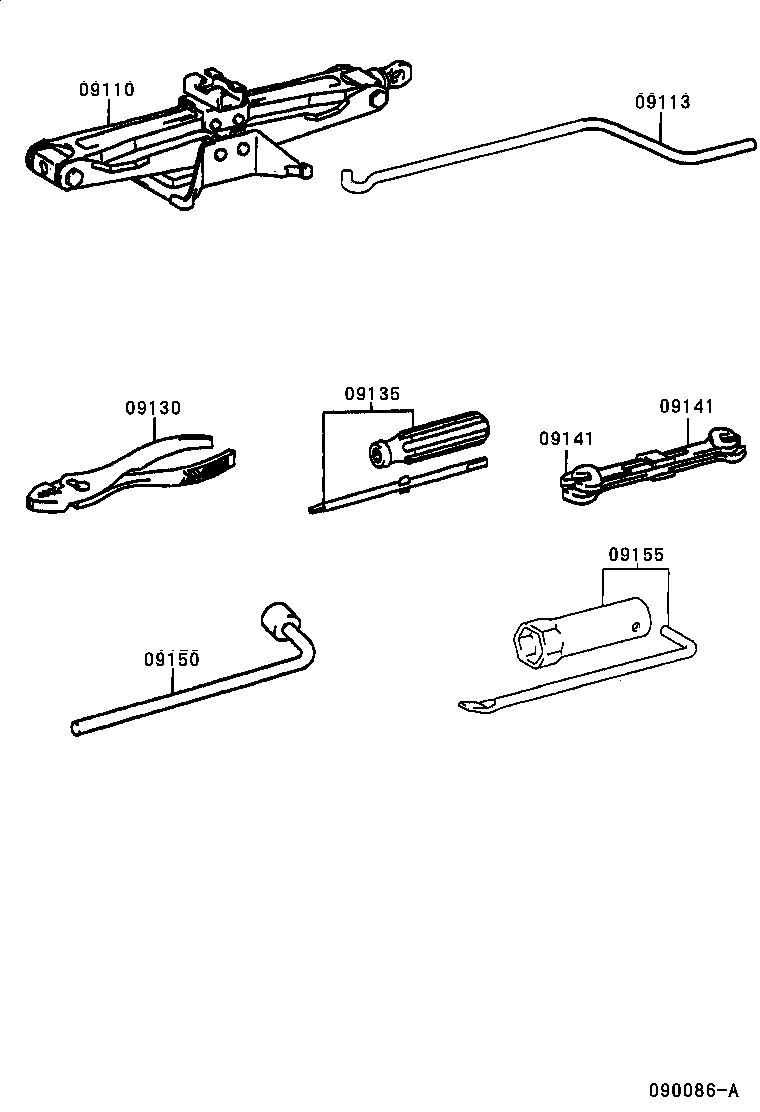

Click highlighted areas on diagram

diagram 09110 09113 09130 09135 09141 09141 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09111-52010

NCP1#,NLP10,SCP10..JPP

 1
09113 - HANDLE, JACK
09113-52010

NCP1#,NLP10,SCP10..JPP

 1
09130 - PLIERS
99913-11500

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
99913-11500

NCP10,SCP10..JPP

 1
09135 - DRIVER, SCREW
99915-10700

NCP10,SCP10..JPP

 1
99915-10700

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
09141 - SPANNER
99914-10810

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

8 X 10

 1
99914-10810

NCP10,SCP10..JPP

8 X 10

 1
99914-11214

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

12 X 14

 1
99914-11214

NCP10,SCP10..JPP

12 X 14

 1
09141 - SPANNER
99914-10810

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

8 X 10

 1
99914-10810

NCP10,SCP10..JPP

8 X 10

 1
99914-11214

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

12 X 14

 1
99914-11214

NCP10,SCP10..JPP

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

NCP1#,NLP10,SCP10..JPP

 1
09155 - WRENCH, SPARK PLUG
09155-74010

NCP10,SCP10..JPP

 1
09155-74010

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
