SCP10L-AGMBKW (1999)

Toyota Yaris (Jpp)

Production Nov 1999 - Dec 2002
Engine 1SZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

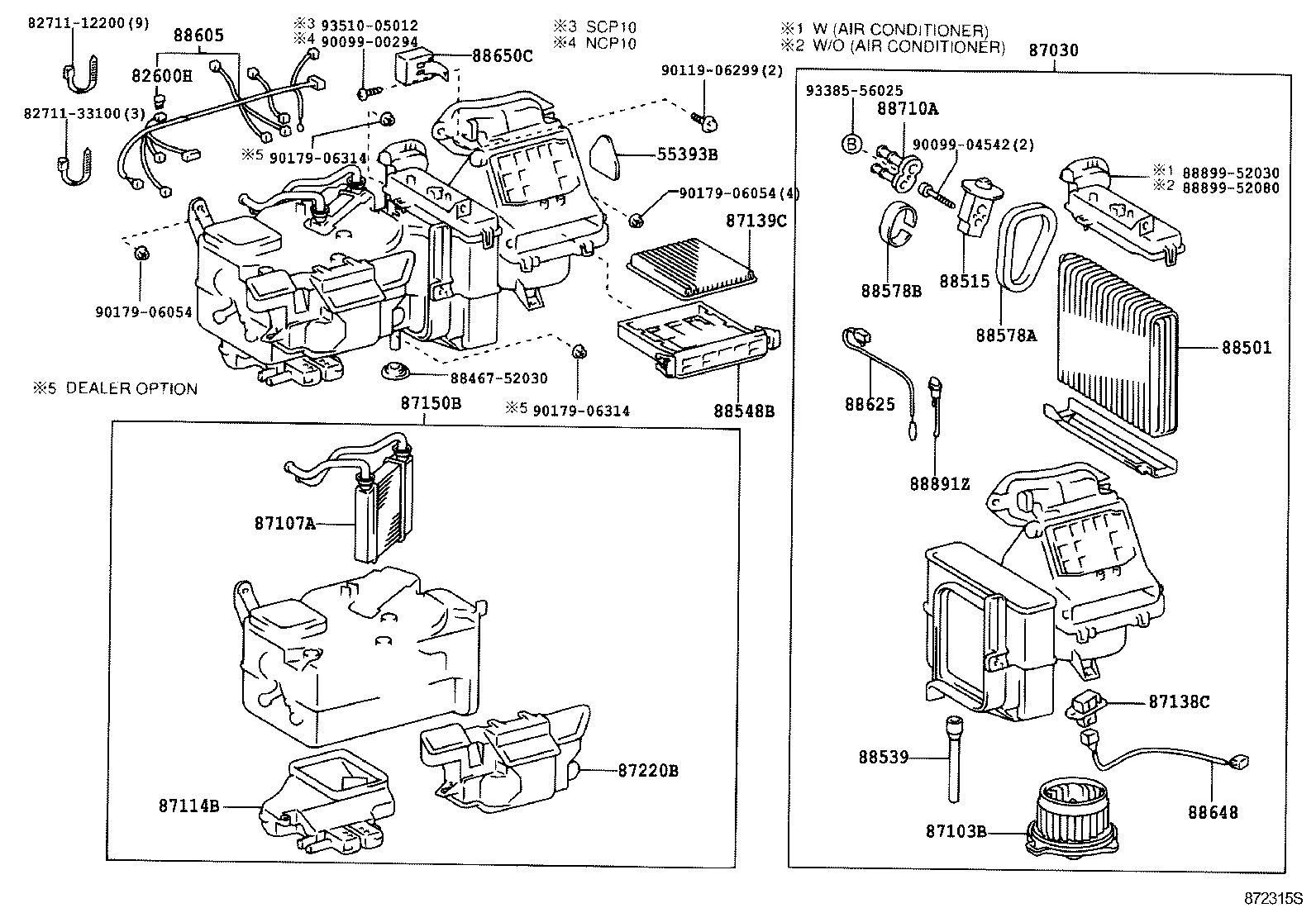

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD

Click highlighted areas on diagram

W(HEATER)

diagram 55393B 82600H 8271112200 8271133100 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88501 88515 88539 88548B 88578A 88578B 88605 88625 88648 88650C 88710A 88891Z 8889952030 8889952080 9009900294 9009904542 9011906299 9017906054 9017906054 9017906314 9017906314 9338556025 9351005012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

NCP10,SCP10..JPP

7.5A

 1
90982-09005

SCP10..JPP..TSGS

7.5A

 1
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52100

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87030-52080

SCP10..JPP..LHD

 1
87030-52070

SCP10..JPP..LHD

W(AIR CONDITIONER)

 1
87030-52171

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52040

SCP10..JPP..LHD

COLD SPEC

 1
87103-52020

SCP10..JPP..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
87114B - COVER, HEATER
87114-52050

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87114-52040

NCP1#,NLP10,SCP10..JPP..LHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP1#,NLP10,SCP10..JPP

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP1#,NLP10,SCP10..JPP

 1
87150B - RADIATOR ASSY, HEATER
87150-52080

SCP10..JPP..LHD

COLD SPEC

 1
87150-52180

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

COLD SPEC

 1
87150-52070

NCP1#,NLP10,SCP10..JPP..LHD

 1
87220B - DUCT ASSY, AIR
87220-52020

NCP10,SCP10..JPP..LHD

 1
87220-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
87220-52050

NCP10,NLP10,SCP10..JPP..LHD

W/O(COOLER)

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP1#,NLP10,SCP10..JPP

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP1#,NLP10,SCP10..JPP

 1
88548B - CASE, AIR FILTER
88548-52010

NCP1#,NLP10,SCP10..JPP

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-52130

NCP10,SCP10..JPP

 1
88605-52050

NCP10,SCP10..JPP

 1
88605-52130

SCP10..JPP..TSGS

 1
88605-52140

SCP10..JPP..TSGS

W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52020

NCP1#,NLP10,SCP10..JPP

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP1#,NLP10,SCP10..JPP

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP1#,SCP10..JPP

 1
88650-52050

NCP10,SCP10..JPP..LHD

W(BOOST VENTILATOR)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-52010

NCP13..JPP;NCP10,SCP10..JPP..LHD

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP1#,NLP10,SCP10..JPP

 1
Common parts
82711-12200
82711-33100
88467-52030
88899-52030
88899-52080
90099-00294
90099-04542
90119-06299
90179-06054
90179-06314
93385-56025
93510-05012

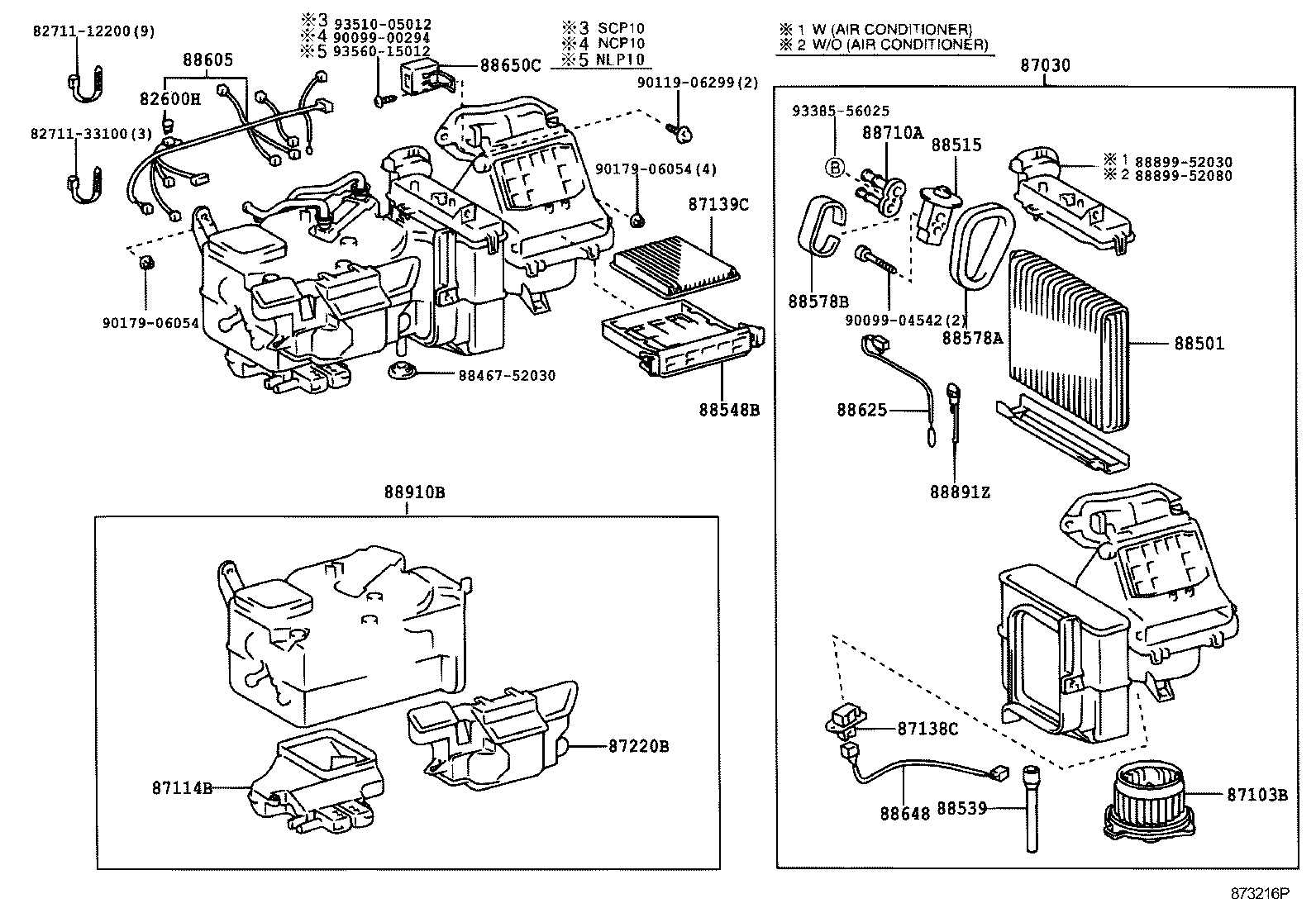

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD

Click highlighted areas on diagram

W(BOOST VENTILATOR)

diagram 82600H 8271112200 8271133100 87030 87103B 87114B 87138C 87139C 87220B 8846752030 88501 88515 88539 88548B 88578A 88578B 88605 88625 88648 88650C 88710A 88891Z 8889952030 8889952080 88910B 9009900294 9009904542 9011906299 9017906054 9017906054 9338556025 9351005012 9356015012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

NCP10,SCP10..JPP

7.5A

 1
90982-09005

SCP10..JPP..TSGS

7.5A

 1
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52100

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87030-52080

SCP10..JPP..LHD

 1
87030-52070

SCP10..JPP..LHD

W(AIR CONDITIONER)

 1
87030-52171

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52040

SCP10..JPP..LHD

COLD SPEC

 1
87103-52020

SCP10..JPP..LHD

 1
87114B - COVER, HEATER
87114-52050

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87114-52040

NCP1#,NLP10,SCP10..JPP..LHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP1#,NLP10,SCP10..JPP

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP1#,NLP10,SCP10..JPP

 1
87220B - DUCT ASSY, AIR
87220-52020

NCP10,SCP10..JPP..LHD

 1
87220-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
87220-52050

NCP10,NLP10,SCP10..JPP..LHD

W/O(COOLER)

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP1#,NLP10,SCP10..JPP

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP1#,NLP10,SCP10..JPP

 1
88548B - CASE, AIR FILTER
88548-52010

NCP1#,NLP10,SCP10..JPP

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-52130

NCP10,SCP10..JPP

 1
88605-52050

NCP10,SCP10..JPP

 1
88605-52130

SCP10..JPP..TSGS

 1
88605-52140

SCP10..JPP..TSGS

W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52020

NCP1#,NLP10,SCP10..JPP

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP1#,NLP10,SCP10..JPP

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP1#,SCP10..JPP

 1
88650-52050

NCP10,SCP10..JPP..LHD

W(BOOST VENTILATOR)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-52010

NCP13..JPP;NCP10,SCP10..JPP..LHD

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP1#,NLP10,SCP10..JPP

 1
88910B - VENTILATOR ASSY, BOOST
88910-52020

NCP10,NLP10,SCP10..JPP..LHD

 1
Common parts
82711-12200
82711-33100
88467-52030
88899-52030
88899-52080
90099-00294
90099-04542
90119-06299
90179-06054
93385-56025
93510-05012
93560-15012

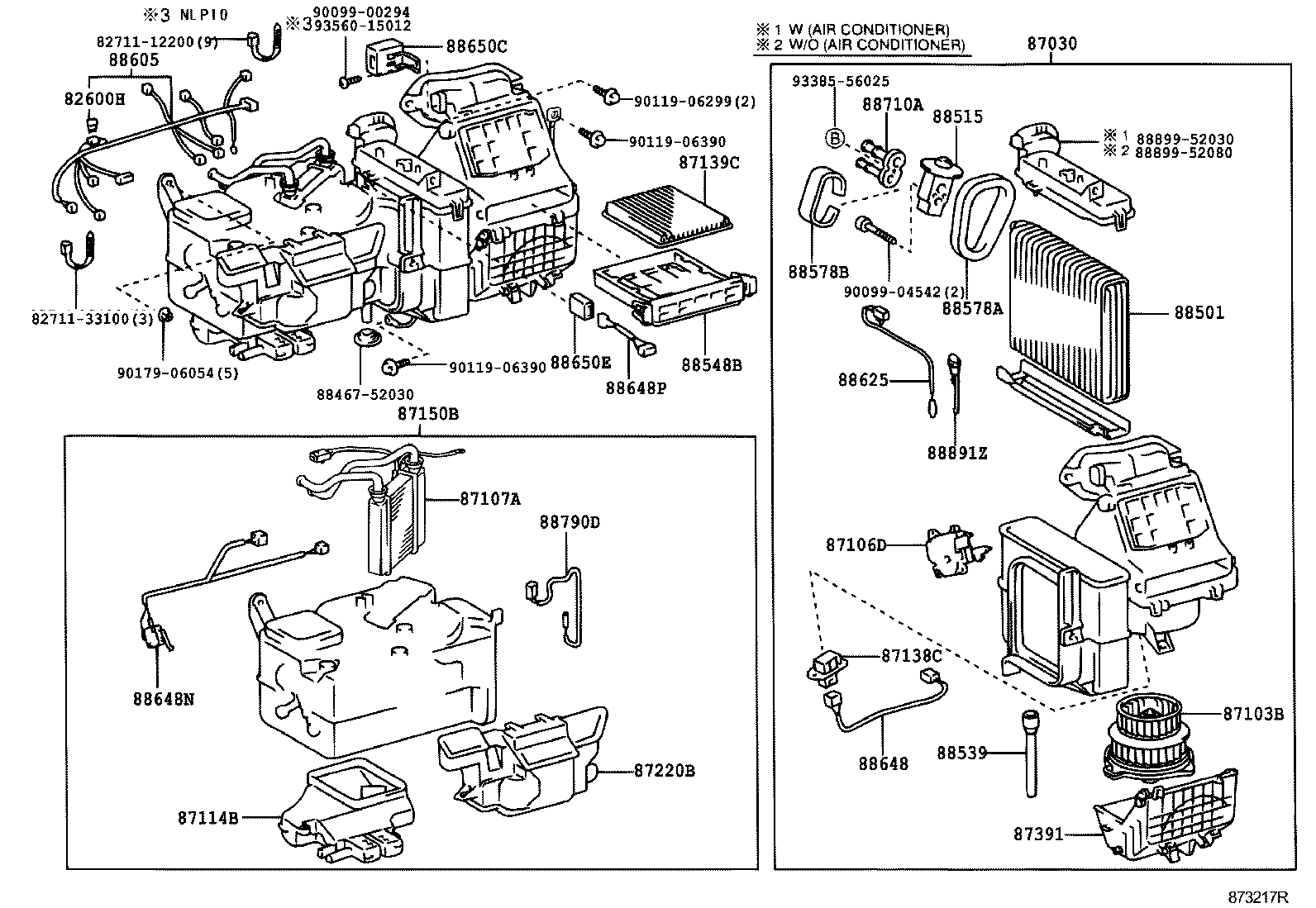

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD

Click highlighted areas on diagram

W(HEATER)---COLD SPEC

diagram 82600H 8271112200 8271133100 87030 87103B 87106D 87107A 87114B 87138C 87139C 87150B 87220B 87391 8846752030 88501 88515 88539 88548B 88578A 88578B 88605 88625 88648 88648N 88648P 88650C 88650E 88710A 88790D 88891Z 8889952030 8889952080 9009900294 9009904542 9011906299 9011906390 9011906390 9017906054 9338556025 9356015012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

NCP10,SCP10..JPP

7.5A

 1
90982-09005

SCP10..JPP..TSGS

7.5A

 1
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52100

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87030-52080

SCP10..JPP..LHD

 1
87030-52070

SCP10..JPP..LHD

W(AIR CONDITIONER)

 1
87030-52171

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52040

SCP10..JPP..LHD

COLD SPEC

 1
87103-52020

SCP10..JPP..LHD

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-52040

NCP10,SCP10..JPP..LHD..5F

 1
87106-52040

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
87114B - COVER, HEATER
87114-52050

NCP10,SCP10..JPP..LHD..5F

COLD SPEC

 1
87114-52040

NCP1#,NLP10,SCP10..JPP..LHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP1#,NLP10,SCP10..JPP

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP1#,NLP10,SCP10..JPP

 1
87150B - RADIATOR ASSY, HEATER
87150-52080

SCP10..JPP..LHD

COLD SPEC

 1
87150-52180

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

COLD SPEC

 1
87150-52070

NCP1#,NLP10,SCP10..JPP..LHD

 1
87220B - DUCT ASSY, AIR
87220-52020

NCP10,SCP10..JPP..LHD

 1
87220-52020

NCP1#,NLP10,SCP10..JPP..LHD

 1
87220-52050

NCP10,NLP10,SCP10..JPP..LHD

W/O(COOLER)

 1
87391 - COVER, BLOWER MOTOR
87391-52020

NCP10,SCP10..JPP..LHD..5F

 1
87391-52020

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP1#,NLP10,SCP10..JPP

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP1#,NLP10,SCP10..JPP

 1
88548B - CASE, AIR FILTER
88548-52010

NCP1#,NLP10,SCP10..JPP

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-52130

NCP10,SCP10..JPP

 1
88605-52050

NCP10,SCP10..JPP

 1
88605-52130

SCP10..JPP..TSGS

 1
88605-52140

SCP10..JPP..TSGS

W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52020

NCP1#,NLP10,SCP10..JPP

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP1#,NLP10,SCP10..JPP

 1
88648N - WIRING, COOLER, NO.2
88648-52010

NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

 1
88648-52010

NCP10,SCP10..JPP..LHD..5F

 1
88648P - WIRE,AIR CONDITIONER,NO.1
88648-52040

SCP10..JPP..LHD

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP1#,SCP10..JPP

 1
88650-52050

NCP10,SCP10..JPP..LHD

W(BOOST VENTILATOR)

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52030

SCP10..JPP..LHD

 1
88650-52150

NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-52010

NCP13..JPP;NCP10,SCP10..JPP..LHD

 1
88790D - THERMISTOR ASSY
88790-52010

NCP10,SCP10..JPP..LHD..5F

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP1#,NLP10,SCP10..JPP

 1
Common parts
82711-12200
82711-33100
88467-52030
88899-52030
88899-52080
90099-00294
90099-04542
90119-06299
90119-06390
90179-06054
93385-56025
93560-15012
