NSP130R-AHXNKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Jul 2014
Engine 1NRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74610A 74610S 74612 74612 74612 74612 9322915020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-52B40B0

KSP130,NSP130..RHD..R

LT.GRAY,TRIM1#

 1
74310-52B40B0

NSP130..RHD..CVFC

ENTRY GRADE (EURO),LT.GRAY,TRIM1#

 1
74310-52B40B0

NSP130..RHD..CVFC

SOUTH AFRICA SPEC&ENTRY GRADE (EURO),LT.GRAY,TRIM1#

 1
74310-52B50B0

KSP130,NSP130..RHD..ACTV

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-52B50B0

KSP130,NSP130..RHD

LT.GRAY,TRIM1#

 1
74320-52D70B0

NSP130

LT.GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-33040B1

KSP130,NSP130

LT.GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-33040B1

KSP130,NSP130

LT.GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-52020B1

KSP130,NSP130

LT.GRAY,TRIM1#

 2
74610S - GRIP ASSY, ASSIST
74610-52030B1

KSP130,NSP130

LT.GRAY,TRIM1#,W(COAT HOOK)

 1
74610-52020B1

KSP130,NSP130

LT.GRAY,TRIM1#,W/O(COAT HOOK)

 1
74612 - COVER, ASSIST GRIP
74612-52030B1

KSP130,NSP130

LT.GRAY,TRIM1#

 8
74612 - COVER, ASSIST GRIP
74612-52030B1

KSP130,NSP130

LT.GRAY,TRIM1#

 8
74612 - COVER, ASSIST GRIP
74612-52030B1

KSP130,NSP130

LT.GRAY,TRIM1#

 8
74612 - COVER, ASSIST GRIP
74612-52030B1

KSP130,NSP130

LT.GRAY,TRIM1#

 8
Common parts
93229-15020

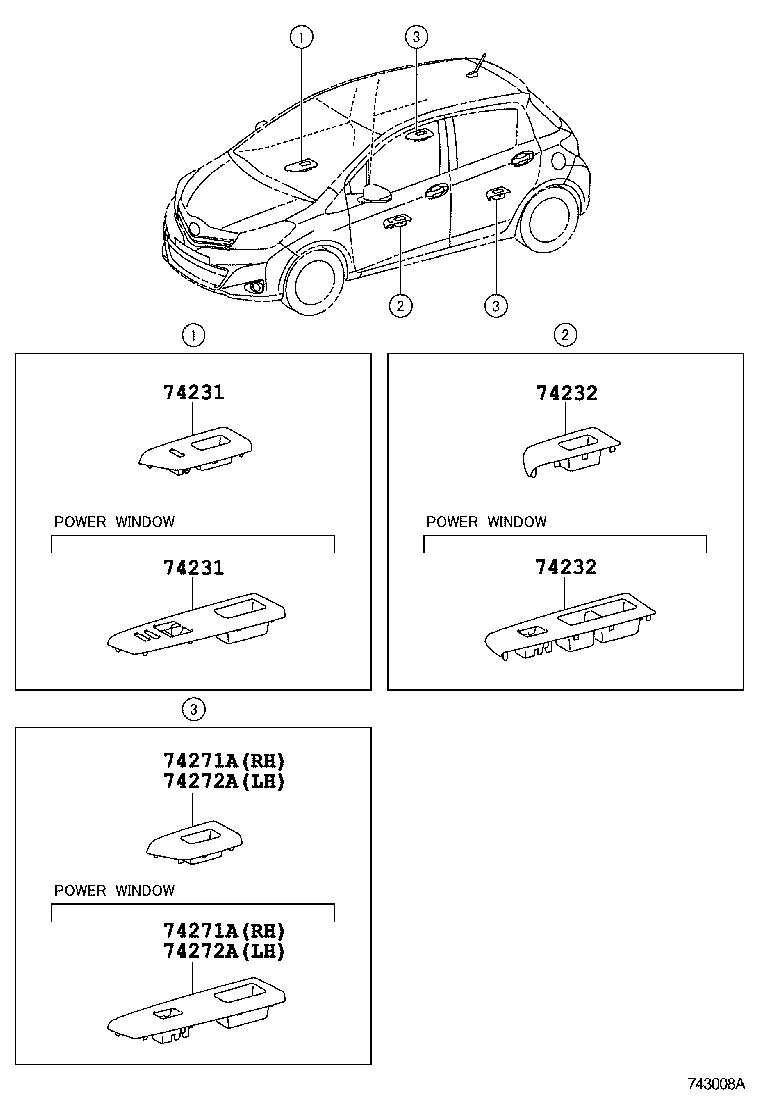

ILLUST NO. 1 OF 2(1108- )RHD

Click highlighted areas on diagram

ARMREST

diagram 74231 74231 74231 74231 74232 74232 74232 74232 74271A 74271A 74271A 74271A 74272A 74272A 74272A 74272A
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52670C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74231-52640C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74231-52630C0

NSP130

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52670C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74231-52640C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74231-52630C0

NSP130

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52670C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74231-52640C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74231-52630C0

NSP130

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52670C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74231-52640C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74231-52630C0

NSP130

BLACK,TRIM1#

 1
74231-52630C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52590C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74232-52570C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52590C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74232-52570C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52590C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74232-52570C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-52590C0

KSP130,NSP130..RHD..R

POWER WINDOW-WITHOUT,BLACK,TRIM1#

 1
74232-52570C0

KSP130,NSP130..RHD

BLACK,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52230C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74271-52230C0

NSP130

BLACK,TRIM1#

 1
74271-52240C0

KSP130,NSP130

BLACK,TRIM1#

 1
74271-52230C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52230C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74271-52230C0

NSP130

BLACK,TRIM1#

 1
74271-52240C0

KSP130,NSP130

BLACK,TRIM1#

 1
74271-52230C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52230C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74271-52230C0

NSP130

BLACK,TRIM1#

 1
74271-52240C0

KSP130,NSP130

BLACK,TRIM1#

 1
74271-52230C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-52230C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74271-52230C0

NSP130

BLACK,TRIM1#

 1
74271-52240C0

KSP130,NSP130

BLACK,TRIM1#

 1
74271-52230C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-52220C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74272-52220C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74272-52230C0

KSP130,NSP130

BLACK,TRIM1#

 1
74272-52220C0

NSP130

BLACK,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-52220C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74272-52220C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74272-52230C0

KSP130,NSP130

BLACK,TRIM1#

 1
74272-52220C0

NSP130

BLACK,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-52220C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74272-52220C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74272-52230C0

KSP130,NSP130

BLACK,TRIM1#

 1
74272-52220C0

NSP130

BLACK,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-52220C0

NSP130..RHD..R

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

 1
74272-52220C0

NSP130..RHD..ACTV

HONG KONG SPEC,BLACK,TRIM1#

 1
74272-52230C0

KSP130,NSP130

BLACK,TRIM1#

 1
74272-52220C0

NSP130

BLACK,TRIM1#

 1
