NSP130R-AHXNKW (2011)
Toyota Yaris (Jpp)

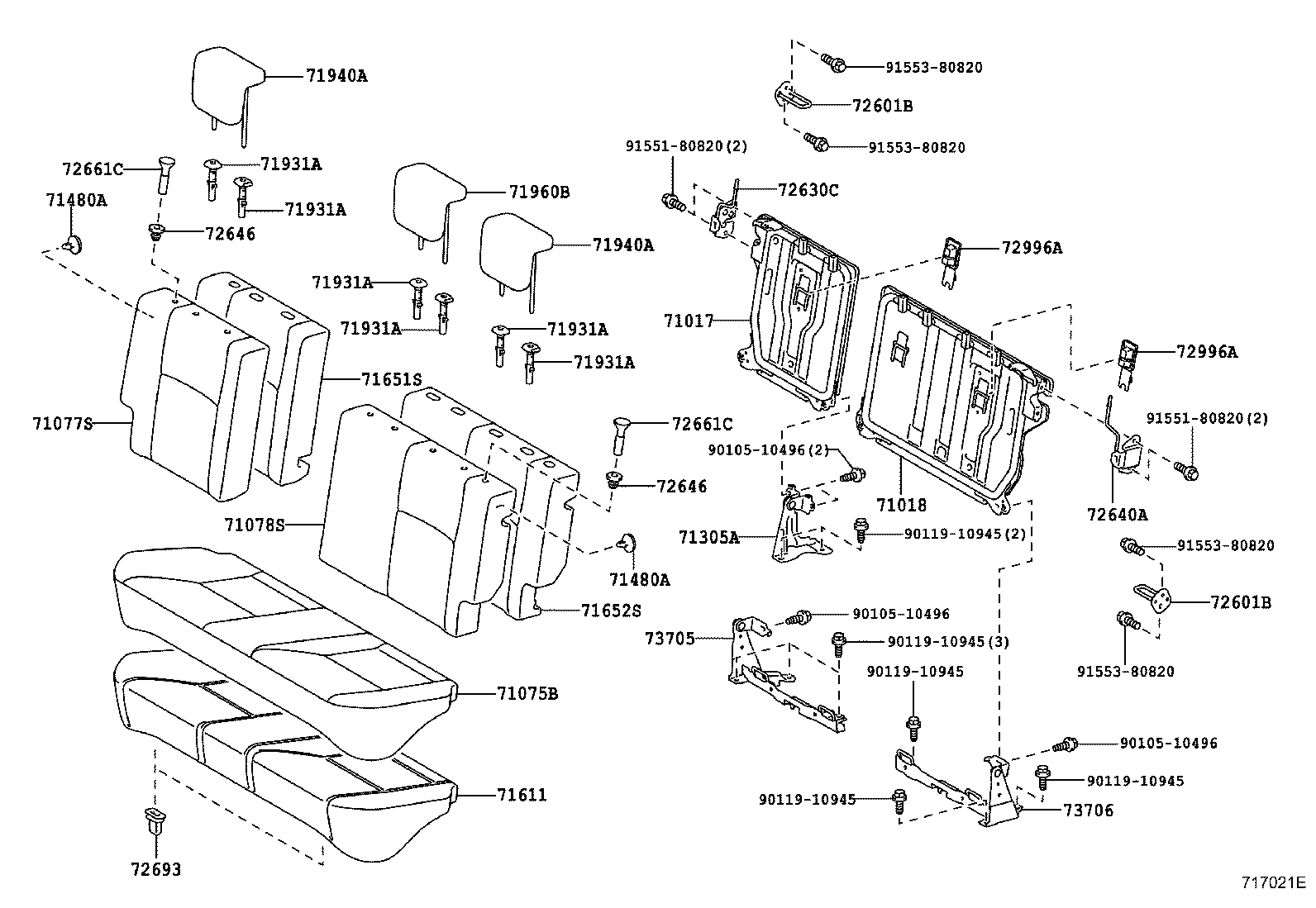

(1108-1303)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52620 |
KSP130,NSP130 |
1 | ||
| 71017-52620 |
KSP130,NSP130 |
1 | ||
| 71017-52621 |
NSP130 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52500 |
KSP130,NSP130 |
1 | ||
| 71018-52510 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B) |
1 | ||
| 71018-52510 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B) |
1 | ||
| 71018-52510 |
NSP130 |
1 | ||
| 71018-52511 |
NSP130 |
1 | ||
| 71018-52500 |
KSP130,NSP130 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52G50C0 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),MD.GRAY,TRIM1# |
1 | ||
| 71075-52G60C0 |
KSP130,NSP130..ACTV MD.GRAY,TRIM1# |
1 | ||
| 71075-52G50C0 |
KSP130,NSP130..R MD.GRAY,TRIM1# |
1 | ||
| 71075-52G70B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71075-52G70B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71075-52G50C0 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),MD.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52G80C1 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 71077-52G70C1 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),BLACK,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52G70C1 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),BLACK,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52G70C1 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52F60C1 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),BLACK,TRIM1# |
1 | ||
| 71078-52F60C1 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 71078-52F60C1 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),BLACK,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71078-52F70C1 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52100 |
KSP130,NSP130 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09050 |
NSP130 |
11 | ||
| 90467-09050 |
NSP130..RHD..CVFC |
11 | ||
| 90467-09050 |
KSP130,NSP130 |
13 | ||
| 90467-09050 |
NSP130 |
11 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09050 |
NSP130 |
11 | ||
| 90467-09050 |
NSP130..RHD..CVFC |
11 | ||
| 90467-09050 |
KSP130,NSP130 |
13 | ||
| 90467-09050 |
NSP130 |
11 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-52450 |
KSP130,NSP130 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52660 |
NSP130 |
1 | ||
| 71651-52660 |
NSP130 |
1 | ||
| 71651-52660 |
NSP130..RHD..CVFC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52560 |
NSP130..RHD..CVFC |
1 | ||
| 71652-52560 |
NSP130 |
1 | ||
| 71652-52560 |
NSP130 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52C50C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52C50C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52580B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 71960-52560C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52220 |
KSP130,NSP130 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52220 |
KSP130,NSP130 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52140 |
KSP130,NSP130 |
1 | ||
| 72630-52141 |
KSP130,NSP130 |
1 | ||
| 72630-52141 |
NSP130 PNC 72661C=TYPE A |
1 | ||
| 72630-52170 |
NSP130 PNC 72661C=TYPE B |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52131 |
NSP130 PNC 72661C=TYPE A |
1 | ||
| 72640-52131 |
KSP130,NSP130 |
1 | ||
| 72640-52170 |
NSP130 PNC 72661C=TYPE B |
1 | ||
| 72640-52130 |
KSP130,NSP130 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE A |
2 | ||
| 72646-33010C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-52050C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE B |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE A |
2 | ||
| 72646-33010C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-52050C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE B |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-52050C0 |
NSP130 BLACK,TRIM1#,TYPE B:REFER ILLUST. |
2 | ||
| 72661-32030C0 |
NSP130 BLACK,TRIM1#,TYPE A:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-52050C0 |
NSP130 BLACK,TRIM1#,TYPE B:REFER ILLUST. |
2 | ||
| 72661-32030C0 |
NSP130 BLACK,TRIM1#,TYPE A:REFER ILLUST. |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
KSP130,NSP130 |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52180 |
KSP130,NSP130 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-52020 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 90105-10496 | ||||
| 90119-10945 | ||||
| 91551-80820 | ||||
| 91553-80820 | ||||

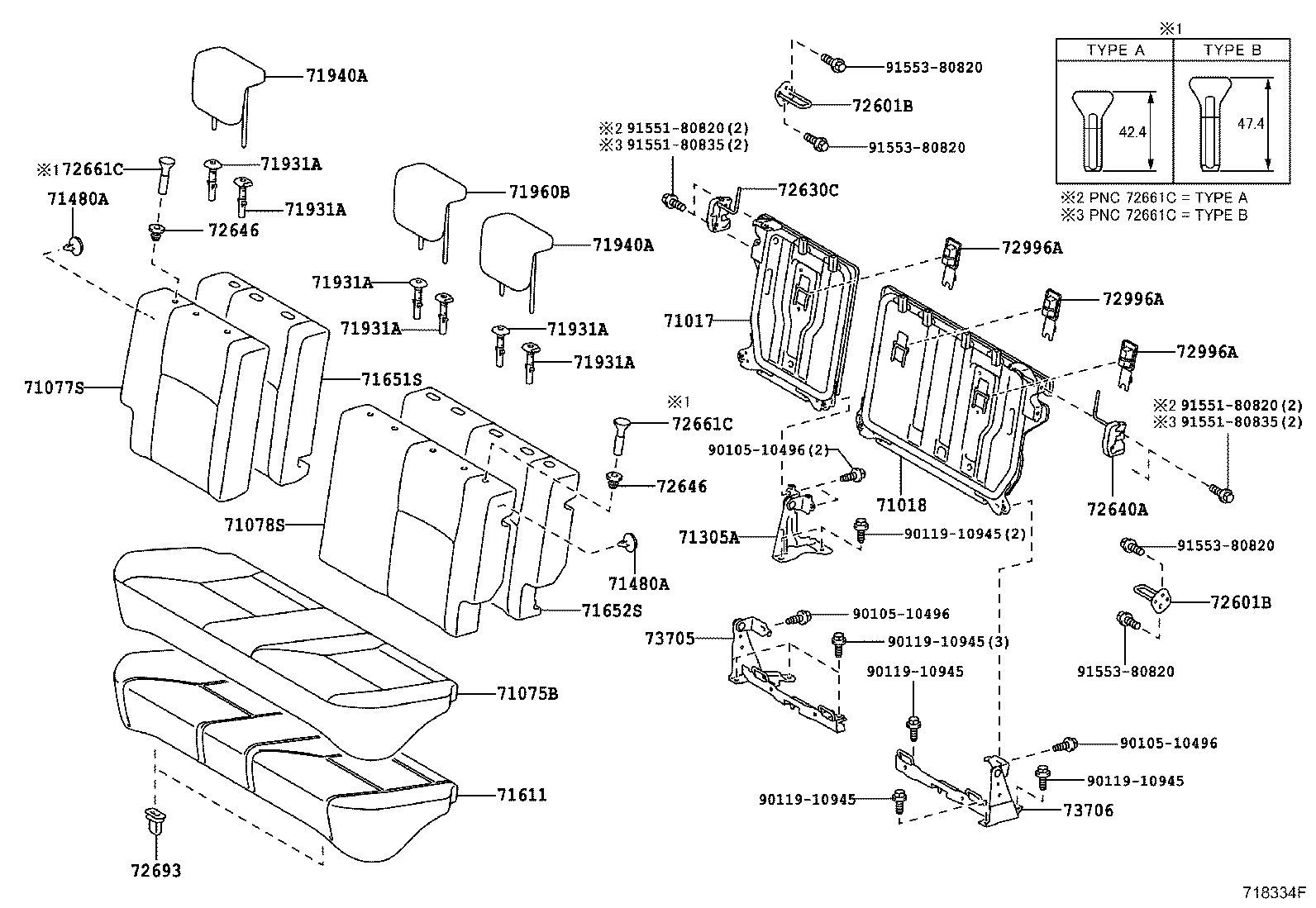

(1303- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52620 |
KSP130,NSP130 |
1 | ||
| 71017-52620 |
KSP130,NSP130 |
1 | ||
| 71017-52621 |
NSP130 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52500 |
KSP130,NSP130 |
1 | ||
| 71018-52510 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B) |
1 | ||
| 71018-52510 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B) |
1 | ||
| 71018-52510 |
NSP130 |
1 | ||
| 71018-52511 |
NSP130 |
1 | ||
| 71018-52500 |
KSP130,NSP130 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-52G50C0 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),MD.GRAY,TRIM1# |
1 | ||
| 71075-52G60C0 |
KSP130,NSP130..ACTV MD.GRAY,TRIM1# |
1 | ||
| 71075-52G50C0 |
KSP130,NSP130..R MD.GRAY,TRIM1# |
1 | ||
| 71075-52G70B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71075-52G70B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71075-52G50C0 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),MD.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-52G80C1 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 71077-52G70C1 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),BLACK,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52G70C1 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),BLACK,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71077-52J00B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71077-52G70C1 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-52F60C1 |
NSP130..RHD..CVFC ENTRY GRADE (EURO),BLACK,TRIM1# |
1 | ||
| 71078-52F60C1 |
KSP130,NSP130..R BLACK,TRIM1# |
1 | ||
| 71078-52F60C1 |
NSP130..RHD..CVFC SEAT COVER MATERIAL-FABLIC(R GRADE),BLACK,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),DK. GRAY,TRIM1# |
1 | ||
| 71078-52F70C1 |
KSP130,NSP130..ACTV BLACK,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71078-52G30B3 |
NSP130 DK. GRAY,TRIM1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-52100 |
KSP130,NSP130 |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09050 |
NSP130 |
11 | ||
| 90467-09050 |
NSP130..RHD..CVFC |
11 | ||
| 90467-09050 |
KSP130,NSP130 |
13 | ||
| 90467-09050 |
NSP130 |
11 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-09050 |
NSP130 |
11 | ||
| 90467-09050 |
NSP130..RHD..CVFC |
11 | ||
| 90467-09050 |
KSP130,NSP130 |
13 | ||
| 90467-09050 |
NSP130 |
11 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-52450 |
KSP130,NSP130 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-52660 |
NSP130 |
1 | ||
| 71651-52660 |
NSP130 |
1 | ||
| 71651-52660 |
NSP130..RHD..CVFC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-52560 |
NSP130..RHD..CVFC |
1 | ||
| 71652-52560 |
NSP130 |
1 | ||
| 71652-52560 |
NSP130 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130..RHD..CVFC W(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130 W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71970-52030C0 |
NSP130..RHD..CVFC W/O(LOCK),BLACK,TRIM1# |
3 | ||
| 71990-52010C0 |
NSP130 W(LOCK),BLACK,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52C50C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52C50C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71940-52D00B1 |
NSP130 GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52580B1 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),GRAY,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 71960-52560C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 71960-52580B1 |
NSP130 GRAY,TRIM1# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52220 |
KSP130,NSP130 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-52220 |
KSP130,NSP130 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52140 |
KSP130,NSP130 |
1 | ||
| 72630-52141 |
KSP130,NSP130 |
1 | ||
| 72630-52141 |
NSP130 PNC 72661C=TYPE A |
1 | ||
| 72630-52170 |
NSP130 PNC 72661C=TYPE B |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52131 |
NSP130 PNC 72661C=TYPE A |
1 | ||
| 72640-52131 |
KSP130,NSP130 |
1 | ||
| 72640-52170 |
NSP130 PNC 72661C=TYPE B |
1 | ||
| 72640-52130 |
KSP130,NSP130 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE A |
2 | ||
| 72646-33010C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-52050C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE B |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE A |
2 | ||
| 72646-33010C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72646-52050C0 |
NSP130 BLACK,TRIM1#,PNC 72661C=TYPE B |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-52050C0 |
NSP130 BLACK,TRIM1#,TYPE B:REFER ILLUST. |
2 | ||
| 72661-32030C0 |
NSP130 BLACK,TRIM1#,TYPE A:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72661-52050C0 |
NSP130 BLACK,TRIM1#,TYPE B:REFER ILLUST. |
2 | ||
| 72661-32030C0 |
NSP130 BLACK,TRIM1#,TYPE A:REFER ILLUST. |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
KSP130,NSP130 |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320C0 |
NSP130..RHD..CVFC HONG KONG SPEC&SEAT COVER MATERIAL-"SMILE EDITION"*(A)OR(B),BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
KSP130,NSP130 BLACK,TRIM1# |
2 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 72996-12320C0 |
NSP130 BLACK,TRIM1# |
3 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52180 |
KSP130,NSP130 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-52020 |
KSP130,NSP130 |
1 | ||
| Common parts | ||||
| 90105-10496 | ||||
| 90119-10945 | ||||
| 91551-80820 | ||||
| 91551-80835 | ||||
| 91553-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
