NSP130R-AHFNKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

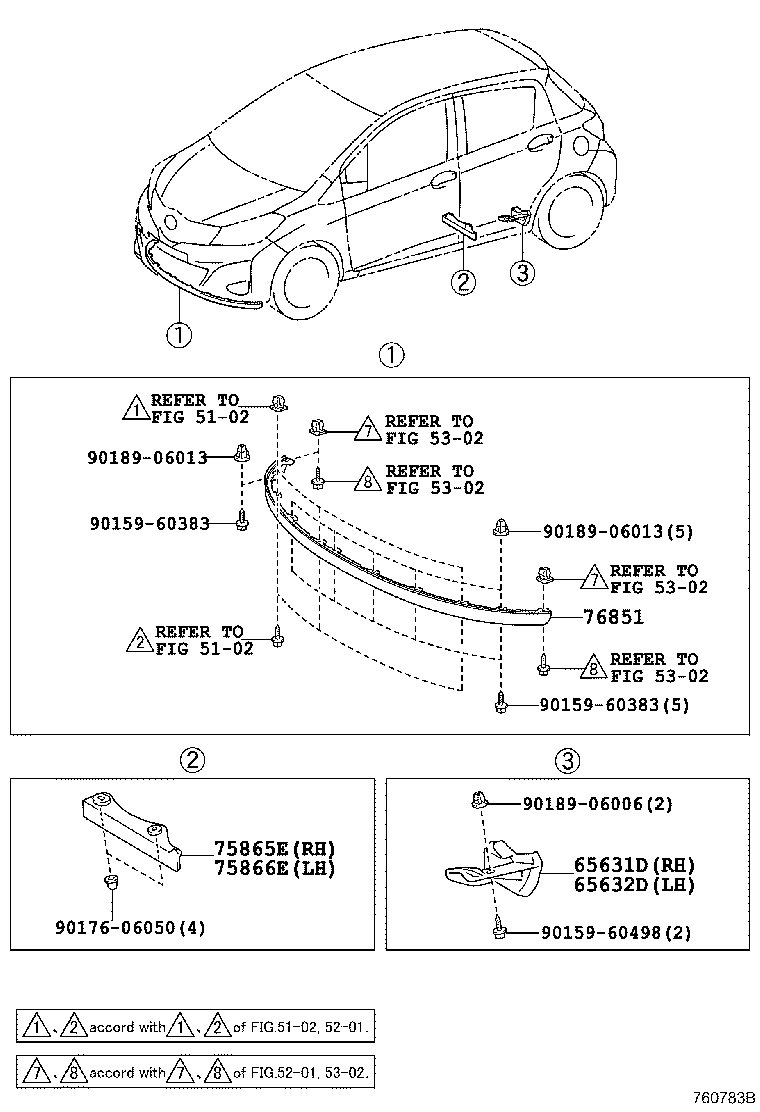

Click highlighted areas on diagram

diagram 5102 5102 5302 5302 5302 5302 65631D 65632D 75865E 75866E 76851 9015960383 9015960383 9015960498 9017606050 9018906006 9018906013 9018906013
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-52120

KSP130,NSP130

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-52120

KSP130,NSP130

 1
75865E - PROTECTOR, ROCKER PANEL MOULDING, RH
75865-52031

KSP130,NSP130

 1
75865-52031

KSP130,NSP130

AIR SPATS-WITHOUT

 1
75866E - PROTECTOR, ROCKER PANEL MOULDING, LH
75866-52031

KSP130,NSP130

 1
75866-52031

KSP130,NSP130

AIR SPATS-WITHOUT

 1
76851 - COVER, FRONT SPOILER
76851-52180

KSP130,NSP130

 1
Common parts
90159-60383
90159-60498
90176-06050
90189-06006
90189-06013
Linked diagrams
5102
5302
