NSP130R-AHFNKW (2011)
Toyota Yaris (Jpp)
(1108- )1NRFE
12V 1.0KW,1.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-47190 |
1NRFE..NSP130 12V 1.6KW |
1 | ||
| 28100-47170 |
1NRFE..NSP130 12V 1.0KW,WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-47110 |
1NRFE..NSP130 |
1 | ||
| 28140-21070 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28180-47110 |
1NRFE..NSP130 |
1 | ||
| 28160-21070 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-47190 |
1NRFE..NSP130 |
1 | ||
| 28226-21080 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-47170 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||

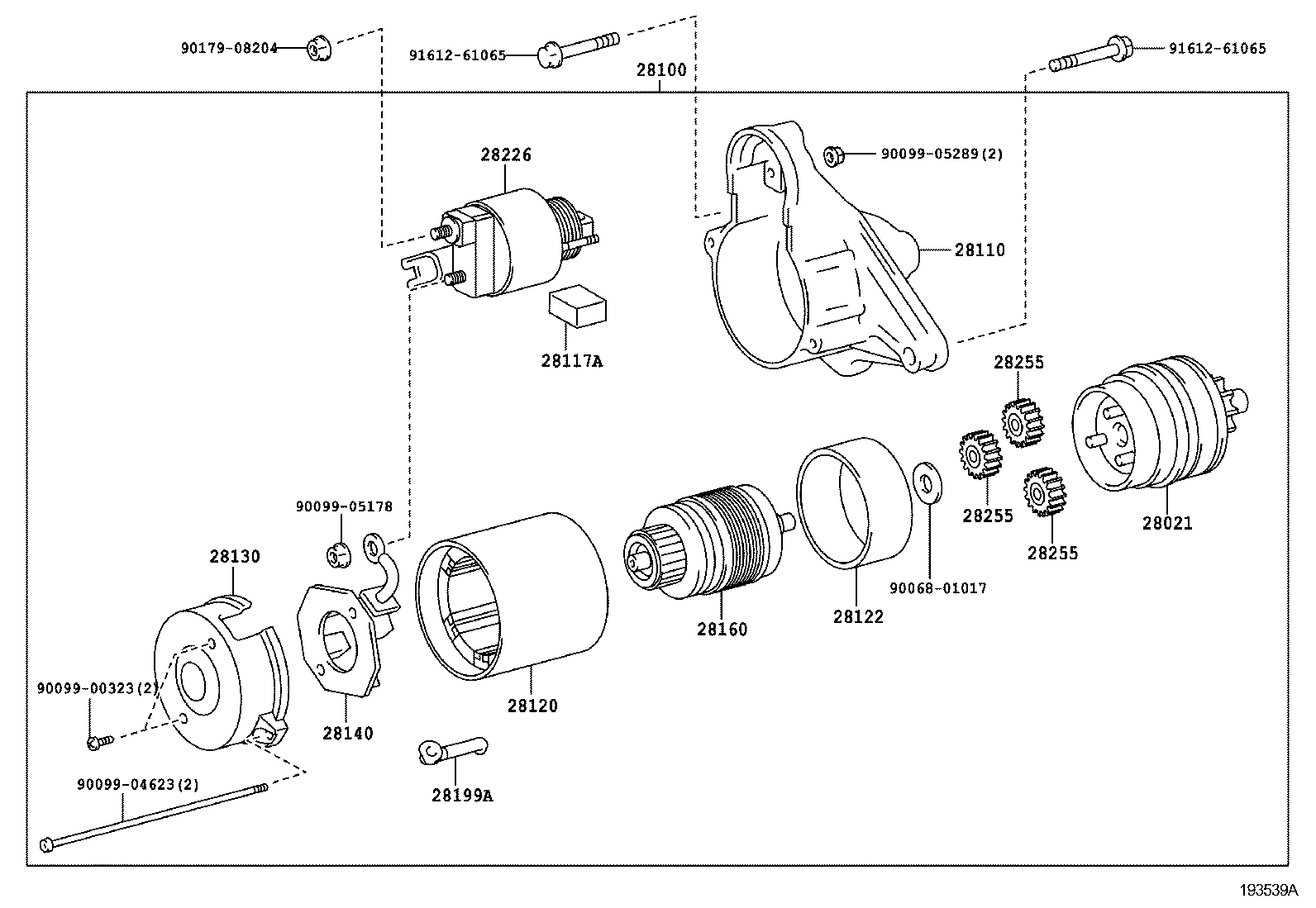

(1108- )1NRFE
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-47110 |
1NRFE..NSP130 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-47190 |
1NRFE..NSP130 12V 1.6KW |
1 | ||
| 28100-47170 |
1NRFE..NSP130 12V 1.0KW,WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-47191 |
1NRFE..NSP130 |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-47110 |
1NRFE..NSP130 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47110 |
1NRFE..NSP130 |
1 | ||
| 28122 - COLLAR, SPACE | ||||
| 28122-47110 |
1NRFE..NSP130 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-47110 |
1NRFE..NSP130 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-47110 |
1NRFE..NSP130 |
1 | ||
| 28140-21070 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28180-47110 |
1NRFE..NSP130 |
1 | ||
| 28160-21070 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-31090 |
1NRFE..NSP130 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-47190 |
1NRFE..NSP130 |
1 | ||
| 28226-21080 |
1NRFE..NSP130 WITHOUT(STOP & START SYSTEM) |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP130 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP130 |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NSP130 |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-00323 | ||||
| 90099-04623 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
