NSP130L-AHFRKW (2011)

Toyota Yaris (Jpp)

Production Aug 2011 - Aug 2012
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )LHD

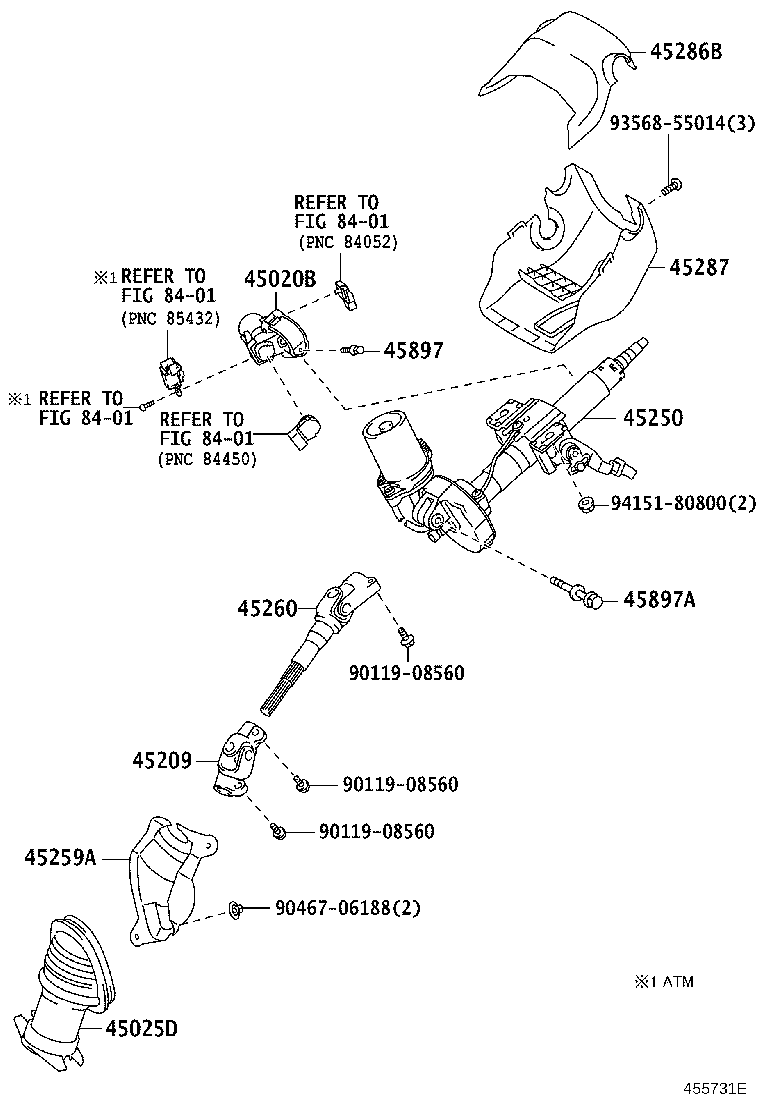

Click highlighted areas on diagram

diagram 45020B 45025D 45209 45250 45259A 45260 45286B 45287 45897 45897A 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046706188 9356855014 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-52110

KSP130,NSP130..MTM

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52140

KSP130,NSP130

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52050

KSP130,NSP130

 1
45250 - COLUMN ASSY, STEERING
45250-52754

KSP130,NSP130..LHD

 1
45250-52753

KSP130,NSP130..LHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-52020

KSP130,NSP130..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52261

KSP130,NSP130..LHD

 1
45286B - COVER, STEERING COLUMN, UPR
45286-52160C0

KSP130,NSP130

BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-52200C0

KSP130,NSP130

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KSP130,NSP130

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

KSP130,NSP130

 1
Common parts
90119-08560
90467-06188
93568-55014
94151-80800
Linked diagrams
8401
