NSP130L-AHFNKW (2011)
Toyota Yaris (Jpp)

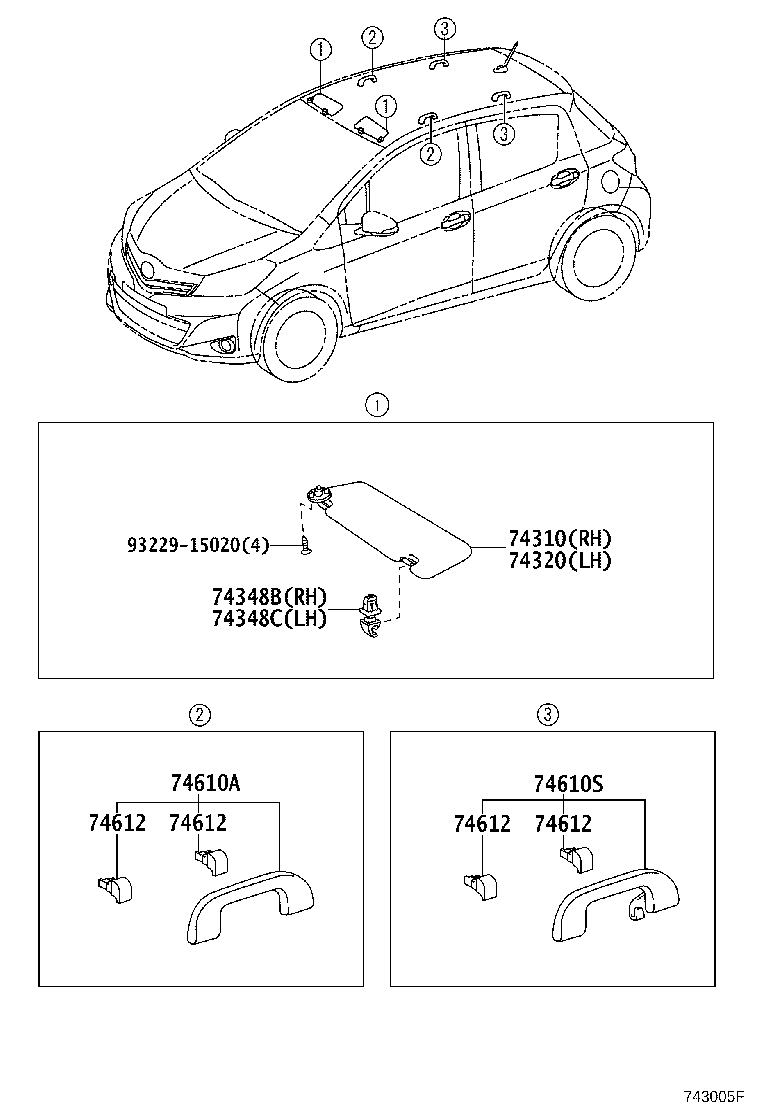

ILLUST NO. 2 OF 2(1108- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52C20B0 |
KSP130,NSP130..LHD AIR BAG CAUTION LABEL-*EGPRBT,LT.GRAY,TRIM1# |
1 | ||
| 74310-52C40B0 |
KSP130,NSP130..LHD AIR BAG CAUTION LABEL-*RPCSH,LT.GRAY,TRIM1# |
1 | ||
| 74310-52C50B0 |
KSP130,NSP130..LHD AIR BAG CAUTION LABEL-*LELDFS,LT.GRAY,TRIM1# |
1 | ||
| 74310-52C60B0 |
KSP130,NSP130..LHD LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52B30B0 |
KSP130,NSP130..LHD..R LT.GRAY,TRIM1# |
1 | ||
| 74320-52B40B0 |
KSP130,NSP130..LHD..ACTV LT.GRAY,TRIM1# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-33040B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52030B1 |
KSP130,NSP130 LT.GRAY,TRIM1#,W(COAT HOOK) |
1 | ||
| 74610-52020B1 |
KSP130,NSP130 LT.GRAY,TRIM1#,W/O(COAT HOOK) |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
KSP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 93229-15020 | ||||

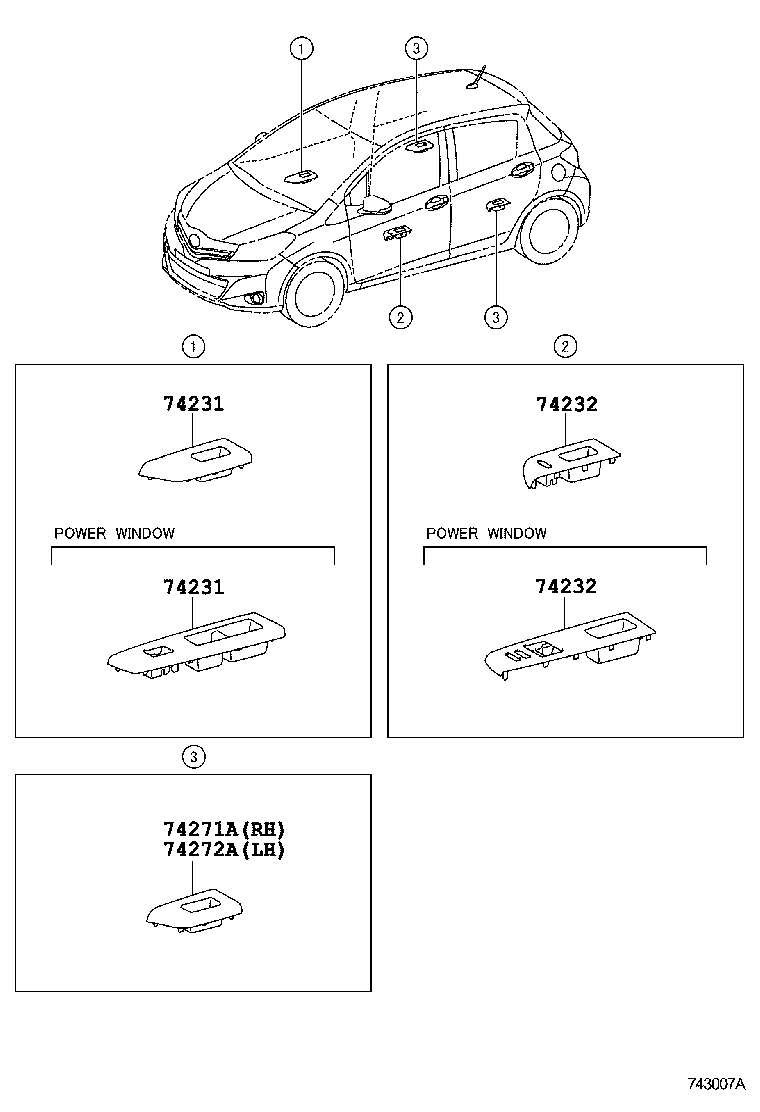

ILLUST NO. 1 OF 2(1108- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52660C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231-52680C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52660C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231-52680C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52660C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231-52680C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-52660C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74231-52680C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52580C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74232-52560C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52580C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74232-52560C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52580C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74232-52560C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-52580C0 |
KSP130,NSP130..LHD..R POWER WINDOW-WITHOUT,BLACK,TRIM1# |
1 | ||
| 74232-52560C0 |
KSP130,NSP130..LHD BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52240C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-52240C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52230C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-52230C0 |
KSP130,NSP130 BLACK,TRIM1# |
1 | ||
