NLP10R-AHMNXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Dec 2002
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)JPP

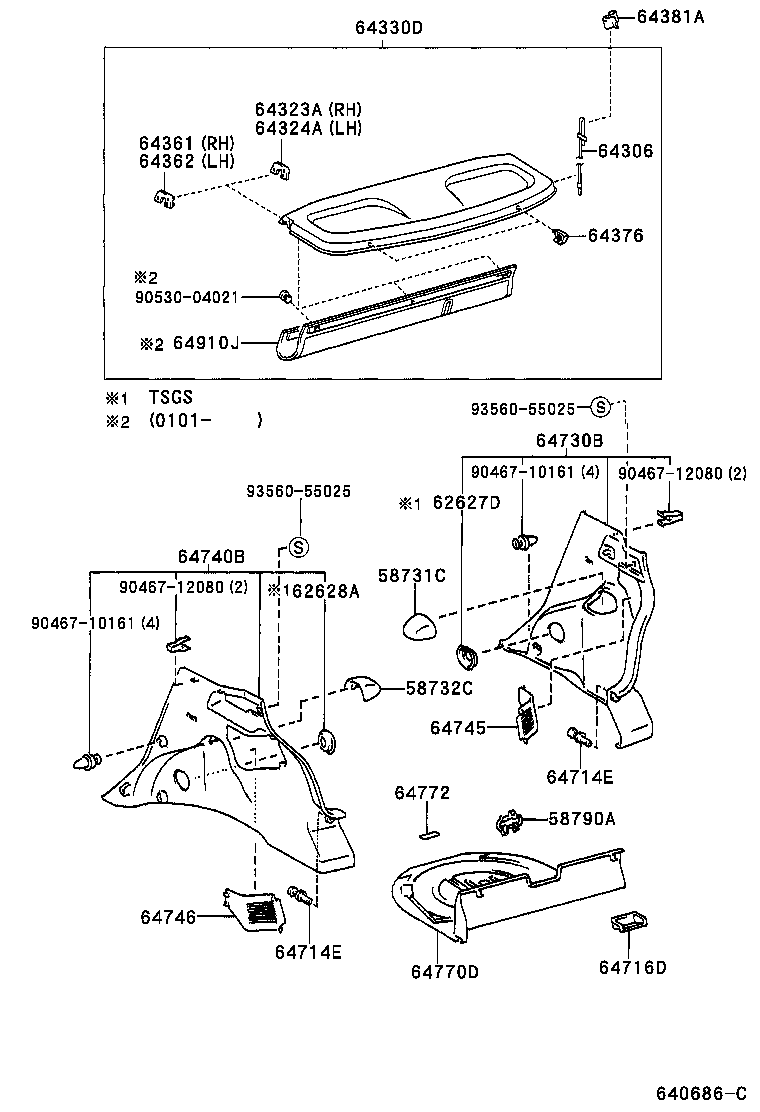

Click highlighted areas on diagram

diagram 58731C 58732C 58790A 62627D 62628A 64306 64323A 64324A 64330D 64361 64362 64376 64381A 64714E 64714E 64716D 64730B 64740B 64745 64746 64770D 64772 64910J 9046710161 9046710161 9046712080 9046712080 9053004021 9356055025 9356055025
Part # Description Qty Price
58731C - CAP, REAR ABSORBER
58731-52010H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
58731-52010B0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-52010H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
58732-52010B0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
58790A - CARRIER ASSY, JACK
58790-52010

NCP1#,NLP10,SCP10..JPP

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-52010

NCP1#,NLP10,SCP10..JPP

 2
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-52010

NCP1#,NLP10,SCP10..JPP

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64323-52010

NCP1#,NLP10,SCP10..JPP

 1
64361 - HINGE, PACKAGE TRAY TRIM, RH
64361-52010

NCP1#,NLP10,SCP10..JPP

 1
64362 - HINGE, PACKAGE TRAY TRIM, LH
64362-52010

NCP1#,NLP10,SCP10..JPP

 1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-52010

NCP1#,NLP10,SCP10..JPP

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-06017P0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 2
90467-06017H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-06017P0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 2
90467-06017H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 2
64716D - COVER, DECK TRIM, REAR
64716-52010

NCP1#,NLP10,SCP10..JPP

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52010B0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
64745-52010H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52010H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
64746-52010B0

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
64772 - PAD, SPARE WHEEL COVER
64772-52010

NCP1#,NLP10,SCP10..JPP

 2
Common parts
90467-10161
90467-12080
90530-04021
93560-55025
