NLP10R-AGMRXW (2001)
Toyota Yaris (Jpp)

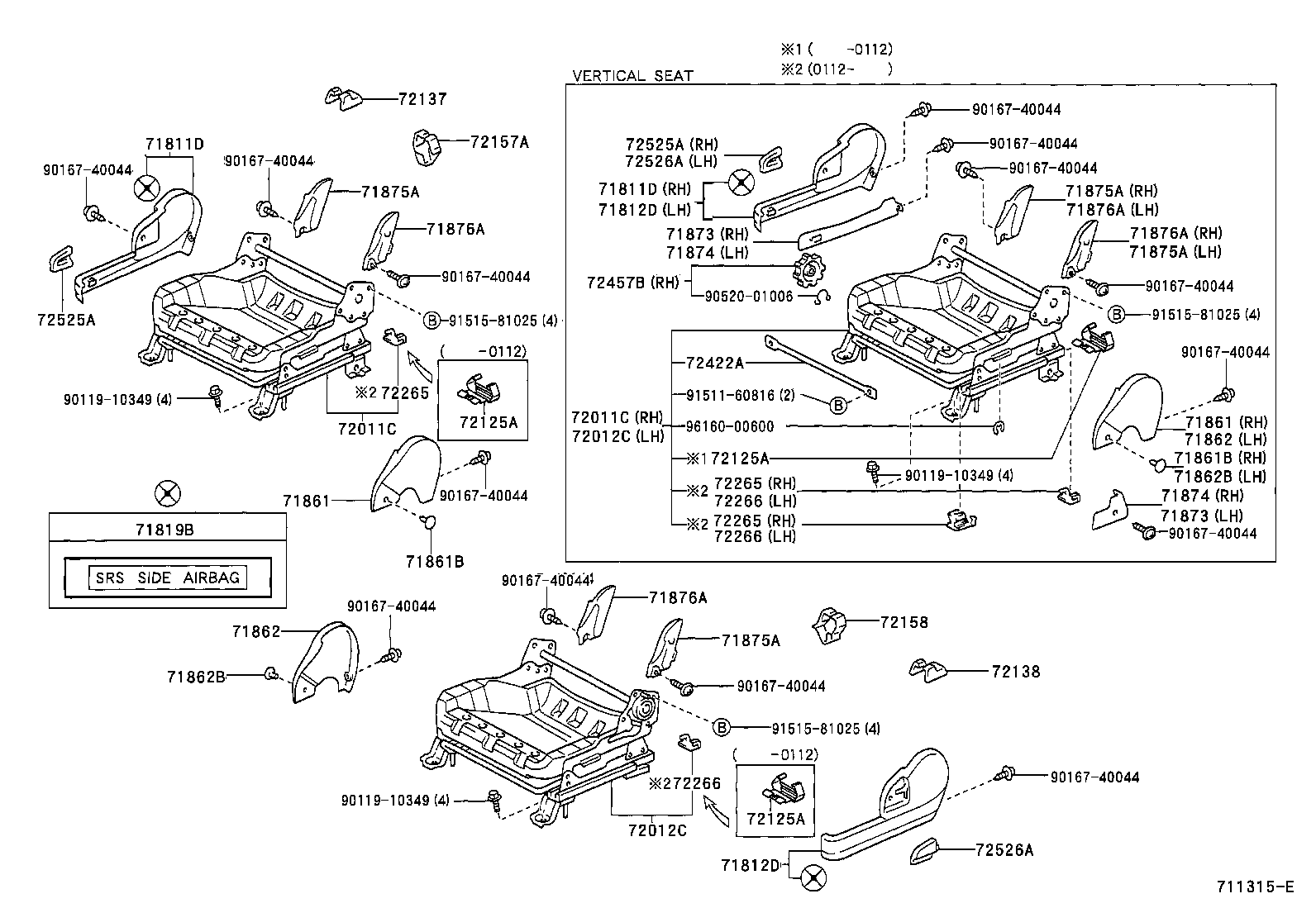

ILLUST NO. 1 OF 2(9901-0212)NCP10,NLP10,SCP10..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52521B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-52511B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-52521H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71040-52210K1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71040-52210K0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,GRAY,TRIM97,98 |
1 | ||
| 71430-52511H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52691H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440-52681H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440-52681B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-52691B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71070-52120K1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71070-52120K0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,GRAY,TRIM97,98 |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52730H0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-52710H1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-5C580B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71518-5C720J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71518-52710H1 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-5C580J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71518-5C720B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-5D160B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D160J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71528-5D120B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D120J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52680H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71558-52680B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71558-5C450B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C590B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C450J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558-5C590J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52420H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71568-52410H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-52410B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-5C430B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71568-5C430J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71630-52010 |
NLP10..JPP..LHD..LUNA;NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52010 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..LUNA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-52020 |
NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52010 |
NCP13,NLP10..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52010B0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52360B0 |
NLP10..JPP..TRSTD DK. GRAY,TRIM9# |
2 | ||
| 71910-52010H0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||

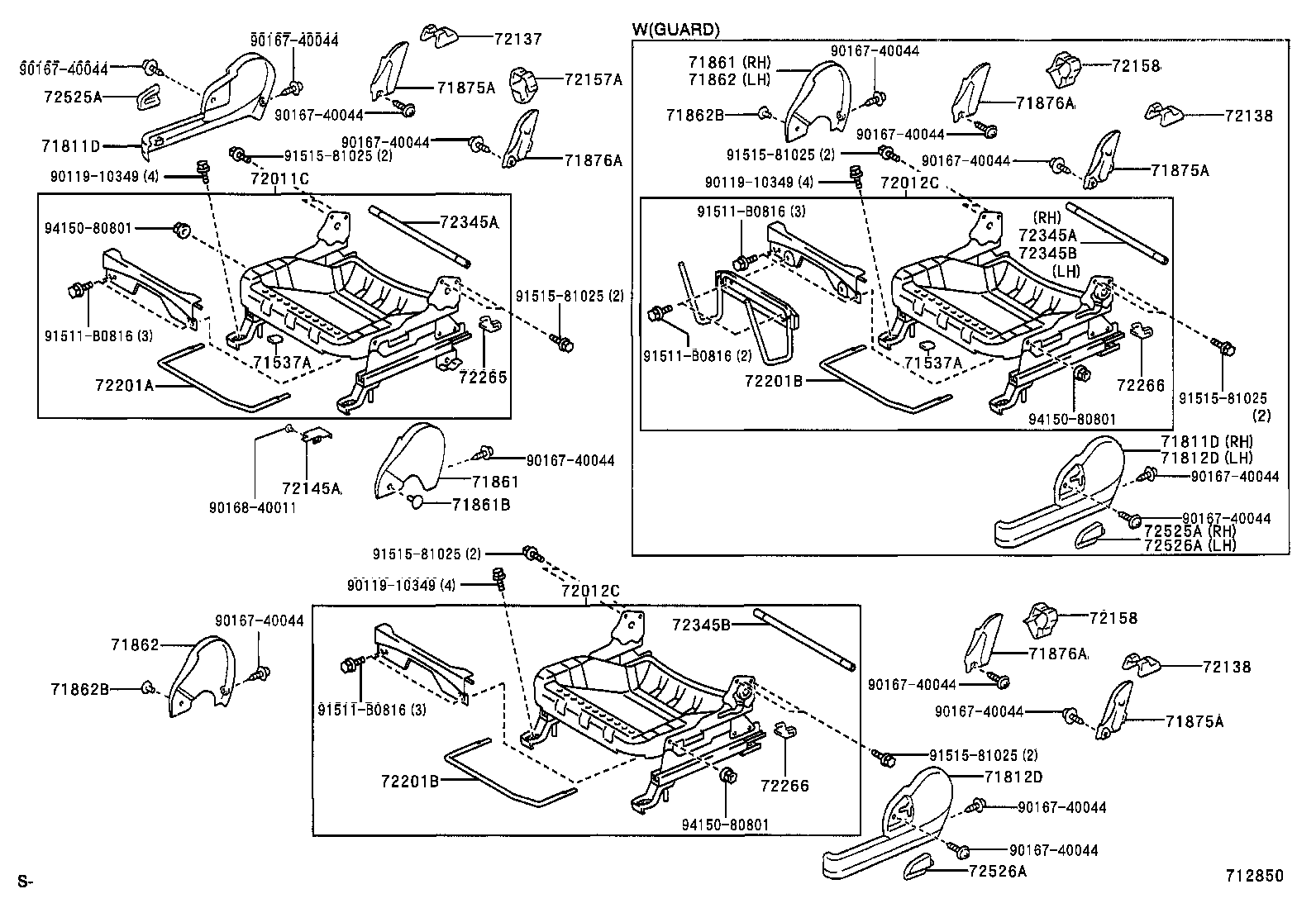

ILLUST NO. 2 OF 2(9901-0212)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71811-52060B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-52010B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811-52060B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71811-52060B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-52010B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811-52060B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52030B0 |
NLP10..JPP..RHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 71812-52030H0 |
NLP10..JPP..RHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NCP10,NLP10,SCP10..JPP..RHD..3D W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NLP10..JPP..RHD..3D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52030B0 |
NLP10..JPP..RHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 71812-52030H0 |
NLP10..JPP..RHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NCP10,NLP10,SCP10..JPP..RHD..3D W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NLP10..JPP..RHD..3D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71819-12020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71861-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71861-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71861-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71861-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010B0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-52010H0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71862-52010B3 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71862-52010B3 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010B0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-52010H0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71862-52010B3 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71862-52010B3 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52640 |
NLP10..JPP..RHD..TRSTD |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52640 |
NLP10..JPP..RHD..TRSTD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52630 |
NCP13,NLP10..JPP..RHD..3D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52630 |
NCP13,NLP10..JPP..RHD..3D |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72137-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72137-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72157-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72158-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..LHD..(SOL,TS);NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NLP10..JPP..TRSTD;NCP13,NLP10..JPP..LHD..(SOL,TS) |
4 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..LHD..(SOL,TS);NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NLP10..JPP..TRSTD;NCP13,NLP10..JPP..LHD..(SOL,TS) |
4 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..LHD..(SOL,TS);NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NLP10..JPP..TRSTD;NCP13,NLP10..JPP..LHD..(SOL,TS) |
4 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NCP13,NLP10..JPP..RHD;NLP10..JPP..LHD..TRSTD |
4 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NCP13,NLP10..JPP..RHD;NLP10..JPP..LHD..TRSTD |
4 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NCP13,NLP10..JPP..RHD;NLP10..JPP..LHD..TRSTD |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72525-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72525-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 2(0212- )NLP10..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52730H0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-52710H1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-5C580B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71518-5C720J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71518-52710H1 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-5C580J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71518-5C720B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-5D160B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D160J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71528-5D120B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D120J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52680H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71558-52680B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71558-5C450B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C590B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C450J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558-5C590J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52420H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71568-52410H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-52410B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-5C430B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71568-5C430J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71630-52010 |
NLP10..JPP..LHD..LUNA;NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52010 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..LUNA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-52020 |
NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52010 |
NCP13,NLP10..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52010B0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52360B0 |
NLP10..JPP..TRSTD DK. GRAY,TRIM9# |
2 | ||
| 71910-52010H0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| Linked diagrams | ||||
| 6701 | ||||
ILLUST NO. 1 OF 2(0212- )NLP10..JPP
W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52521B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-52511B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-52521H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71040-52210K1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71040-52210K0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,GRAY,TRIM97,98 |
1 | ||
| 71430-52511H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52691H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440-52681H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71440-52681B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-52691B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SRS SIDE AIR BAG),SHADOW GRAY,TRIM1# |
1 | ||
| 71070-52120K1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71070-52120K0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,GRAY,TRIM97,98 |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52730H0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-52710H1 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730H0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-52730B0 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104 & W(SIDE AIR BAG),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71518-5C580B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71518-5C720J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71518-52710H1 |
NLP10,SCP10..JPP..RHD..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71518-5C580J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71518-5C720B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-5D160B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D160J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71528-5D120B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71528-5D120J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52680H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71558-52680B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71558-5C450B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C590B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71558-5C450J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71558-5C590J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52420H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71568-52410H1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71568-52410B1 |
NLP10..JPP..TRSTD SEAT = TYPE F-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71568-5C430B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660B0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK. GRAY,TRIM97,98 |
1 | ||
| 71568-5C660J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104,DK.GRAY,TRIM99 |
1 | ||
| 71568-5C430J0 |
NLP10..JPP..RHD..TRSTD SEAT = TYPE C-*104 & W(SRS SIDE AIR BAG),DK.GRAY,TRIM99 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71630-52010 |
NLP10..JPP..LHD..LUNA;NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52010 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..LUNA |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-52020 |
NCP10,NLP10,SCP10..JPP..RHD |
1 | ||
| 71630-52240 |
NLP10..JPP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52010 |
NCP13,NLP10..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52010B0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52360B0 |
NLP10..JPP..TRSTD DK. GRAY,TRIM9# |
2 | ||
| 71910-52010H0 |
NLP10,SCP10..JPP..(TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
NLP10..JPP..TRSTD W(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| 71931-47010B2 |
NLP10..JPP..TRSTD W/O(LOCK),DK.GRAY,TRIM97,98,99 |
2 | ||
| Linked diagrams | ||||
| 6701 | ||||
ILLUST NO. 2 OF 2(0212- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP13,NLP10..JPP |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP13,NLP10..JPP |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71811-52060B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-52010B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811-52060B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71811-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) DK.GRAY,TRIM1# |
1 | ||
| 71811-52060B2 |
NCP10,NLP10,SCP10..JPP..LHD..5D;NCP10,NLP10,SCP10..JPP..RHD..(LUNA,TRSTD) W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-52010B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71811-52060B2 |
NLP10..JPP..RHD..TRSTD;NLP10..JPP..LHD..5D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52030B0 |
NLP10..JPP..RHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 71812-52030H0 |
NLP10..JPP..RHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NCP10,NLP10,SCP10..JPP..RHD..3D W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NLP10..JPP..RHD..3D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52030B0 |
NLP10..JPP..RHD..3D SHADOW GRAY,TRIM1# |
1 | ||
| 71812-52030H0 |
NLP10..JPP..RHD..3D FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71812-52030B1 |
NLP10..JPP..RHD..3D DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NCP10,NLP10,SCP10..JPP..RHD..3D W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-52070B1 |
NLP10..JPP..RHD..3D..TRSTD W(SRS SIDE AIR BAG),DK.GRAY,TRIM97,98,99 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71861-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71861-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71861-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71861-52010B2 |
NCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010B0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-52010H0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71862-52010B3 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71862-52010B3 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52010B0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) SHADOW GRAY,TRIM1# |
1 | ||
| 71862-52010H0 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71862-52010B3 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 71862-52010B3 |
NCP10,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-06085H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085P0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 90467-06085B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71875-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71875-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71875-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71876-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 71876-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 71876-52010B2 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-52640 |
NLP10..JPP..RHD..TRSTD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52630 |
NCP13,NLP10..JPP..RHD..3D |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-52630 |
NCP13,NLP10..JPP..RHD..3D |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72137-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72137-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72137-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72157-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72158-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72158-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..LHD..(SOL,TS);NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NLP10..JPP..TRSTD;NCP13,NLP10..JPP..LHD..(SOL,TS) |
4 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NCP13,NLP10..JPP..RHD;NLP10..JPP..LHD..TRSTD |
4 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-44070 |
NCP1#,NLP10,SCP10..JPP..RHD;NCP10,NLP10,SCP10..JPP..LHD..(LUNA,TRSTD,TSGS) |
4 | ||
| 72265-44070 |
NCP13,NLP10..JPP..RHD;NLP10..JPP..LHD..TRSTD |
4 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-52010 |
NCP13,NLP10..JPP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72525-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72525-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72525-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72526-16010S1 |
NCP10,NLP10,SCP10..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-16010S1 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 94150-80801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
