NLP10R-AGMNXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Dec 2002
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

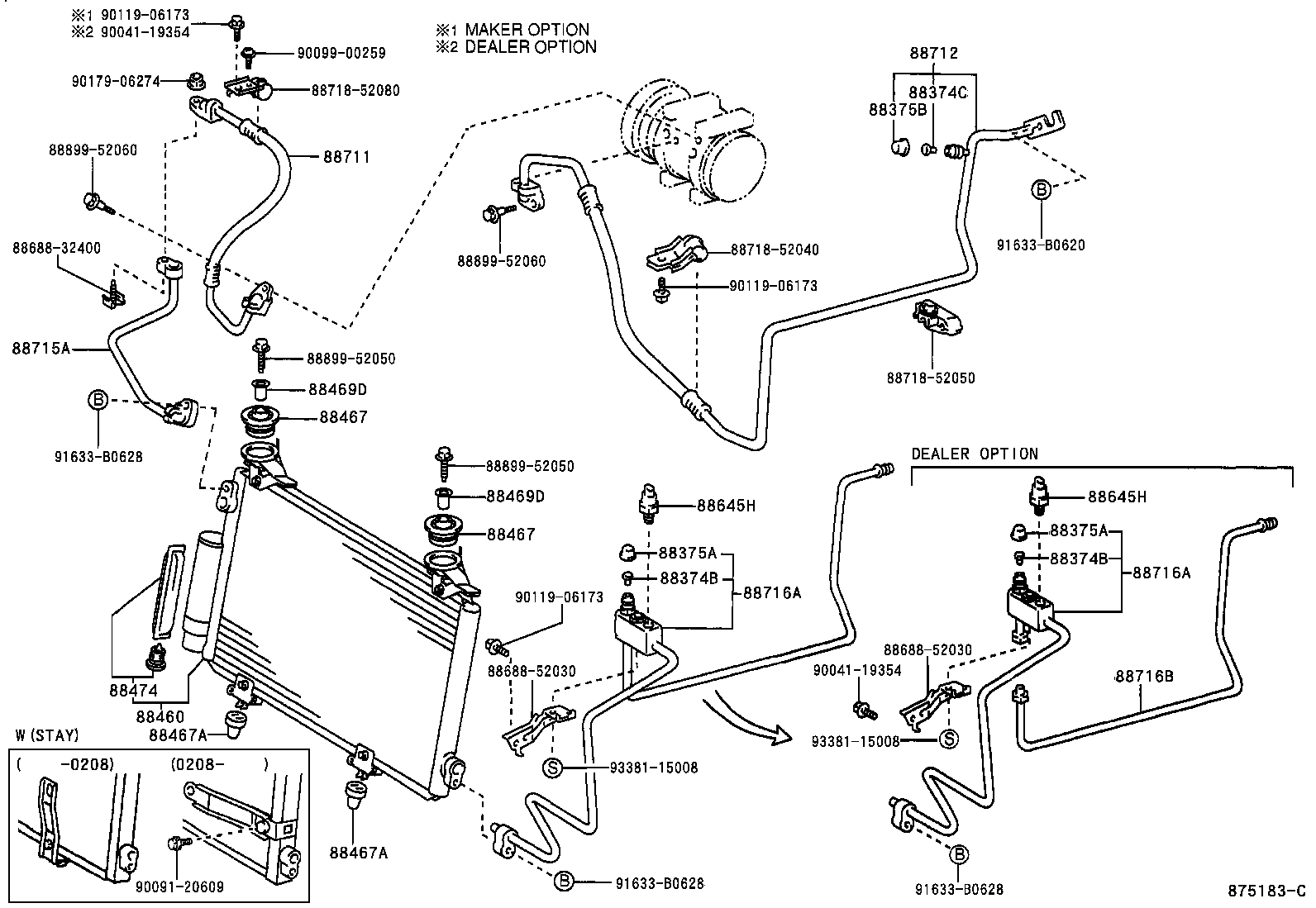

ILLUST NO. 1 OF 2(0110-0212)NLP10..JPP..RHD

Click highlighted areas on diagram

diagram 88374B 88374B 88374C 88375A 88375A 88375B 88460 88467 88467 88467A 88467A 88469D 88469D 88474 88645H 88645H 8868832400 8868852030 8868852030 88711 88712 88715A 88716A 88716A 88716B 8871852040 8871852050 8871852080 8889952050 8889952050 8889952060 8889952060 9004119354 9004119354 9009120609 9009900259 9011906173 9011906173 9011906173 9017906274 91633B0620 91633B0628 91633B0628 91633B0628 9338115008 9338115008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-33070

NCP1#,NLP10..JPP

W(MANUAL AIR CONDITIONER)

 1
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88374B - VALVE, SERVICE, NO.1
88374-33070

NCP1#,NLP10..JPP

W(MANUAL AIR CONDITIONER)

 1
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP1#,NLP10,SCP10..JPP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

NCP1#,NLP10,SCP10..JPP

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

NCP1#,NLP10,SCP10..JPP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NCP1#,NLP10,SCP10..JPP

 1
88460 - CONDENSER ASSY, COOLER
88460-52010

NCP10,NLP10,SCP10..JPP..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP1#,NLP10,SCP10..JPP..RHD

 2
88467-52010

NCP1#,NLP10,SCP10..JPP..RHD

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

NCP1#,NLP10,SCP10..JPP..RHD

 2
88467-52010

NCP1#,NLP10,SCP10..JPP..RHD

DEALER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,NLP10,SCP10..JPP

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-52020

NCP1#,NLP10,SCP10..JPP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP1#,NLP10,SCP10..JPP

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

NCP1#,NLP10,SCP10..JPP

 2
88474 - DRYER, COOLER
88474-17010

NLP10..JPP;NCP1#,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS)

MAKER OPTION

 1
88474-17010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAKER OPTION

 1
88474-47010

NCP1#,NLP10,SCP10..JPP

 1
88474-17010

NLP10..JPP

MAKER OPTION

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP1#,NLP10,SCP10..JPP

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP1#,NLP10,SCP10..JPP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52050

NLP10..JPP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52090

NLP10..JPP..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-52060

NLP10..JPP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52040

NLP10..JPP..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52040

NLP10..JPP..RHD

 1
Common parts
88688-32400
88688-52030
88718-52040
88718-52050
88718-52080
88899-52050
88899-52060
90041-19354
90091-20609
90099-00259
90119-06173
90179-06274
91633-B0620
91633-B0628
93381-15008
