NLP10R-AGMNXW (2001)
Toyota Yaris (Jpp)
Production
Oct 2001
-
Dec 2002
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901-0212)JPP

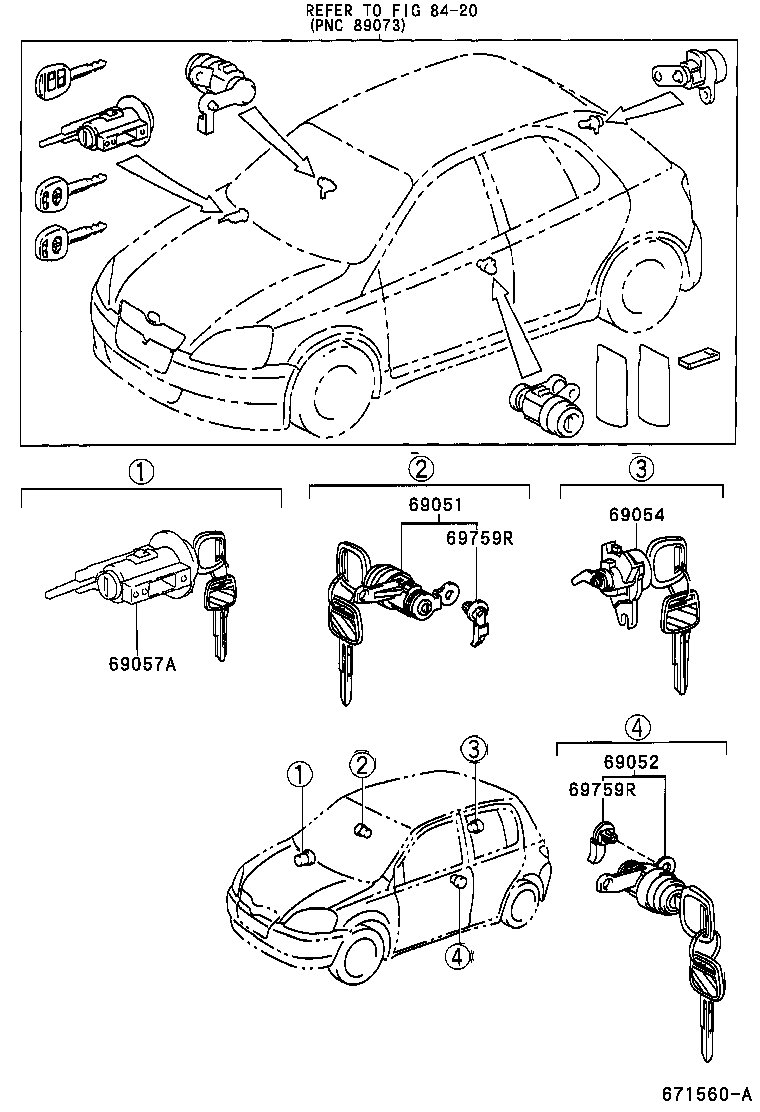

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-52310 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69051-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-52260 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69052-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69055-52350 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-52280 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(IMMOBILIZER & KEY LESS ENTRY) |
1 | ||
| 69057-52290 |
NCP1#,NLP10,SCP10..JPP..RHD W(DOUBLE-LOCK) |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
NCP1#,NLP10,SCP10..JPP RH |
1 | ||
| 69759-32090 |
NCP1#,NLP10,SCP10..JPP..RHD |
1 | ||
| 69759-32100 |
NCP1#,NLP10,SCP10..JPP LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
NCP1#,NLP10,SCP10..JPP RH |
1 | ||
| 69759-32090 |
NCP1#,NLP10,SCP10..JPP..RHD |
1 | ||
| 69759-32100 |
NCP1#,NLP10,SCP10..JPP LH |
1 | ||
| Linked diagrams | ||||
| 8420 | ||||
