NLP10R-AGMGXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Aug 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )JPP

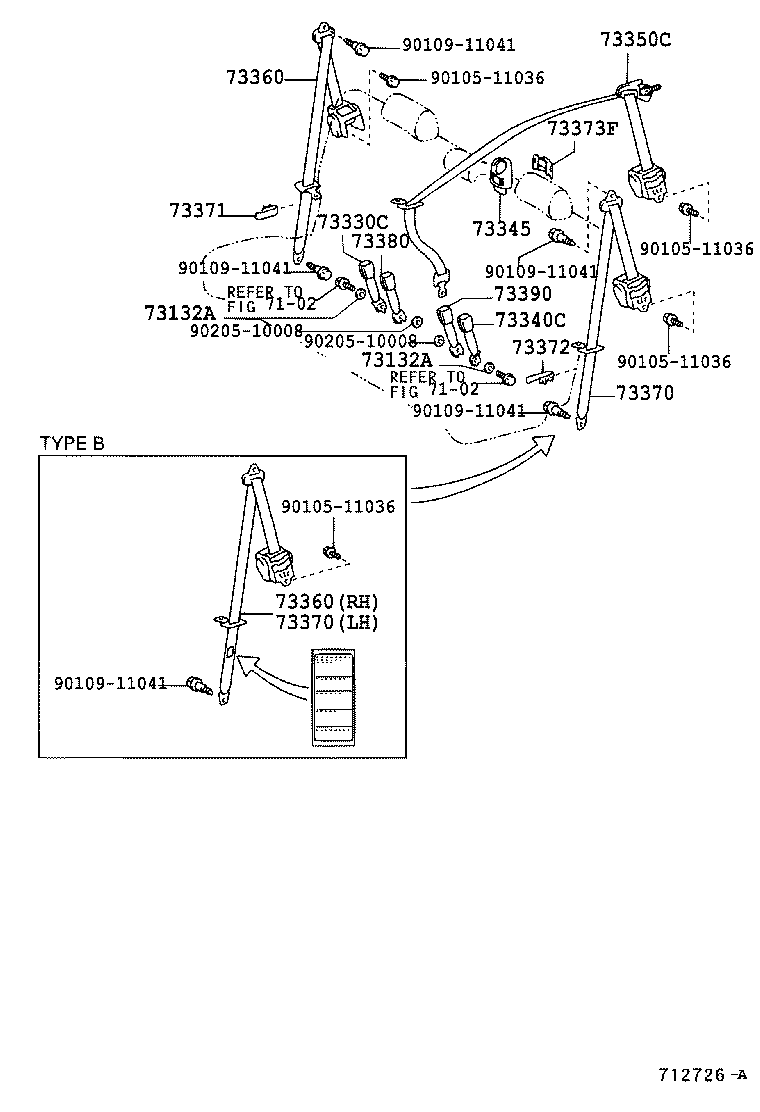

Click highlighted areas on diagram

3 POINT REAR CENTER SEAT BELT

diagram 7102 7102 73132A 73132A 73330C 73340C 73345 73350C 73360 73360 73370 73370 73371 73372 73373F 73380 73390 9010511036 9010511036 9010511036 9010511036 9010911041 9010911041 9010911041 9010911041 9010911041 9020510008 9020510008
Part # Description Qty Price
73132A - RING, SEAT BELT BRACKET
73132-52010

NCP13,NLP10..JPP

 2
73132A - RING, SEAT BELT BRACKET
73132-52010

NCP13,NLP10..JPP

 2
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-52040C0

NLP10..JPP..SOL

BLACK,TRIM97,98

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52040C0

NLP10..JPP..SOL

BLACK,TRIM97,98

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73345-52010B0

NLP10..JPP..SOL

DK.GRAY,TRIM97,98

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73310-52010C0

NLP10..JPP..SOL

BLACK,TRIM97,98

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52180C0

NCP13,NLP10..JPP

BLACK,TRIM9#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52180C0

NCP13,NLP10..JPP

BLACK,TRIM9#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52130C0

NCP13,NLP10..JPP

BLACK,TRIM9#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52130C0

NCP13,NLP10..JPP

BLACK,TRIM9#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-52010B1

NCP13,NLP10..JPP

DK.GRAY,TRIM9#

 1
73371-16050H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
73371-16050B1

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-16050H0

NCP10,NLP10,SCP10..JPP

FRENCH TURQUOISE,TRIM7#

 1
73371-52010B1

NCP13,NLP10..JPP

DK.GRAY,TRIM9#

 1
73371-16050B1

NCP10,NLP10,SCP10..JPP

SHADOW GRAY,TRIM1#

 1
73373F - COVER, REAR SEAT SHOULDER BELT HOLE
73373-52020B0

NLP10..JPP..SOL

DK.GRAY,TRIM97,98

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-52050C0

NLP10..JPP..SOL

BLACK,TRIM97,98

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-52050C0

NLP10..JPP..SOL

BLACK,TRIM97,98

 1
Common parts
90105-11036
90109-11041
90205-10008
Linked diagrams
7102
