NLP10L-AHMRXW (2001)
Toyota Yaris (Jpp)

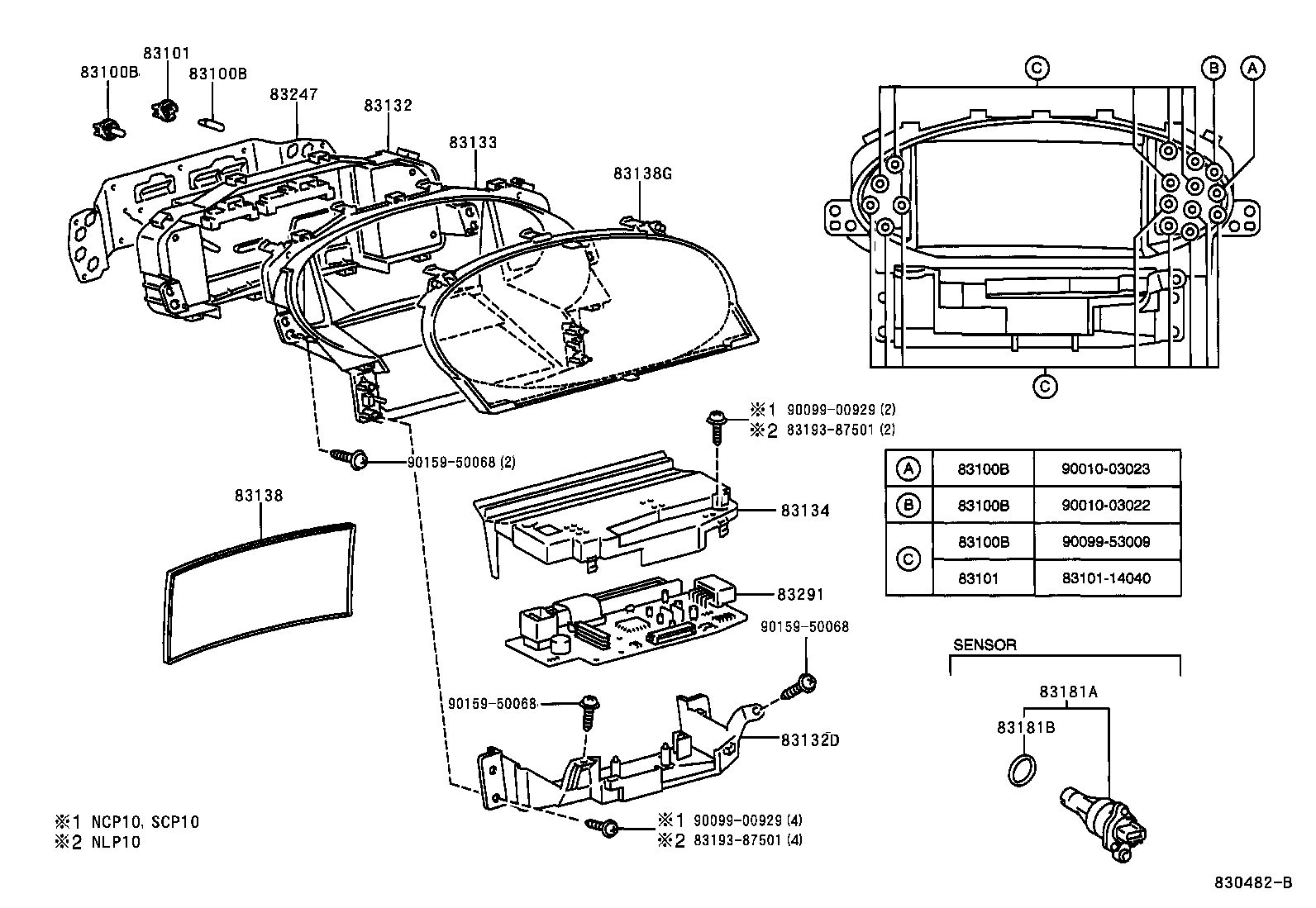

ILLUST NO. 1 OF 2(9901-0212)NCP10,NLP10,SCP10..JPP..LHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10..JPP..LHD 14V0.84W W/O(SOCKET),TYPE A:REFER ILLUST. |
1 | ||
| 90010-03067 |
NLP10..JPP..LHD 14V 1.12W,TYPE B:REFER ILLUST. |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10..JPP..LHD 14V0.84W W/O(SOCKET),TYPE A:REFER ILLUST. |
1 | ||
| 90010-03067 |
NLP10..JPP..LHD 14V 1.12W,TYPE B:REFER ILLUST. |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NLP10..JPP |
1 | ||
| 83101-14040 |
NLP10..JPP..LHD TYPE A:REFER ILLUST. |
14 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-52640 |
NLP10..JPP..LHD |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52120 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52120 |
NLP10..JPP..LHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52120 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0D020 |
NLP10..JPP..LHD (L) |
1 | ||
| 83852-52110 |
NLP10..JPP..LHD (J) |
1 | ||
| 83852-52110 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52640 |
NLP10..JPP..LHD |
1 | ||
| 83852-0D010 |
NLP10..JPP..LHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP13,NLP10..JPP |
1 | ||
| 83181-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 96711-24030 |
NCP13,NLP10..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52640 |
NLP10..JPP..LHD |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52420 |
NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||

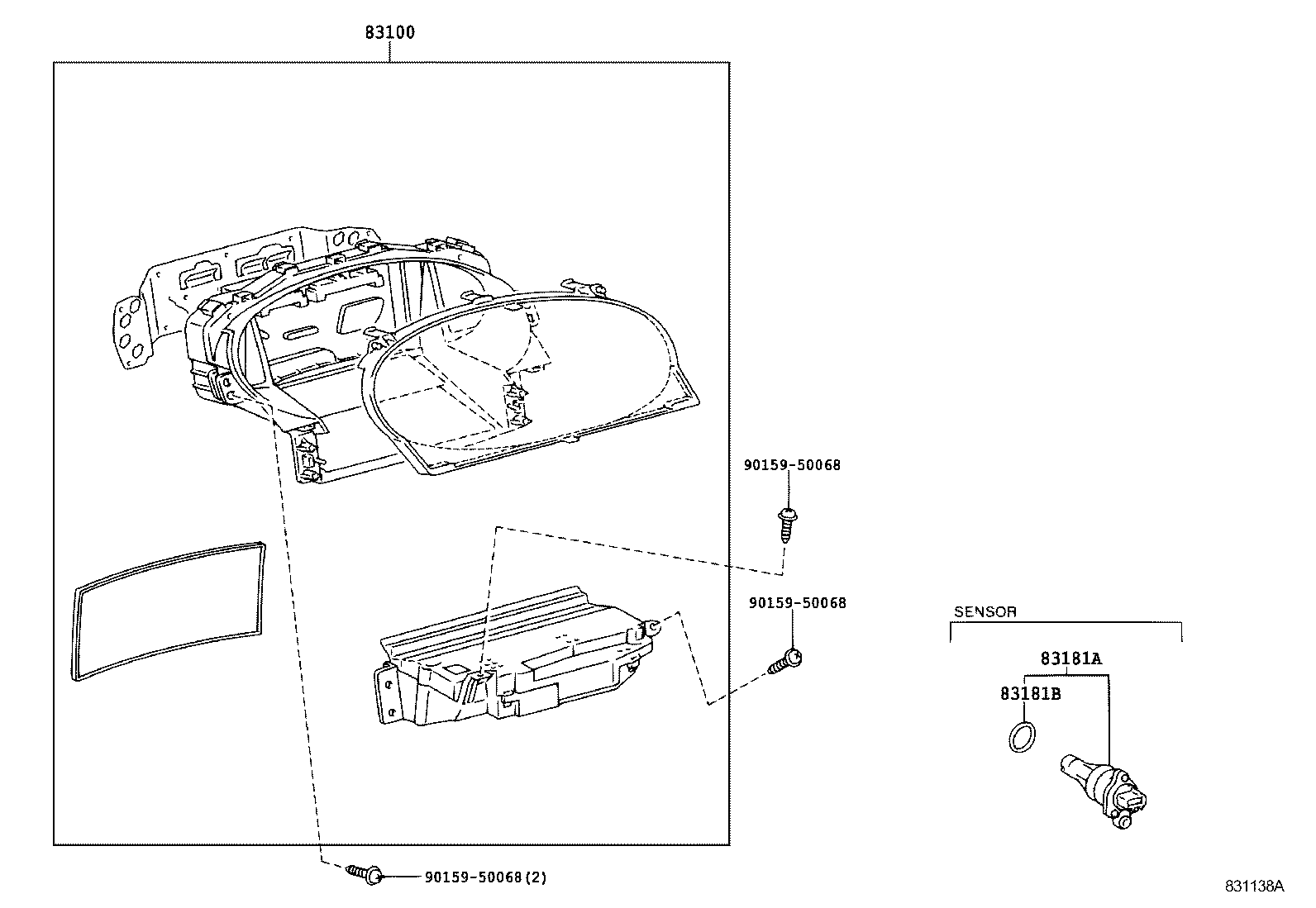

ILLUST NO. 1 OF 2(0212-0312)NLP10..JPP..LHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-0D420 |
NLP10..JPP..LHD |
1 | ||
| 83800-0D421 |
NLP10..JPP..LHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP13,NLP10..JPP |
1 | ||
| 83181-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 96711-24030 |
NCP13,NLP10..JPP |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||

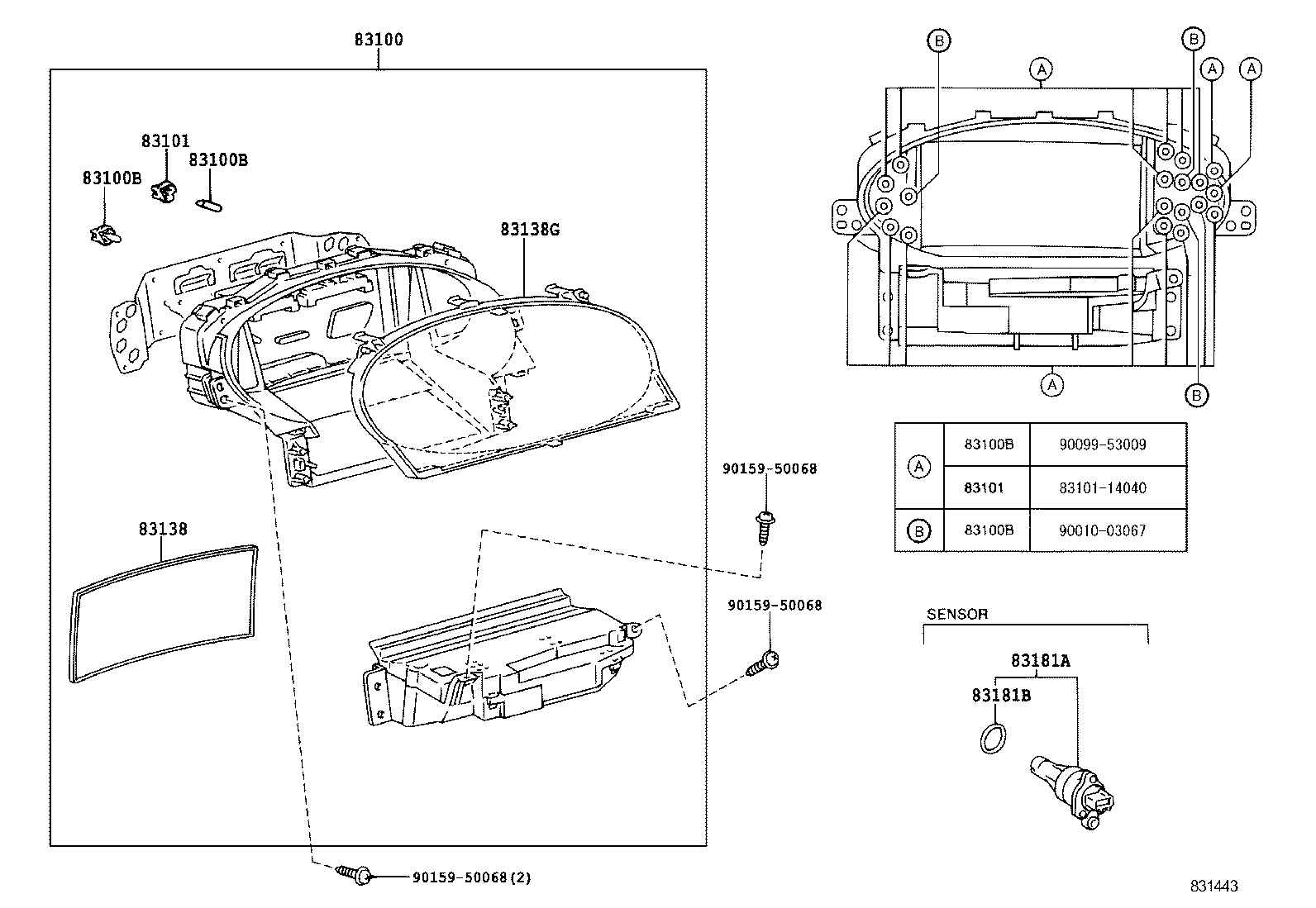

ILLUST NO. 1 OF 2(0312-0508)NLP10..JPP..LHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-0D420 |
NLP10..JPP..LHD |
1 | ||
| 83800-0D421 |
NLP10..JPP..LHD |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10..JPP..LHD 14V0.84W W/O(SOCKET),TYPE A:REFER ILLUST. |
1 | ||
| 90010-03067 |
NLP10..JPP..LHD 14V 1.12W,TYPE B:REFER ILLUST. |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-03022 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP10,NLP10,SCP10..JPP 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-03023 |
NCP10,NLP10,SCP10..JPP 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NLP10..JPP..LHD 14V0.84W W/O(SOCKET),TYPE A:REFER ILLUST. |
1 | ||
| 90010-03067 |
NLP10..JPP..LHD 14V 1.12W,TYPE B:REFER ILLUST. |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
NLP10..JPP |
1 | ||
| 83101-14040 |
NLP10..JPP..LHD TYPE A:REFER ILLUST. |
14 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0D020 |
NLP10..JPP..LHD (L) |
1 | ||
| 83852-52110 |
NLP10..JPP..LHD (J) |
1 | ||
| 83852-52110 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52640 |
NLP10..JPP..LHD |
1 | ||
| 83852-0D010 |
NLP10..JPP..LHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP13,NLP10..JPP |
1 | ||
| 83181-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 96711-24030 |
NCP13,NLP10..JPP |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
