NLP10L-AHMRXW (2001)
Toyota Yaris (Jpp)

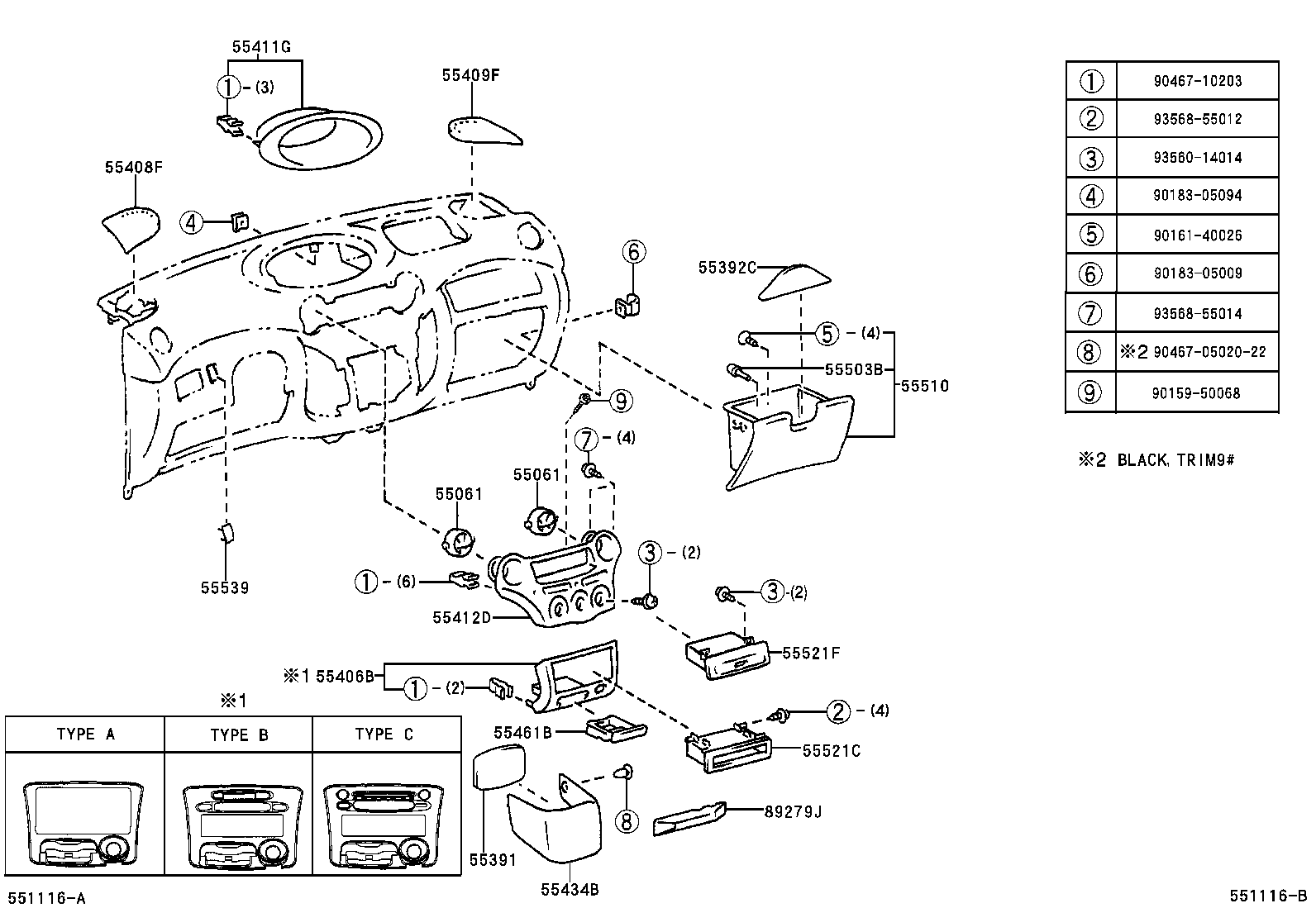

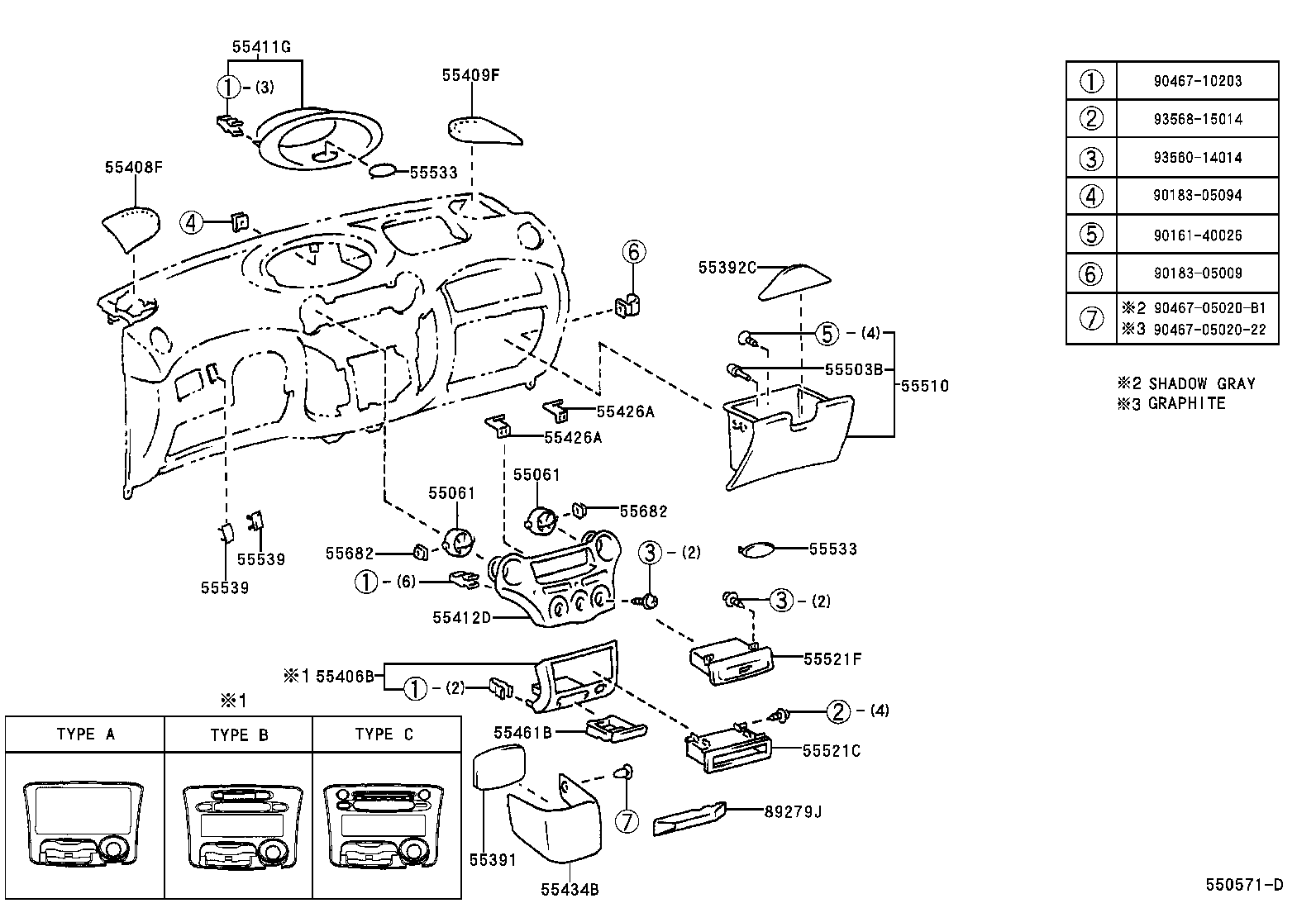

ILLUST NO. 2 OF 2(9901-0212)JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-52010 |
NLP10..JPP |
1 | ||
| 55391-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-52010 |
NLP10..JPP |
1 | ||
| 55392-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52020H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE C:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52010H0 |
NCP10,NLP10,SCP10..JPP TYPE B:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52010B0 |
NCP10,NLP10,SCP10..JPP TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 86220-52020B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52041B0 |
NLP10..JPP..TRSTD TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 86220-52060B0 |
NLP10..JPP..TRSTD TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 86220-52050B0 |
NLP10..JPP..TRSTD TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52050B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55472-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55473-52050B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55473-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55411-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411-52150B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52220B0 |
NCP13,NLP10..JPP..LHD DK.GRAY,TRIM9# |
1 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD MD.GRAY,TRIM1# |
1 | ||
| 55434-52010G0 |
NCP10,NLP10,SCP10..JPP..LHD MIST GREEN,TRIM7# |
1 | ||
| 55434-52080B4 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55461-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55461-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NCP13,NLP10..JPP |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52010B0 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 55550-52010G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 55550-52130B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55550-52130B1 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP13,NLP10..JPP |
1 | ||
| 55521-16030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52060B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55520-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55520-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 55539-52010G0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 55539-52010B3 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55539-52010B4 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 55539-52010G0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 55539-52010B3 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55539-52010B4 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 89279J - COVER | ||||
| 89279-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 89279-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90161-40026 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90467-0502022 | ||||
| 90467-05020B1 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-15014 | ||||

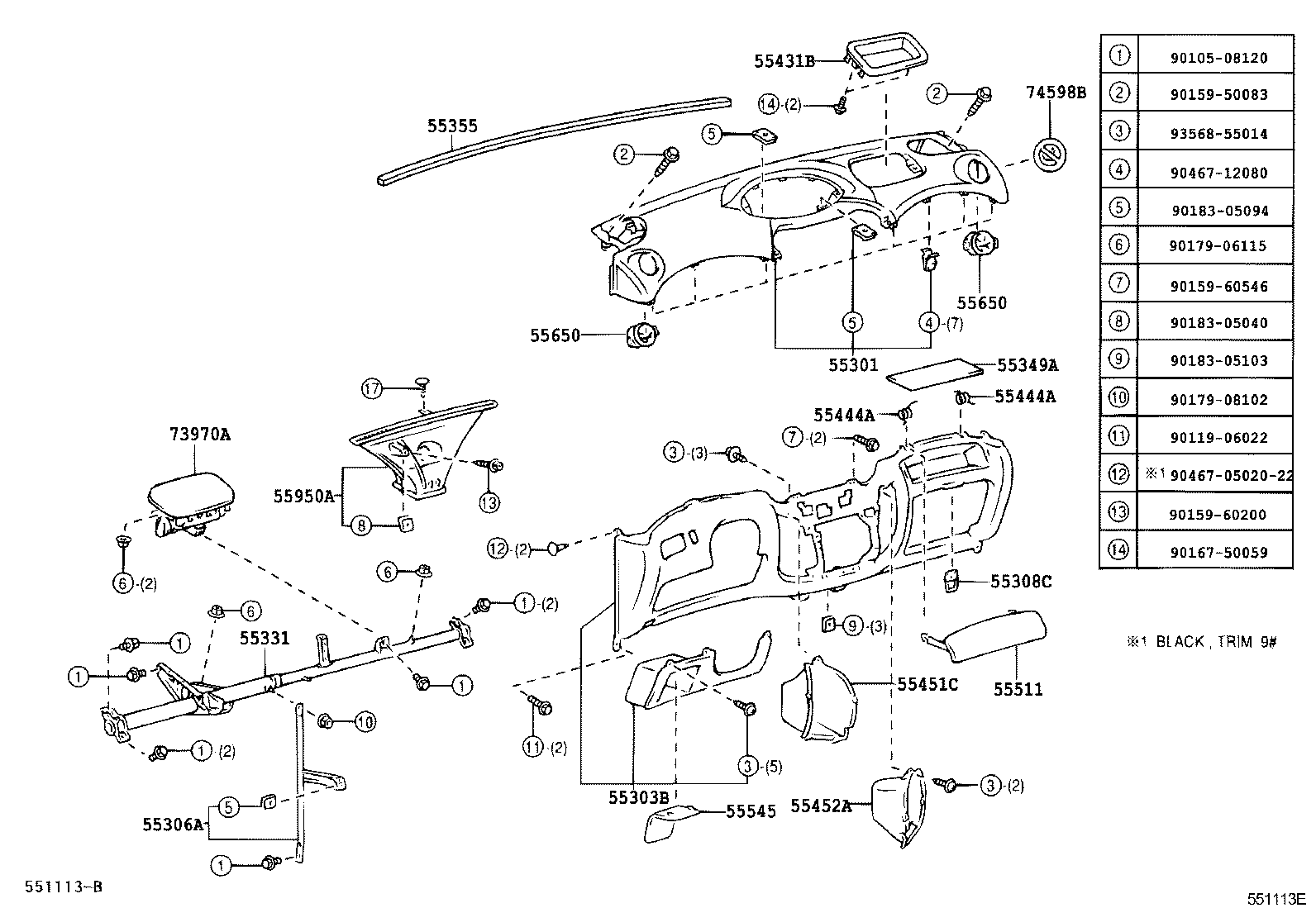

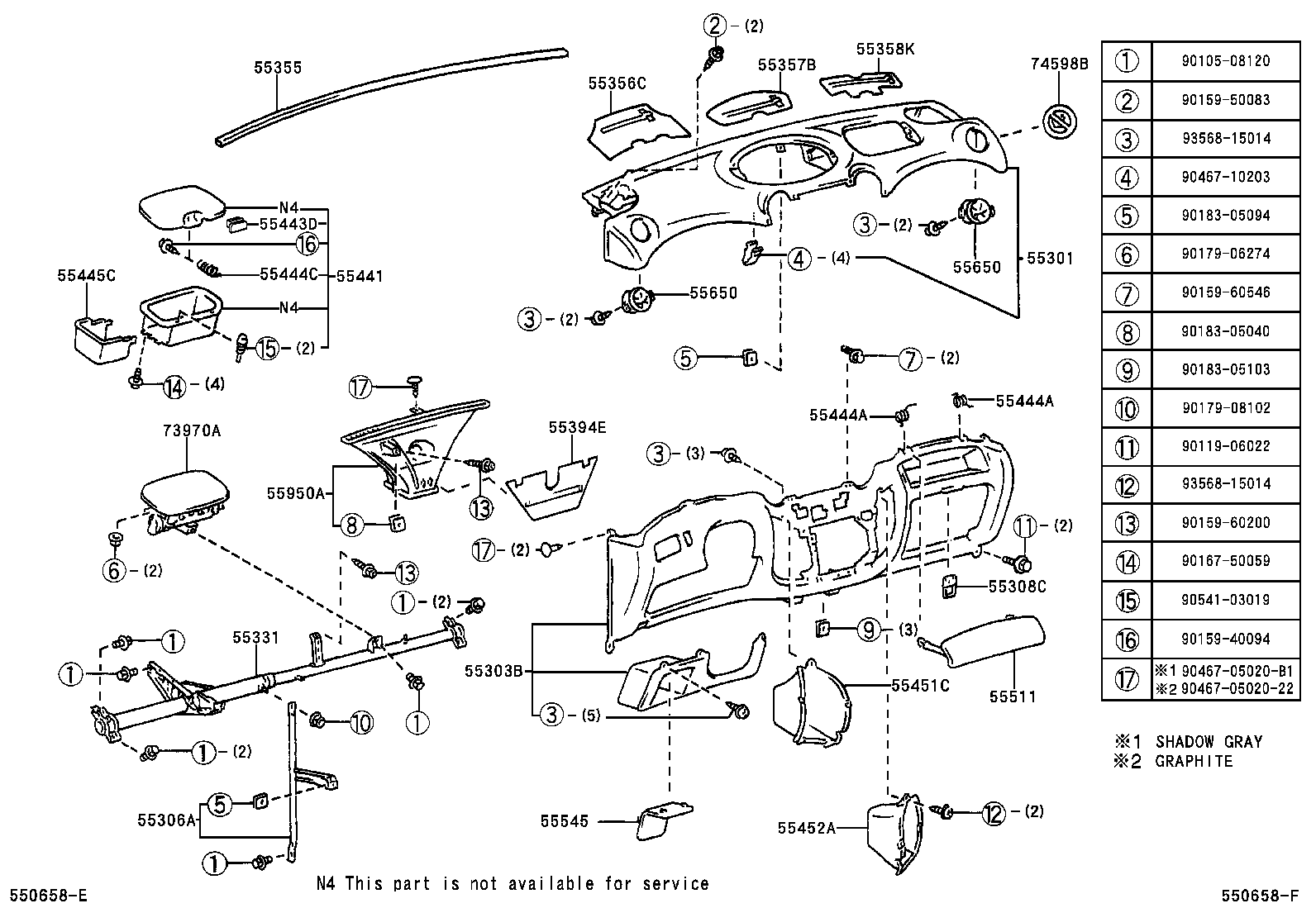

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55301-52170B0 |
NLP10..JPP..LHD..TRSTD DK. GRAY,TRIM97,98,99 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52902B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55303-52902H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55303-52902B4 |
NLP10..JPP..LHD MD. GRAY,TRIM98 |
1 | ||
| 55303-52902B5 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52011 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55308-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55308-52080 |
NCP13,NLP10..JPP |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52020 |
NCP1#,NLP10,SCP10..JPP..LHD W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE) |
1 | ||
| 55330-52280 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55330-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NLP10..JPP |
1 | ||
| 55355-52150 |
NLP10..JPP |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52040 |
NCP13,NLP10..JPP |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52060 |
NCP13,NLP10..JPP |
1 | ||
| 55357-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55394E - CUSHION, INSTRUMENT PANEL, LOWER NO.4 | ||||
| 55979-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55979-52010 |
NLP10..JPP |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-52030B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55440-52030H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55443-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52020 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 55444-52020 |
NCP1#,NLP10,SCP10..JPP..LHD |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52020 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 55444-52020 |
NCP1#,NLP10,SCP10..JPP..LHD |
2 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-52030H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55445-52030B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451-52080B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55452-52080B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55452-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-52010G0 |
NCP10,NLP10,SCP10..JPP..LHD MIST GREEN,TRIM7# |
1 | ||
| 55501-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD MD.GRAY,TRIM1# |
1 | ||
| 55501-52060B1 |
NLP10..JPP..LHD MD.GRAY,TRIM98 |
1 | ||
| 55501-52060B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52010G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 55545-52010B0 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 55545-52010B5 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55545-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP DK.GRAY,TRIM9# |
2 | ||
| 55650-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP DK.GRAY,TRIM9# |
2 | ||
| 55650-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55950-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-52170B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 73970-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 74598-20010 |
NCP13,NLP10..JPP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-40094 | ||||
| 90159-50083 | ||||
| 90159-60200 | ||||
| 90159-60546 | ||||
| 90167-50059 | ||||
| 90179-06274 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-05020B1 | ||||
| 90467-10203 | ||||
| 90541-03019 | ||||
| 93568-15014 | ||||
ILLUST NO. 1 OF 2(0212- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55301-52170B0 |
NLP10..JPP..LHD..TRSTD DK. GRAY,TRIM97,98,99 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52902B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55303-52902H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55303-52902B4 |
NLP10..JPP..LHD MD. GRAY,TRIM98 |
1 | ||
| 55303-52902B5 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52011 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55308-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55308-52080 |
NCP13,NLP10..JPP |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52020 |
NCP1#,NLP10,SCP10..JPP..LHD W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE) |
1 | ||
| 55330-52280 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55330-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NLP10..JPP |
1 | ||
| 55355-52150 |
NLP10..JPP |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-52050B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52020 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 55444-52020 |
NCP1#,NLP10,SCP10..JPP..LHD |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52020 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 55444-52020 |
NCP1#,NLP10,SCP10..JPP..LHD |
2 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55451-52080B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55452-52080B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55452-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-52010G0 |
NCP10,NLP10,SCP10..JPP..LHD MIST GREEN,TRIM7# |
1 | ||
| 55501-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD MD.GRAY,TRIM1# |
1 | ||
| 55501-52060B1 |
NLP10..JPP..LHD MD.GRAY,TRIM98 |
1 | ||
| 55501-52060B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52010G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 55545-52010B0 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 55545-52010B5 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55545-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP DK.GRAY,TRIM9# |
2 | ||
| 55650-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP DK.GRAY,TRIM9# |
2 | ||
| 55650-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55950-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 73970-52170B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 73970-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 74598-20010 |
NCP13,NLP10..JPP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-50083 | ||||
| 90159-60200 | ||||
| 90159-60546 | ||||
| 90167-50059 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0212- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52080B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-52010 |
NLP10..JPP |
1 | ||
| 55391-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-52010 |
NLP10..JPP |
1 | ||
| 55392-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE A:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52020H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE C:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52010H0 |
NCP10,NLP10,SCP10..JPP TYPE B:REFER TO ILLUSTRATION,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 86220-52010B0 |
NCP10,NLP10,SCP10..JPP TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 86220-52020B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52041B0 |
NLP10..JPP..TRSTD TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 86220-52060B0 |
NLP10..JPP..TRSTD TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 86220-52050B0 |
NLP10..JPP..TRSTD TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM97,98,99 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52050B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55472-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55473-52050B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55473-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55411-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55411-52150B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52220B0 |
NCP13,NLP10..JPP..LHD DK.GRAY,TRIM9# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD MD.GRAY,TRIM1# |
1 | ||
| 55434-52010G0 |
NCP10,NLP10,SCP10..JPP..LHD MIST GREEN,TRIM7# |
1 | ||
| 55434-52080B4 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55461-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55461-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NCP13,NLP10..JPP |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52010B0 |
NCP10,NLP10,SCP10..JPP MD.GRAY,TRIM1# |
1 | ||
| 55550-52010G0 |
NCP10,NLP10,SCP10..JPP MIST GREEN,TRIM7# |
1 | ||
| 55550-52130B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 55550-52130B1 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP13,NLP10..JPP |
1 | ||
| 55521-16030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52060B0 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55520-52010H0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55520-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) SHADOW GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MD.GRAY,TRIM1# |
1 | ||
| 55539-52010G0 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) MIST GREEN,TRIM7# |
1 | ||
| 55539-52010B3 |
NLP10..JPP MD.GRAY,TRIM98 |
1 | ||
| 55539-52010B4 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,99 |
1 | ||
| 89279J - COVER | ||||
| 89279-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 89279-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90161-40026 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
