Toyota Yaris (jpp) NLP10 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
YARIS (JPP)
NLP10L-AHMRXW (2001)
5202 - REAR BUMPER & BUMPER STAY

NLP10L-AHMRXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Aug 2005

Engine 1NDTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

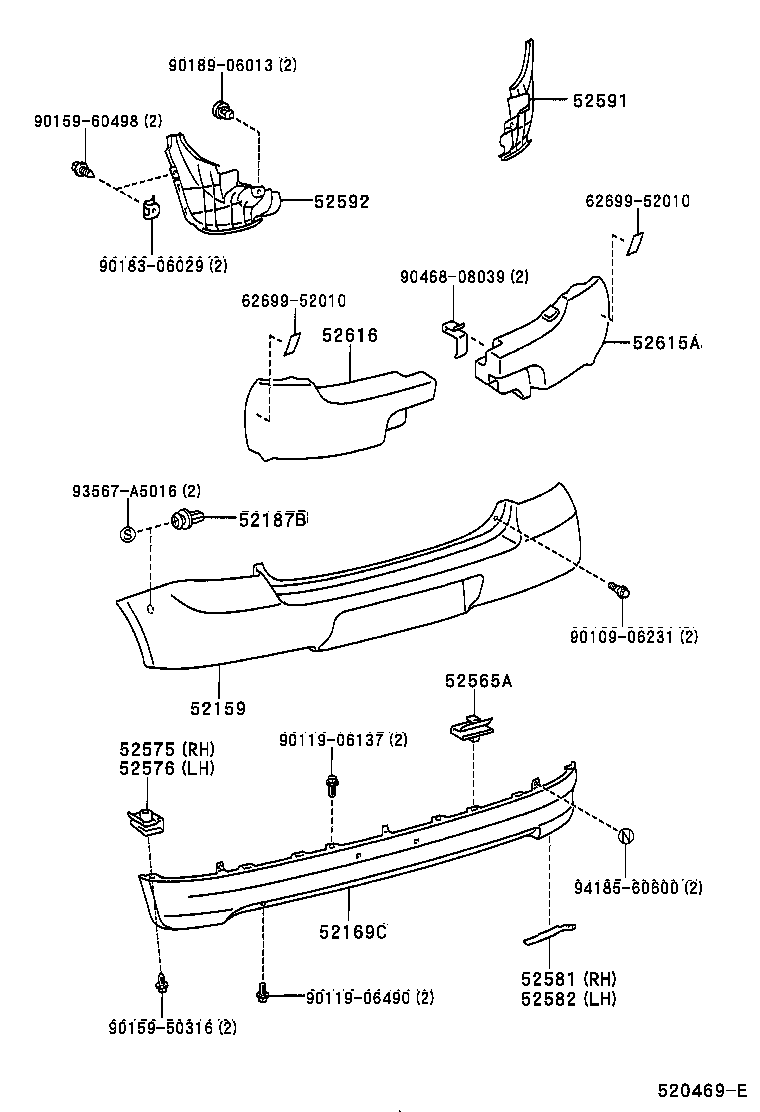

(9901-0212)NCP10,NLP10,SCP10..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-52420	NLP10..JPP	12/2002 - 08/2005	1
52169C - COVER, REAR BUMPER, LOWER
58381-52040	NLP10..JPP	12/2002 - 08/2005	1
58381-52020	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52187B - GUIDE, REAR BUMPER LOCATION
52187-52010	NCP13,NLP10..JPP	12/2002 - 08/2005	2
52187-52010	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2002	2
52565A - RETAINER, REAR BUMPER, LOWER
52565-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	4
52565-52010	NLP10..JPP	12/2002 - 08/2005	5
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52575-52010	NLP10..JPP	12/2002 - 08/2005	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52010	NLP10..JPP	12/2002 - 08/2005	1
52576-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52581 - PROTECTOR, REAR BUMPER, RH
52581-52050	NLP10..JPP	12/2002 - 12/2999	1
52582 - PROTECTOR, REAR BUMPER, LH
52582-52040	NLP10..JPP	12/2002 - 12/2999	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52591-52070	NLP10..JPP	12/2002 - 08/2005	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52060	NLP10..JPP	12/2002 - 08/2005	1
52592-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52615A - ABSORBER, REAR BUMPER ENERGY, RH
52615-52050	NLP10..JPP	12/2002 - 12/2999	1
52616 - ABSORBER, REAR BUMPER ENERGY, LH
52616-52050	NLP10..JPP	12/2002 - 12/2999	1
Common parts
62699-52010
90109-06231
90119-06137
90119-06490
90159-50316
90159-60498
90183-06029
90189-06013
90468-08039
93567-A5016
94185-60600

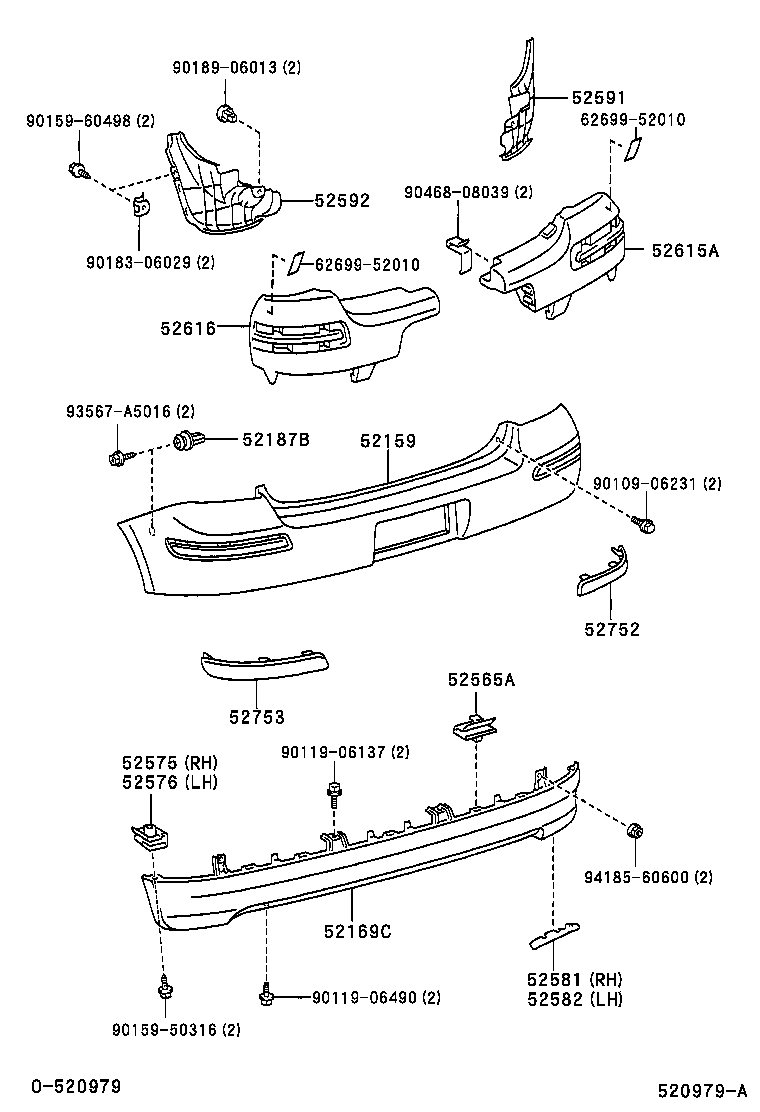

(0212- )NLP10..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-52420	NLP10..JPP	12/2002 - 08/2005	1
52169C - COVER, REAR BUMPER, LOWER
58381-52040	NLP10..JPP	12/2002 - 08/2005	1
58381-52020	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52187B - GUIDE, REAR BUMPER LOCATION
52187-52010	NCP13,NLP10..JPP	12/2002 - 08/2005	2
52187-52010	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2002	2
52565A - RETAINER, REAR BUMPER, LOWER
52565-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	4
52565-52010	NLP10..JPP	12/2002 - 08/2005	5
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52575-52010	NLP10..JPP	12/2002 - 08/2005	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52010	NLP10..JPP	12/2002 - 08/2005	1
52576-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52581 - PROTECTOR, REAR BUMPER, RH
52581-52050	NLP10..JPP	12/2002 - 12/2999	1
52582 - PROTECTOR, REAR BUMPER, LH
52582-52040	NLP10..JPP	12/2002 - 12/2999	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52591-52070	NLP10..JPP	12/2002 - 08/2005	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52060	NLP10..JPP	12/2002 - 08/2005	1
52592-52010	NCP10,NLP10,SCP10..JPP	01/1999 - 12/2002	1
52615A - ABSORBER, REAR BUMPER ENERGY, RH
52615-52050	NLP10..JPP	12/2002 - 12/2999	1
52616 - ABSORBER, REAR BUMPER ENERGY, LH
52616-52050	NLP10..JPP	12/2002 - 12/2999	1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-52010	NLP10..JPP..TRSTD	12/2002 - 08/2005	1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-52010	NLP10..JPP..TRSTD	12/2002 - 08/2005	1
Common parts
62699-52010
90109-06231
90119-06137
90119-06490
90159-50316
90159-60498
90183-06029
90189-06013
90468-08039
93567-A5016
94185-60600

NLP10L-AHMRXW (2001)

(9901-0212)NCP10,NLP10,SCP10..JPP

(0212- )NLP10..JPP
