NLP10L-AHMRXW (2001)
Toyota Yaris (Jpp)

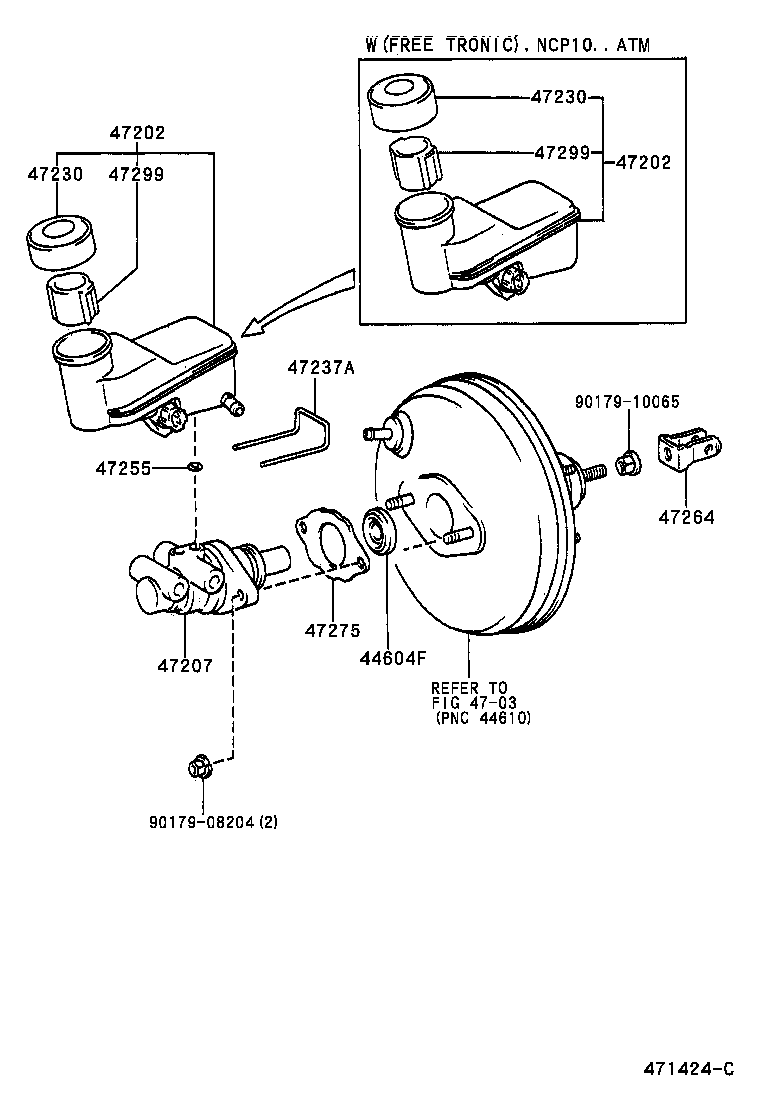

ILLUST NO. 1 OF 2(9901-0309)JPP..LHD
JKC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604F - SEAL, BRAKE BOOSTER BODY | ||||
| 44604-52070 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 44604-52070 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52030 |
NCP1#,NLP10,SCP10..JPP..LHD..5F |
1 | ||
| 47220-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52030 |
NCP1#,NLP10,SCP10..JPP..LHD..5F |
1 | ||
| 47220-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-52012 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47207-52011 |
NLP10..JPP..LHD W(ABS) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47230-52030 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47230-52030 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47237-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
2 | ||
| 47255-52010 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52020 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47264-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47275-52010 |
NLP10..JPP..LHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47299-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47299-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 4703 | ||||

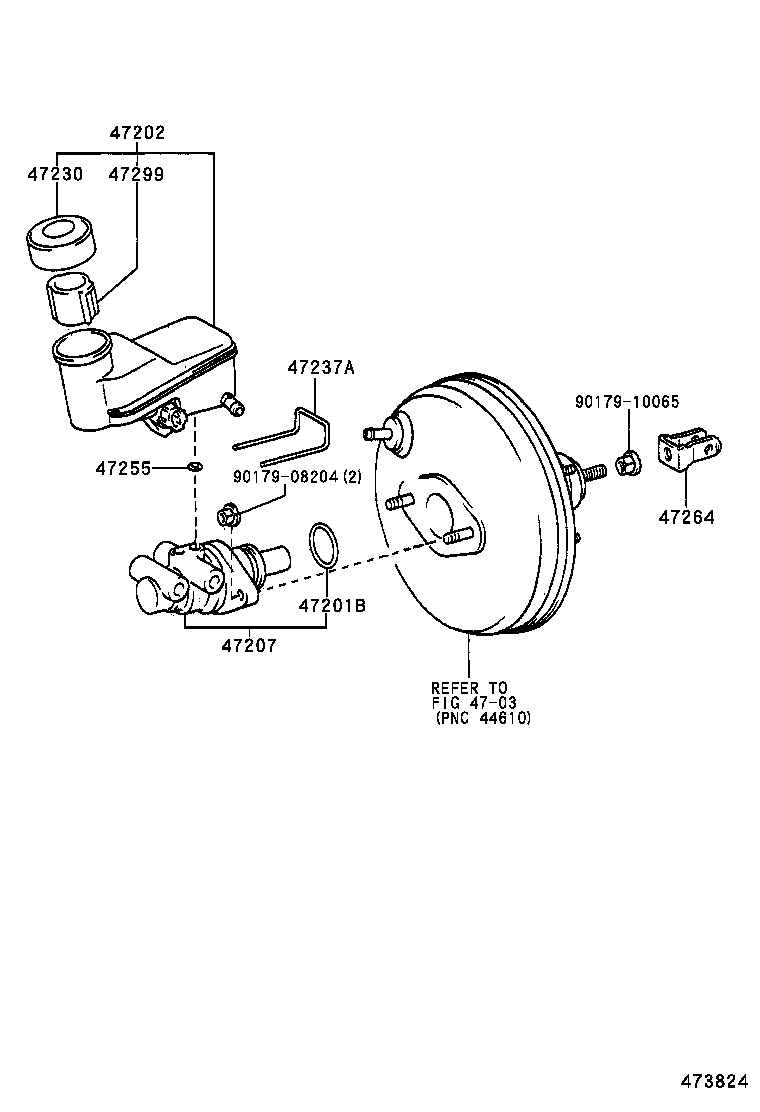

(0309- )JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-EH001 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52030 |
NCP1#,NLP10,SCP10..JPP..LHD..5F |
1 | ||
| 47220-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-52012 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47207-52011 |
NLP10..JPP..LHD W(ABS) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47230-52030 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47237-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
2 | ||
| 47255-52010 |
NCP13,NLP10..JPP..LHD |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52020 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47264-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP13..JPP;NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 47299-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 4703 | ||||
