NLP10L-AHMRXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Aug 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )JPP

Click highlighted areas on diagram

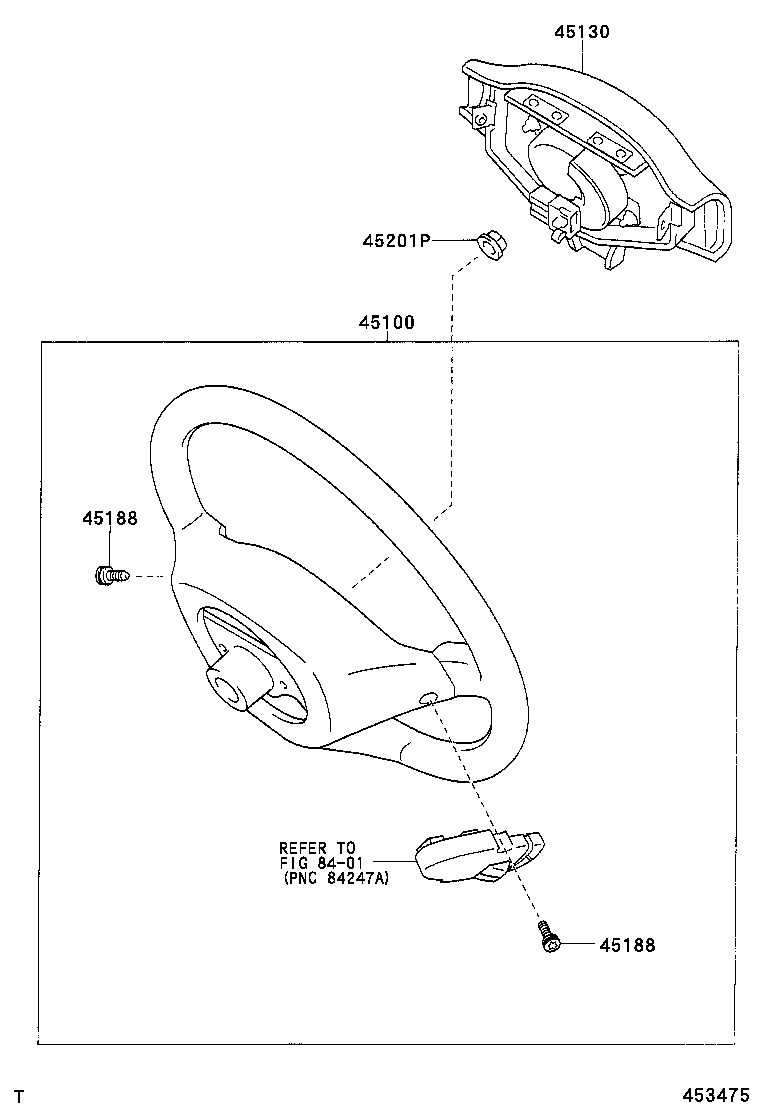

3-SPOKE, W(STEERING AUDIO SWITCH)

diagram 45100 45130 45188 45188 45201P 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52010G0

NCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)

3-SPOKE,URETHANE,MIST GREEN,TRIM7#

 1
45100-52070B1

NLP10..JPP..TRSTD

3-SPOKE,URETHANE,DK.GRAY,TRIM97,98,99

 1
45100-52010B0

NCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)

3-SPOKE,URETHANE,MD.GRAY,TRIM1#

 1
45100-0D090B0

NLP10..JPP..TRSTD

3-SPOKE,LEATHER,W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98,99

 1
45130 - BUTTON ASSY, HORN
45130-0W080B0

NLP10..JPP..TRSTD

W(STEERING AUDIO SWITCH),DK.GRAY,TRIM97,98,99

 1
45130-52251B1

NLP10..JPP..TRSTD

DK.GRAY,TRIM97,98,99

 1
45130-52250B1

NLP10..JPP..TRSTD

DK.GRAY,TRIM97,98,99

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60026

NCP13,NLP10..JPP

L=19.0

 2
90080-14047

NCP13,NLP10..JPP

L=18.0,W(STEERING AUDIO SWITCH)

 2
90148-60026

NCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)

L=19.0

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60026

NCP13,NLP10..JPP

L=19.0

 2
90080-14047

NCP13,NLP10..JPP

L=18.0,W(STEERING AUDIO SWITCH)

 2
90148-60026

NCP10,NLP10,SCP10..JPP..(SOL,TRSTD,TSGS)

L=19.0

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP1#,NLP10,SCP10..JPP

 1
90179-12071

NCP13,NLP10..JPP

 1
Linked diagrams
8401
