NLP10L-AHMNXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Dec 2002
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)JPP

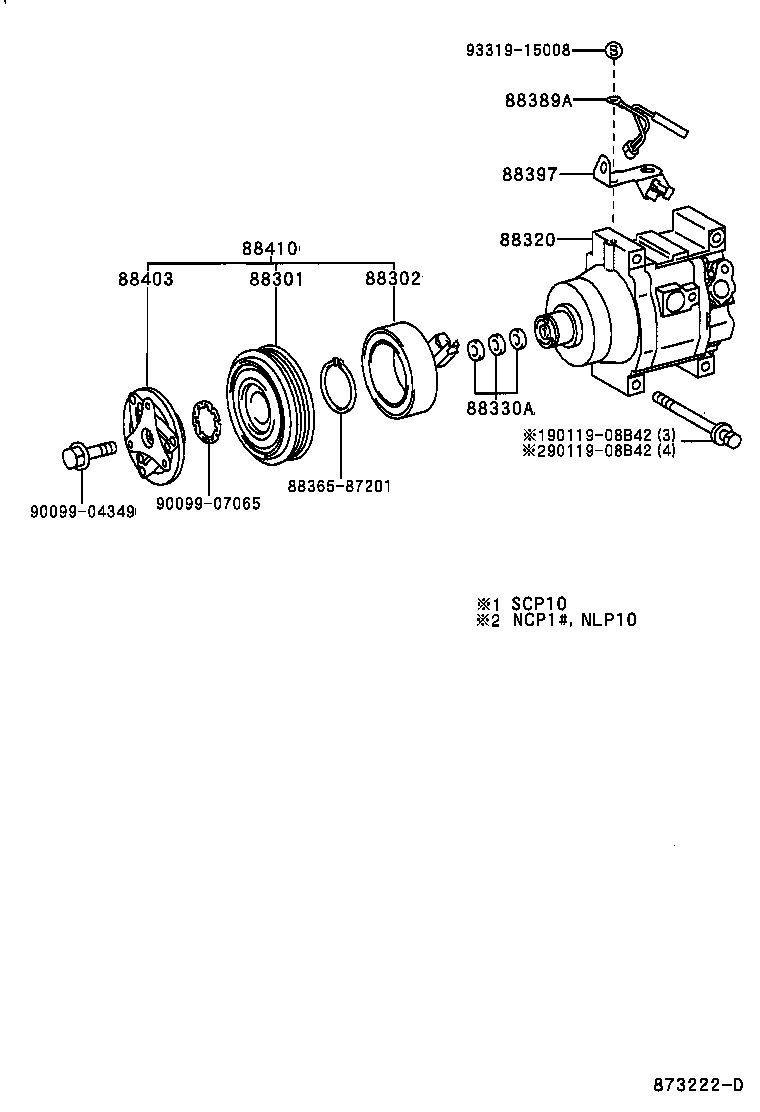

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 8836587201 88389A 88397 88403 88410 9009904349 9009907065 9011908B42 9011908B42 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-52090

NLP10..JPP

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A050

NLP10..JPP

 1
88320 - COMPRESSOR ASSY, COOLER
88320-52080

NLP10..JPP

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

NCP1#,NLP10,SCP10..JPP

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A020

NLP10..JPP

 1
88410 - CLUTCH ASSY, MAGNET
88410-52100

NLP10..JPP

 1
88410-52171

NLP10..JPP

 1
Common parts
88365-87201
90099-04349
90099-07065
90119-08B42
93319-15008
