NLP10L-AGMRXW (2001)
Toyota Yaris (Jpp)

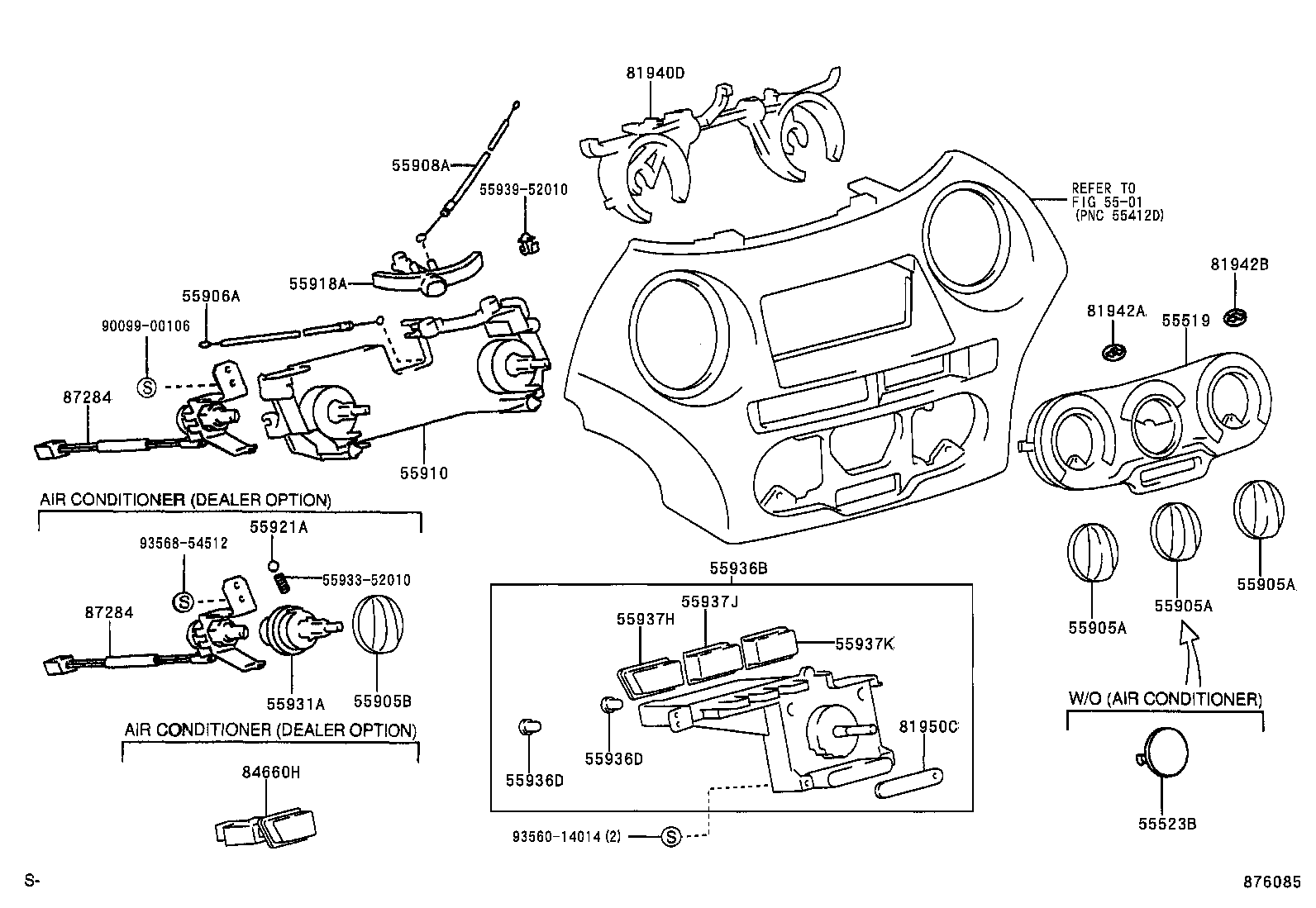

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NLP10..JPP..LHD W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55905-52080 |
NLP10..JPP..LHD |
1 | ||
| 55905-52010 |
NLP10..JPP..LHD..(SOL,TRSTD) W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55906-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55908-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55909-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55909-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52020 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP1#,NLP10,SCP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910-52020 |
NLP10..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP13,NLP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NLP10..JPP..LHD |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52070 |
NCP13,NLP10..JPP |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55921-52010 |
NLP10..JPP..LHD |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55931-52010 |
NLP10..JPP..LHD |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52100 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 84010-52120 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84010-52440 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 84010-52420 |
NCP13,NLP10..JPP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 55937-52300 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52290 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81940-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52020B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52020B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52070H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52070B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080H0 |
NCP10,NLP10,SCP10..JPP..LHD W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52080B0 |
NCP10,NLP10,SCP10..JPP..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52040H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52060B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52050B0 |
NCP10,NLP10,SCP10..JPP W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52060H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52050H0 |
NCP10,NLP10,SCP10..JPP W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81950-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 5501 | ||||

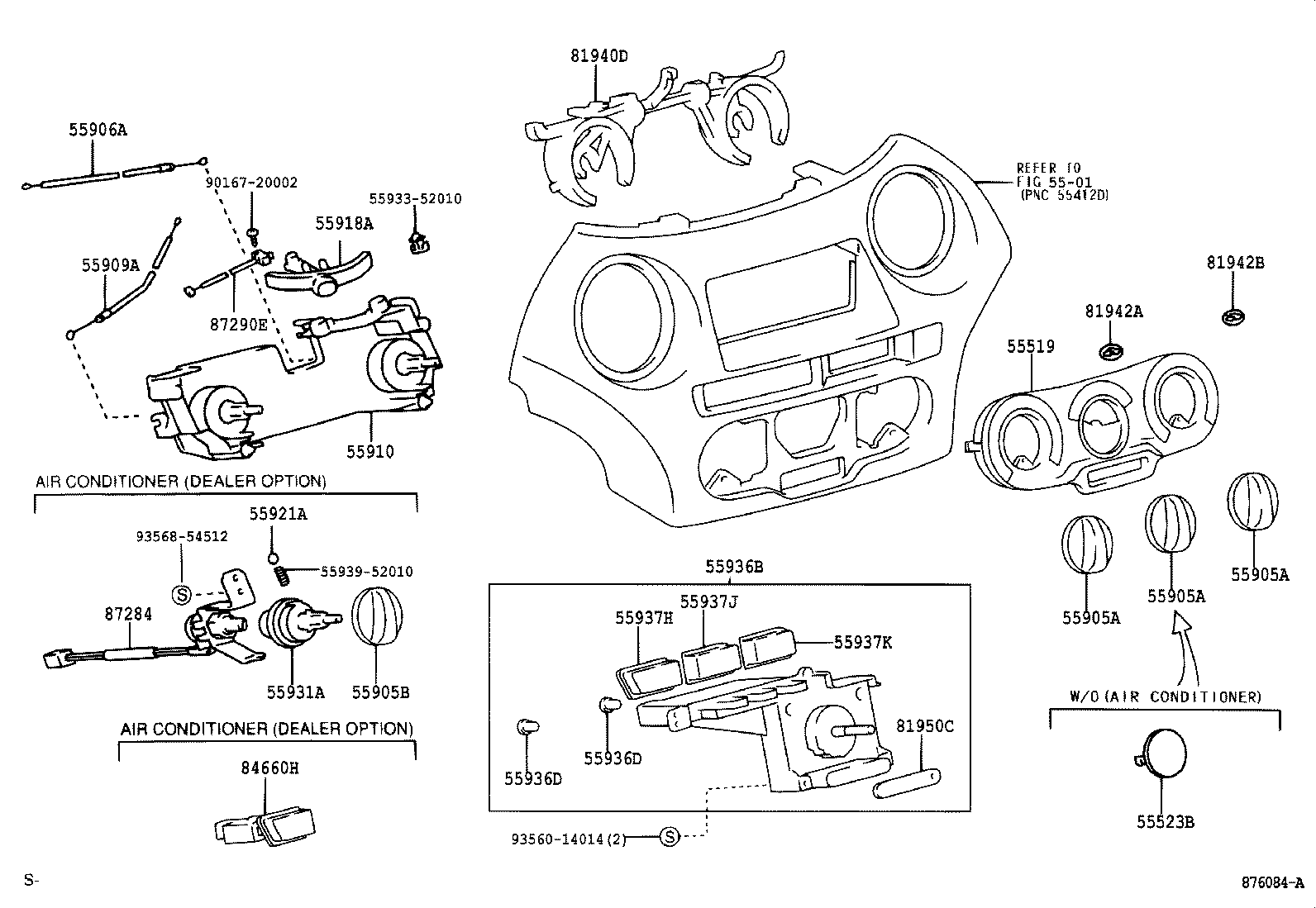

ILLUST NO. 1 OF 2(9901-0212)JPP..LHD
CONTROL---W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55523-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55523-52030B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55523-52040 |
NLP10..JPP..LHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NLP10..JPP..LHD W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55905-52080 |
NLP10..JPP..LHD |
1 | ||
| 55905-52010 |
NLP10..JPP..LHD..(SOL,TRSTD) W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55906-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55908-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52020 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP1#,NLP10,SCP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910-52020 |
NLP10..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP13,NLP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NLP10..JPP..LHD |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52070 |
NCP13,NLP10..JPP |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55921-52010 |
NLP10..JPP..LHD |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55931-52010 |
NLP10..JPP..LHD |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52100 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 84010-52120 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84010-52440 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 84010-52420 |
NCP13,NLP10..JPP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 55937-52300 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52290 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81940-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52020B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52020B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52070H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52070B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080H0 |
NCP10,NLP10,SCP10..JPP..LHD W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52080B0 |
NCP10,NLP10,SCP10..JPP..LHD W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52040H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52060B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52050B0 |
NCP10,NLP10,SCP10..JPP W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52060H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52050H0 |
NCP10,NLP10,SCP10..JPP W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81950-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NLP10..JPP TYPE A |
1 | ||
| 84660-52010 |
NLP10..JPP |
1 | ||
| 84660-52020 |
NLP10..JPP TYPE B |
1 | ||
| 84660-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660-52020 |
NCP13,NLP10..JPP DEALER OPTION |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90099-00106 | ||||
| 93560-14014 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 2(0212- )JPP..LHD
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-52050 |
NLP10..JPP..LHD |
1 | ||
| 55519-52070B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55519-52060 |
NLP10..JPP..LHD W(BOOST VENTILATOR) |
1 | ||
| 55519-52080B0 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR),DK.GRAY,TRIM97,98,99 |
1 | ||
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55523-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55523-52030B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55523-52040 |
NLP10..JPP..LHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NLP10..JPP..LHD W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55905-52080 |
NLP10..JPP..LHD |
1 | ||
| 55905-52010 |
NLP10..JPP..LHD..(SOL,TRSTD) W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55906-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55909-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52020 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP1#,NLP10,SCP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910-52020 |
NLP10..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP13,NLP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NLP10..JPP..LHD |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52070 |
NCP13,NLP10..JPP |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55921-52010 |
NLP10..JPP..LHD |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55931-52010 |
NLP10..JPP..LHD |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52100 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 84010-52120 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84010-52440 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 84010-52420 |
NCP13,NLP10..JPP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 55937-52300 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52290 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81940-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52020B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52020B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81950-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NLP10..JPP TYPE A |
1 | ||
| 84660-52010 |
NLP10..JPP |
1 | ||
| 84660-52020 |
NLP10..JPP TYPE B |
1 | ||
| 84660-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660-52020 |
NCP13,NLP10..JPP DEALER OPTION |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| 87290E - SWITCH ASSY, HEATER | ||||
| 87290-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90167-20002 | ||||
| 93560-14014 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 2(0212- )JPP..LHD
CONTROL---W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-52050 |
NLP10..JPP..LHD |
1 | ||
| 55519-52070B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55519-52060 |
NLP10..JPP..LHD W(BOOST VENTILATOR) |
1 | ||
| 55519-52080B0 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR),DK.GRAY,TRIM97,98,99 |
1 | ||
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-52010B0 |
NCP10,NLP10,SCP10..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55523-52010H0 |
NCP10,NLP10,SCP10..JPP..LHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55523-52030B0 |
NLP10..JPP..LHD..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 55523-52040 |
NLP10..JPP..LHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52080 |
NCP13,NLP10..JPP..(TRSTD,TS) |
3 | ||
| 55905-52090 |
NLP10..JPP SILVER PAINTED |
3 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR),SILVER PAINTED |
2 | ||
| 55905-52080 |
NLP10..JPP..LHD..TRSTD W(BOOST VENTILATOR) |
2 | ||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP..LHD W(BOOST VENTILATOR) |
2 | ||
| 55905-52090 |
NLP10..JPP..LHD W(BOOST VENTILATOR & AIR CONDITIONER),SILVER PAINTED |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-52010 |
NLP10..JPP..LHD W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55905-52080 |
NLP10..JPP..LHD |
1 | ||
| 55905-52010 |
NLP10..JPP..LHD..(SOL,TRSTD) W(BOOST VENT) & W(MANUAL AIR CONDITIONER = DEALOR OPTION) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP13,NLP10..JPP |
1 | ||
| 55906-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52010 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 55908-52010 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52020 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP1#,NLP10,SCP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55910-52020 |
NLP10..JPP..LHD W(AIR CONDITIONER) |
1 | ||
| 55910-52010 |
NCP13,NLP10..JPP..LHD W(HEATER) |
1 | ||
| 55910-52060 |
NLP10..JPP..LHD |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52070 |
NCP13,NLP10..JPP |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55921-52010 |
NLP10..JPP..LHD |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 55931-52010 |
NLP10..JPP..LHD |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52100 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 84010-52120 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84010-52440 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 84010-52420 |
NCP13,NLP10..JPP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP..LHD 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP13,NLP10..JPP 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52260 |
NCP13,NLP10..JPP W(MANUAL AIR CONDITIONER) |
1 | ||
| 55937-52300 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52290 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52270 |
NCP13,NLP10..JPP |
1 | ||
| 55937-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81940-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52020B2 |
NLP10..JPP..TRSTD DK.GRAY,TRIM97,98,99 |
1 | ||
| 81942-52020B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52080 |
NCP13,NLP10..JPP |
1 | ||
| 81950-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NLP10..JPP TYPE A |
1 | ||
| 84660-52010 |
NLP10..JPP |
1 | ||
| 84660-52020 |
NLP10..JPP TYPE B |
1 | ||
| 84660-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660-52020 |
NCP13,NLP10..JPP DEALER OPTION |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-52010 |
NCP10,NLP10,SCP10..JPP..LHD |
1 | ||
| 88032-52010 |
NLP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 55939-52010 | ||||
| 90099-00106 | ||||
| 93560-14014 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
