NLP10L-AGMGXW (2001)

Toyota Yaris (Jpp)

Production Oct 2001 - Aug 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

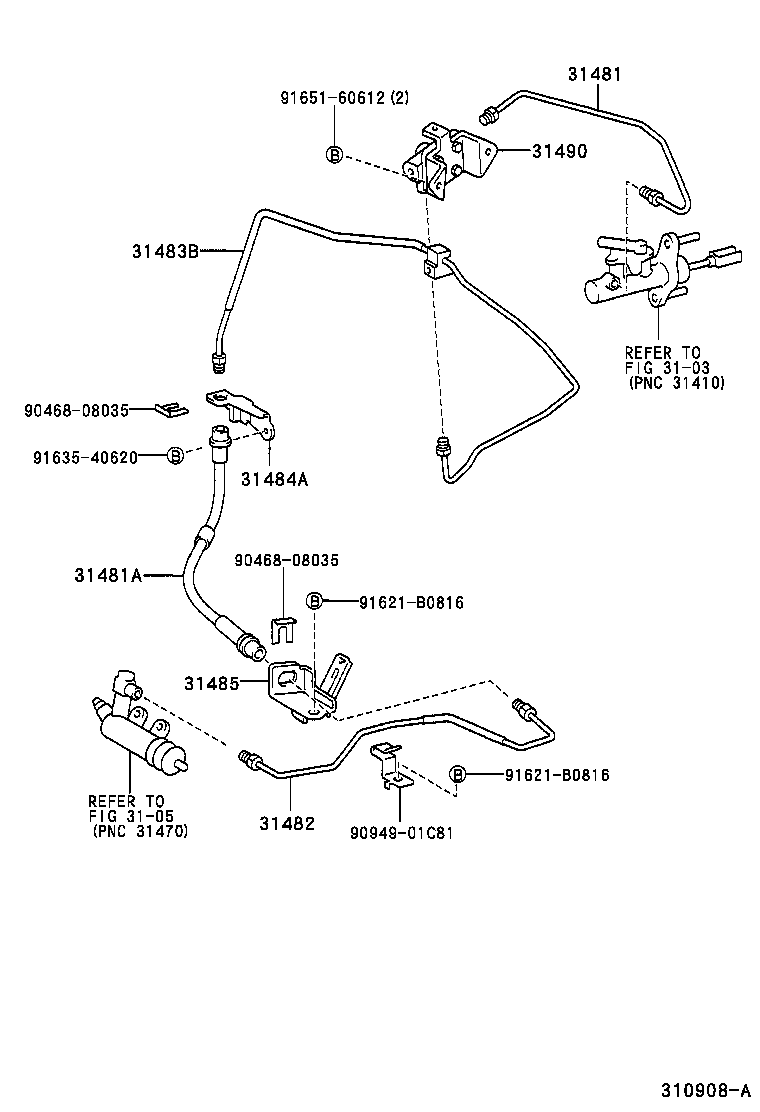

ILLUST NO. 2 OF 2(0110- )NLP10..JPP..LHD

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31483B 31484A 31485 31490 9046808035 9046808035 9094901C81 91621B0816 91621B0816 9163540620 9165160612
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-52060

NLP10..JPP..LHD

 1
31481-52060

NLP10..JPP..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90947-02D17

NLP10..JPP

 1
90947-02D17

NLP10..JPP

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-52060

NLP10..JPP

 1
31482-52060

NLP10..JPP

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-52041

NLP10..JPP..LHD

 1
31483-52041

NLP10..JPP..LHD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

NCP1#,NLP10,SCP10..JPP..5F

 1
31484-52010

NCP13,NLP10..JPP

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-52010

NLP10..JPP

 1
31485-52010

NLP10..JPP

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52010

NLP10..JPP

 1
31490-52010

NLP10..JPP

 1
Common parts
90468-08035
90949-01C81
91621-B0816
91635-40620
91651-60612
Linked diagrams
3103
3105
