NCP13L-AHMVKW (2001)
Toyota Yaris (Jpp)

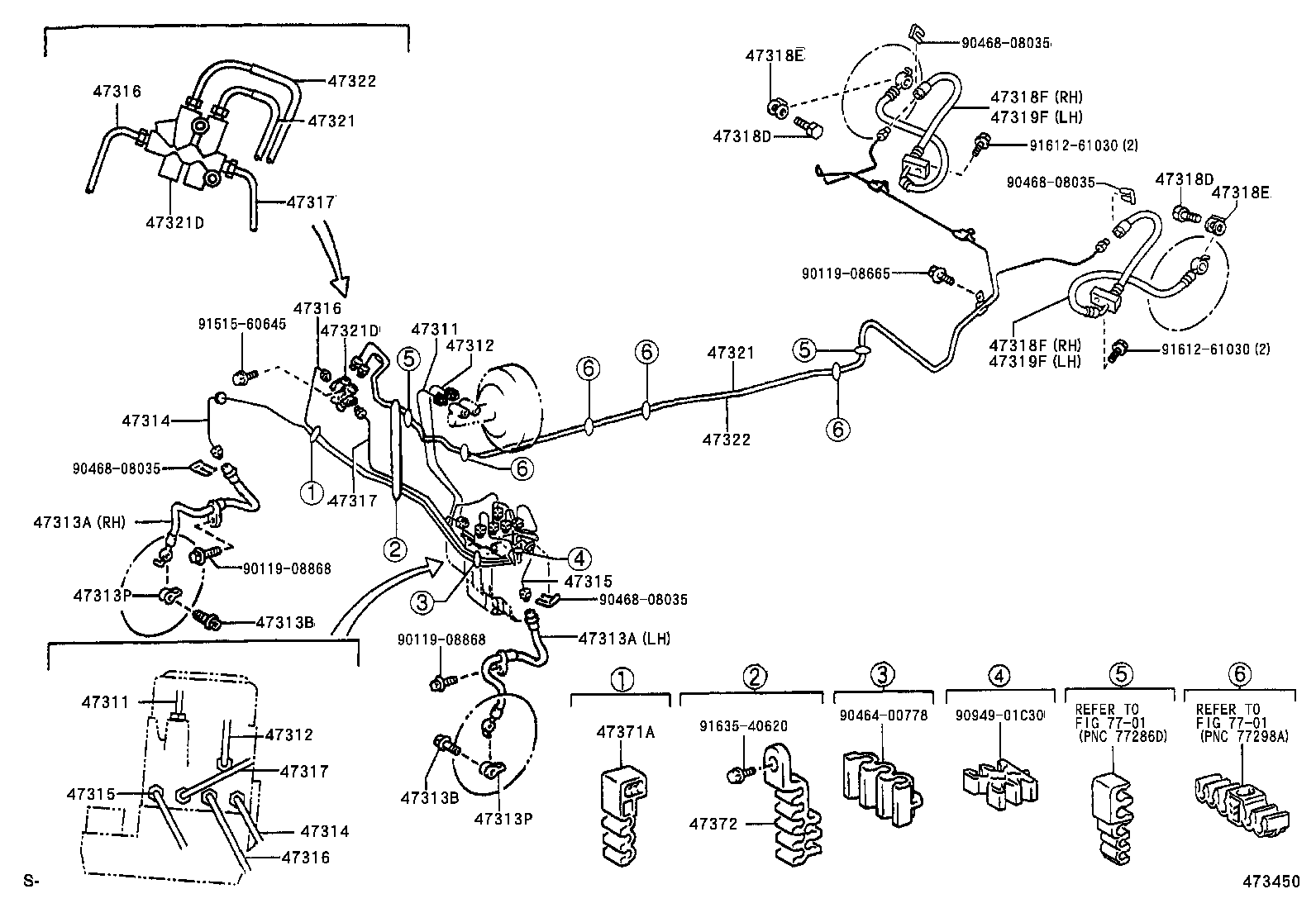

ILLUST NO. 1 OF 3(0212- )NCP13..JPP..LHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP13..JPP..LHD |
1 | ||
| 47311-52022 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311-52150 |
NCP13..JPP..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52021 |
NCP13..JPP..LHD |
1 | ||
| 47311-52022 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47311-52022 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47311-52150 |
NCP13..JPP..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52021 |
NCP13..JPP..LHD |
1 | ||
| 47312-52021 |
NCP13..JPP..LHD |
1 | ||
| 47312-52140 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52021 |
NCP13..JPP..LHD |
1 | ||
| 47312-52021 |
NCP13..JPP..LHD |
1 | ||
| 47312-52140 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP13,NLP10..JPP RH |
1 | ||
| 90947-02C32 |
NCP13,NLP10..JPP LH |
1 | ||
| 90947-02D77 |
NCP13,NLP10..JPP LH |
1 | ||
| 90947-02D76 |
NCP13,NLP10..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C31 |
NCP13,NLP10..JPP RH |
1 | ||
| 90947-02C32 |
NCP13,NLP10..JPP LH |
1 | ||
| 90947-02D77 |
NCP13,NLP10..JPP LH |
1 | ||
| 90947-02D76 |
NCP13,NLP10..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP13,NLP10..JPP |
2 | ||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP13,NLP10..JPP |
2 | ||
| 90401-10058 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP13,NLP10..JPP |
2 | ||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP13,NLP10..JPP |
2 | ||
| 47389-50020 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
NCP13..JPP..LHD |
1 | ||
| 47314-52080 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47314-52042 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47314-52081 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-52041 |
NCP13..JPP..LHD |
1 | ||
| 47314-52080 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47314-52042 |
NCP13,NLP10..JPP..LHD W(ABS) |
1 | ||
| 47314-52081 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47314-52042 |
NCP1#,NLP10,SCP10..JPP..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52041 |
NCP13..JPP..LHD |
1 | ||
| 47315-52041 |
NCP13..JPP..LHD |
1 | ||
| 47315-52080 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47315-52081 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52041 |
NCP13..JPP..LHD |
1 | ||
| 47315-52041 |
NCP13..JPP..LHD |
1 | ||
| 47315-52080 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47315-52081 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47316-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47316-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47316-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47316-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52061 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52060 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 47317-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP13,NLP10..JPP |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP13,NLP10..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP13,NLP10..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NCP13,NLP10..JPP |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C75 |
NCP13..JPP |
1 | ||
| 90947-02C75 |
NCP13..JPP |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C75 |
NCP13..JPP |
1 | ||
| 90947-02C75 |
NCP13..JPP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C76 |
NCP13..JPP |
1 | ||
| 90947-02C76 |
NCP13..JPP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C76 |
NCP13..JPP |
1 | ||
| 90947-02C76 |
NCP13..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52012 |
NCP13..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52012 |
NCP13..JPP |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP13..JPP W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NCP13..JPP W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52012 |
NCP13..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52012 |
NCP13..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47371-52010 |
NCP13,NLP10..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 47372-52010 |
NCP13,NLP10..JPP |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90119-08868 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90949-01C30 | ||||
| 91515-60645 | ||||
| 91612-61030 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 2 OF 3(0212- )NCP13..JPP
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52220 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 44050-52410 |
NCP13..JPP W(VSC) |
1 | ||
| 44050-52300 |
NCP13,NLP10..JPP |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
NCP13..JPP |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
NCP13..JPP |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP13,NLP10..JPP |
3 | ||
| 44546-17050 |
NCP13..JPP W(VSC) |
3 | ||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP13,NLP10..JPP |
3 | ||
| 44546-17050 |
NCP13..JPP W(VSC) |
3 | ||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52010 |
NCP13,NLP10..JPP |
3 | ||
| 44546-17050 |
NCP13..JPP W(VSC) |
3 | ||
| 44546-52010 |
NCP1#,NLP10,SCP10..JPP |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52021 |
NCP1#,NLP10,SCP10..JPP..LHD |
1 | ||
| 44590-52070 |
NCP13..JPP..LHD W(VSC) |
1 | ||
| 44590-52021 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 44590-52020 |
NCP1#,SCP10..JPP..LHD |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-06074 | ||||
