NCP13L-AGMVKW (2001)
Toyota Yaris (Jpp)

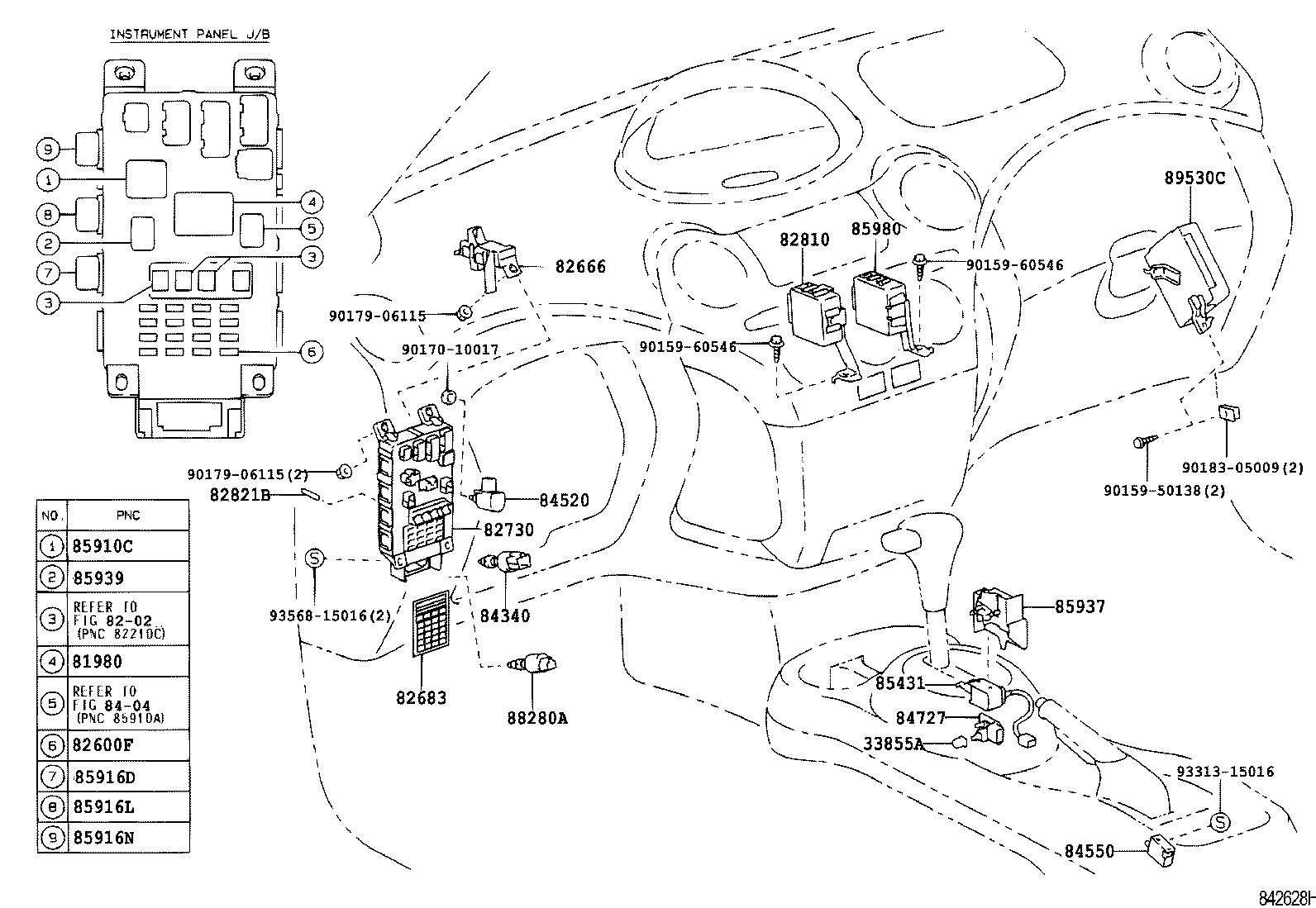

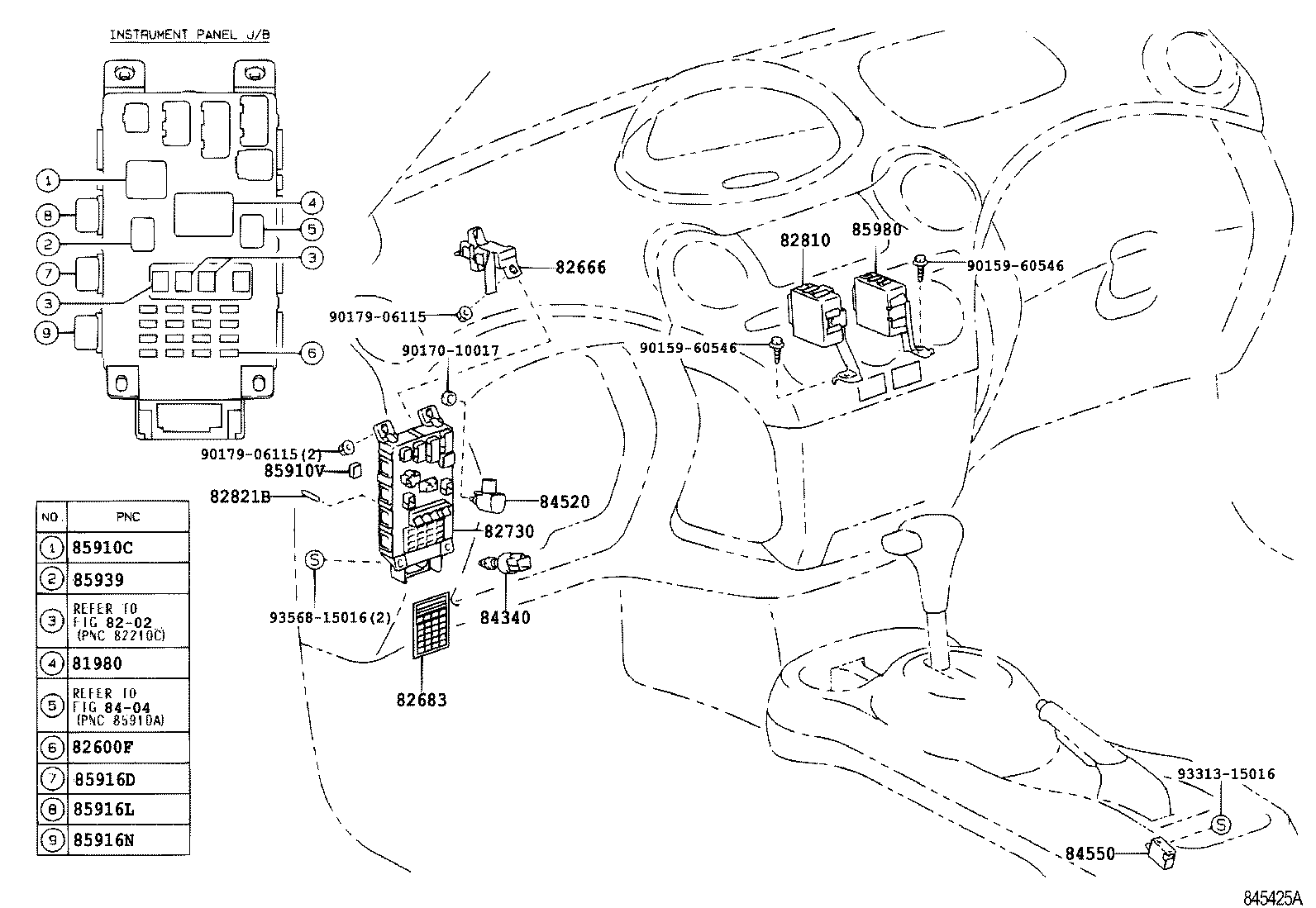

ILLUST NO. 3 OF 6(9901-0212)JPP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
NCP13,NLP10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
NCP13,NLP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
NCP13..JPP;NLP10..JPP..LHD 25A,MINI FUSE |
1 | ||
| 90982-09009 |
NCP13,NLP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
NCP13..JPP;NLP10..JPP..LHD 25A,MINI FUSE |
1 | ||
| 90982-09010 |
NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
NCP13,NLP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
NCP13,NLP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP13,NLP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP13..JPP |
1 | ||
| 82666-52010 |
NCP1#,SCP10..JPP |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52040 |
NCP13..JPP |
1 | ||
| 82683-52041 |
NCP13..JPP |
1 | ||
| 82683-52200 |
NLP10..JPP;NCP13..JPP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52020 |
NCP13,NLP10..JPP |
1 | ||
| 82732-52030 |
NCP13,NLP10..JPP..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82732-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52020 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82810-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP13..JPP |
1 | ||
| 82821-52020 |
NCP13,NLP10..JPP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
NCP1#,SCP10..JPP |
1 | ||
| 84340-32050 |
NCP13..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84550-30080 |
NCP13,NLP10..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP13,NLP10..JPP |
1 | ||
| 90987-04006 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
NCP13..JPP |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02012 |
NCP13..JPP |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02025 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52220 |
NCP13,NLP10..JPP..LHD W(KEY LESS ENTRY) |
1 | ||
| 85980-52210 |
NCP13,NLP10..JPP..LHD..(SOL,TS) |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60546 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 90183-05009 | ||||
| 93313-15016 | ||||
| 93568-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

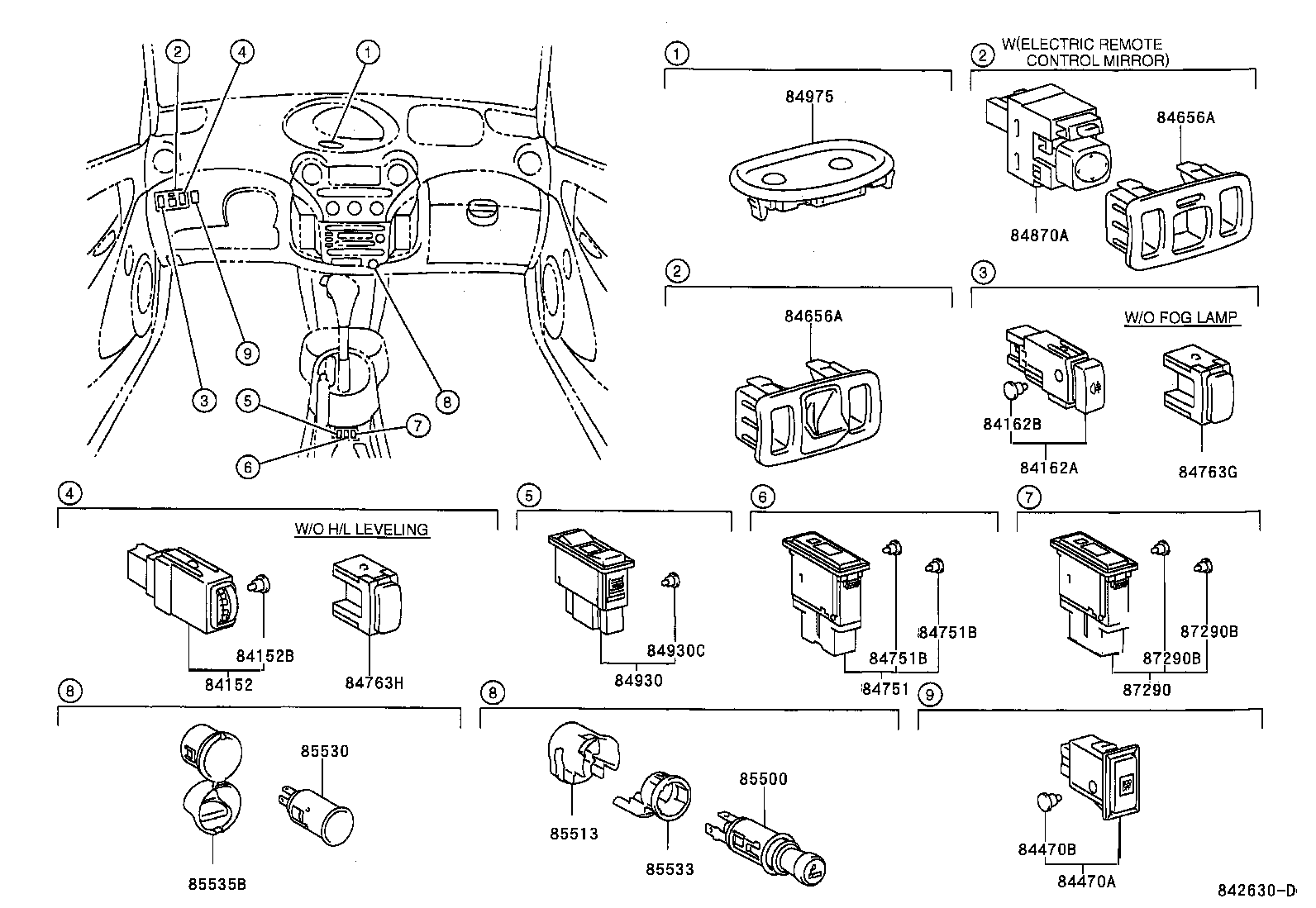

ILLUST NO. 4 OF 6(9901-0212)JPP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52030 |
NCP13..JPP |
1 | ||
| 84152-52060 |
NCP13..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10540 |
NCP13,NLP10..JPP 14V 1.19W |
1 | ||
| 84999-10540 |
NCP1#,NLP10,SCP10..JPP 14V 1.19W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84656-12040B3 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84656-12040B3 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52040 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
NCP13,NLP10..JPP..LHD 14V 0.91W |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
NCP13,NLP10..JPP..LHD 14V 0.91W |
1 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-12110B0 |
NCP13..JPP..LHD SHADOW GRAY,TRIM9# |
1 | ||
| 84763-12110B4 |
NCP13..JPP..LHD DK.GRAY,TRIM9# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
NLP10,SCP10..JPP..LHD..TRSTD;NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TS) |
1 | ||
| 84870-12130 |
NLP10..JPP..LHD..TRSTD;NCP13,NLP10..JPP..(SOL,TS) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52090B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84975-52090B1 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85500-28050 |
NCP13,NLP10..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP13,NLP10..JPP |
1 | ||
| 85513-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85530-33020 |
NCP13,NLP10..JPP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85533-30060 |
NCP13,NLP10..JPP |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85535-52050 |
NCP13,NLP10..JPP |
1 | ||

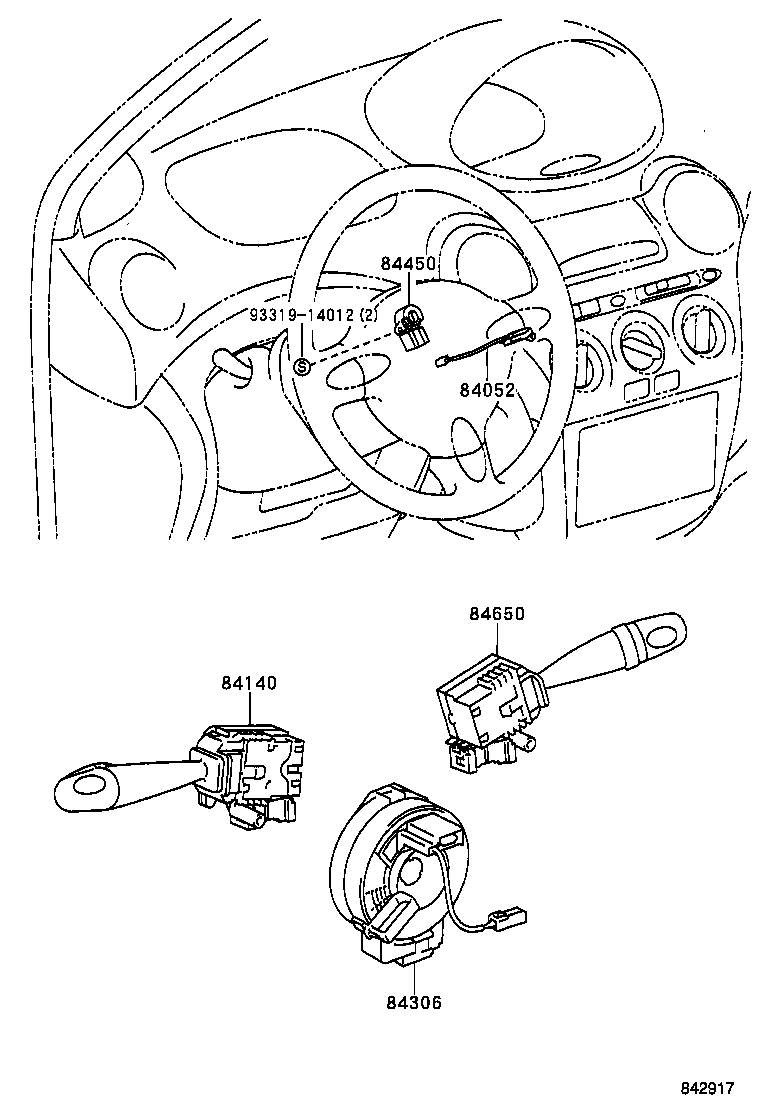

ILLUST NO. 5 OF 6(9901-0212)JPP..LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84052-60010 |
NCP13,NLP10..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52030 |
NCP13..JPP |
1 | ||
| 84140-52030 |
NCP13,NLP10..JPP W(FRONT FOG LAMP) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52050 |
NCP13..JPP W(VSC) |
1 | ||
| 84306-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84306-52050 |
NCP13..JPP |
1 | ||
| 84306-52041 |
NCP13..JPP W(VSC & RADIO LESS) |
1 | ||
| 84306-52070 |
NCP13..JPP W(RADIO LESS) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84450-52010 |
NCP13,NLP10..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52040 |
NCP13,NLP10..JPP |
1 | ||
| 84652-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||

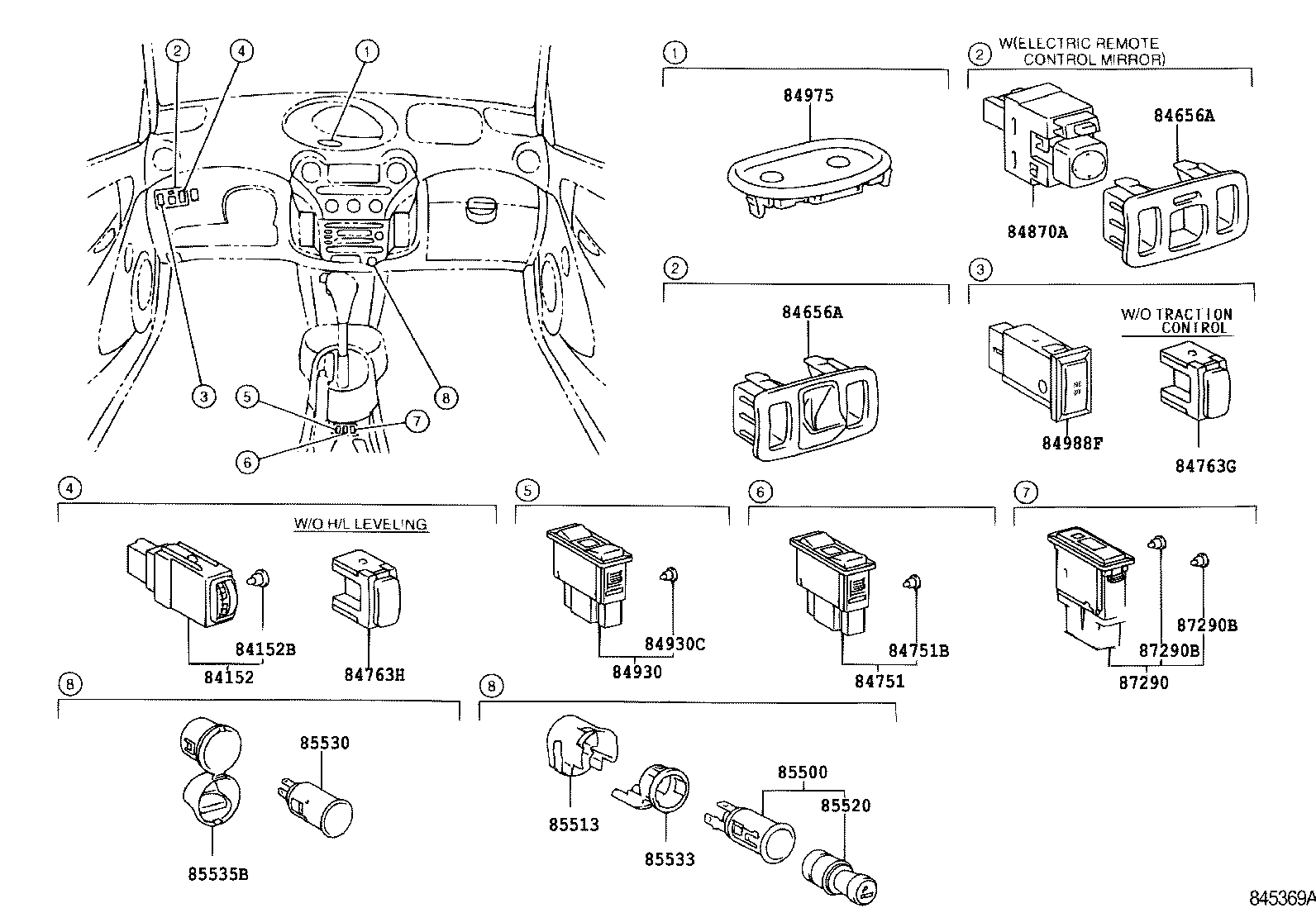

ILLUST NO. 4 OF 6(0212- )JPP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52030 |
NCP13..JPP |
1 | ||
| 84152-52060 |
NCP13..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10540 |
NCP13,NLP10..JPP 14V 1.19W |
1 | ||
| 84999-10540 |
NCP1#,NLP10,SCP10..JPP 14V 1.19W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84656-12040B3 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84656-12040B3 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52040 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10310 |
NCP13,NLP10..JPP..LHD 14V 0.91W |
1 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-12110B0 |
NCP13..JPP..LHD SHADOW GRAY,TRIM9# |
1 | ||
| 84763-12110B4 |
NCP13..JPP..LHD DK.GRAY,TRIM9# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12130 |
NLP10,SCP10..JPP..LHD..TRSTD;NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TS) |
1 | ||
| 84870-12130 |
NLP10..JPP..LHD..TRSTD;NCP13,NLP10..JPP..(SOL,TS) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52090B0 |
NCP13..JPP SHADOW GRAY,TRIM9# |
1 | ||
| 84975-52090B1 |
NCP13..JPP DK.GRAY,TRIM9# |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-52030 |
NCP13..JPP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85500-28050 |
NCP13,NLP10..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP13,NLP10..JPP |
1 | ||
| 85513-12020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP13,NLP10..JPP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85530-33020 |
NCP13,NLP10..JPP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85533-30060 |
NCP13,NLP10..JPP |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85535-52050 |
NCP13,NLP10..JPP |
1 | ||

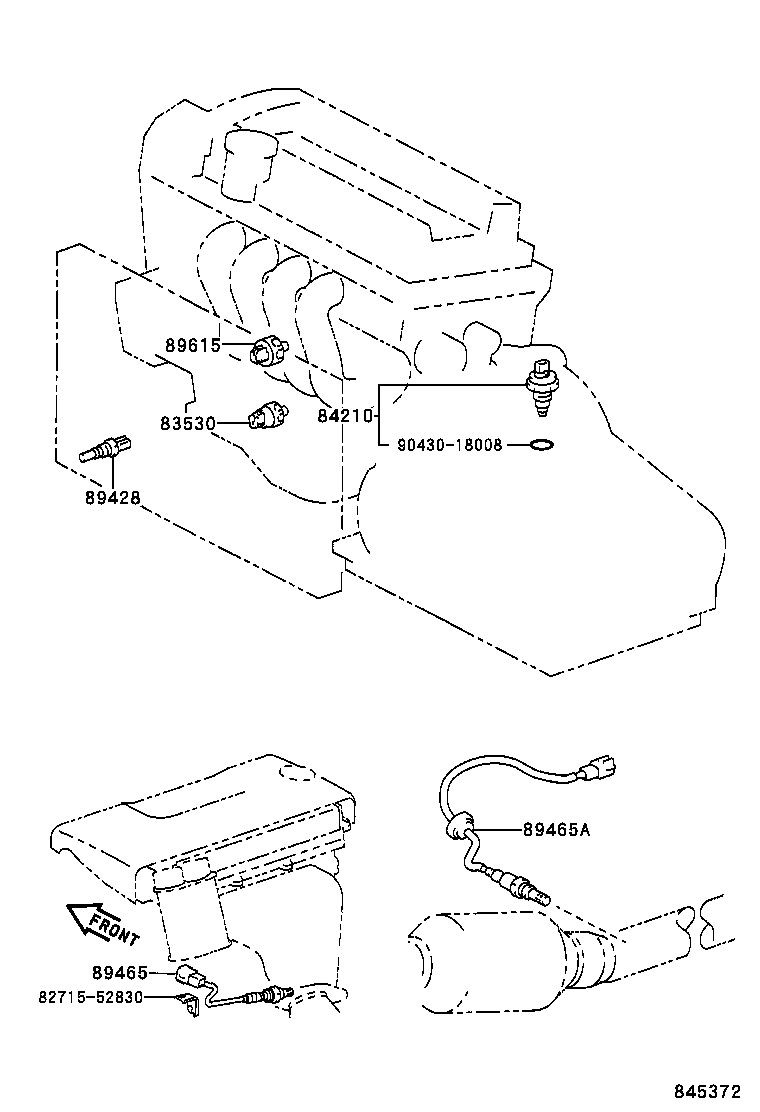

ILLUST NO. 1 OF 6(0212- )NCP13..JPP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP1#,SCP10..JPP DENSO |
1 | ||
| 83530-28020 |
NCP13..JPP DENSO |
1 | ||
| 83530-60020 |
NCP1#,SCP10..JPP YAZAKI |
1 | ||
| 83530-60020 |
NCP13..JPP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NCP13,NLP10..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP13..JPP |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52220 |
NCP13..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52040 |
NCP13..JPP TOYOTA |
1 | ||
| 89615-52030 |
NCP13..JPP |
1 | ||
| 89615-52030 |
NCP13..JPP DENSO |
1 | ||
| Common parts | ||||
| 82715-52830 | ||||
| 90430-18008 | ||||

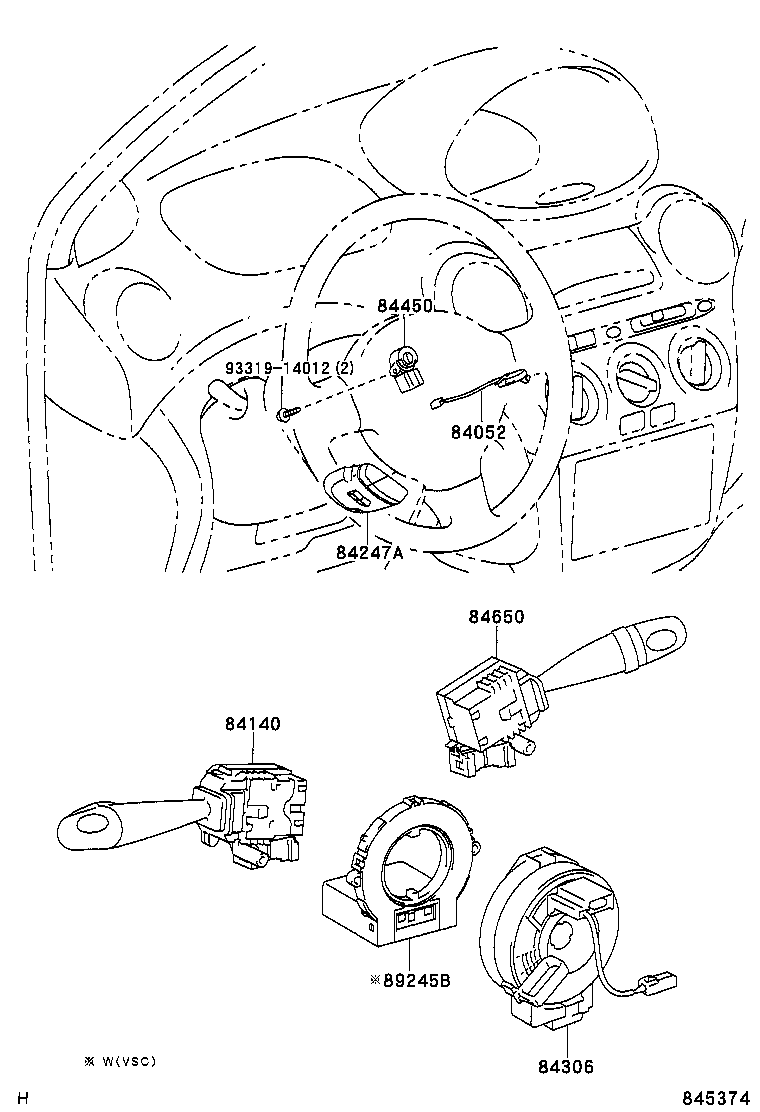

ILLUST NO. 5 OF 6(0212- )JPP..LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP13,NLP10..JPP |
1 | ||
| 84052-60010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52030 |
NCP13..JPP |
1 | ||
| 84140-52030 |
NCP13,NLP10..JPP W(FRONT FOG LAMP) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-0D010 |
NCP13,NLP10..JPP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52050 |
NCP13..JPP W(VSC) |
1 | ||
| 84306-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84306-52050 |
NCP13..JPP |
1 | ||
| 84306-52041 |
NCP13..JPP W(VSC & RADIO LESS) |
1 | ||
| 84306-52070 |
NCP13..JPP W(RADIO LESS) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84450-52010 |
NCP13,NLP10..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52040 |
NCP13,NLP10..JPP |
1 | ||
| 84652-52040 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52010 |
NCP13..JPP |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
ILLUST NO. 3 OF 6(0212- )JPP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
NCP13,NLP10..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
NCP1#,NLP10,SCP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
NCP1#,NLP10,SCP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
NCP13,NLP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
NCP1#,NLP10,SCP10..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
NCP13..JPP;NLP10..JPP..LHD 25A,MINI FUSE |
1 | ||
| 90982-09009 |
NCP13,NLP10..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
NCP1#,NLP10,SCP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
NCP13..JPP;NLP10..JPP..LHD 25A,MINI FUSE |
1 | ||
| 90982-09010 |
NCP1#,NLP10,SCP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
NCP13,NLP10..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
NCP13,NLP10..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
NCP13,NLP10..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP13..JPP |
1 | ||
| 82666-52010 |
NCP1#,SCP10..JPP |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52040 |
NCP13..JPP |
1 | ||
| 82683-52041 |
NCP13..JPP |
1 | ||
| 82683-52200 |
NLP10..JPP;NCP13..JPP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52020 |
NCP13,NLP10..JPP |
1 | ||
| 82732-52030 |
NCP13,NLP10..JPP..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82732-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-52020 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 82810-52020 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP13..JPP |
1 | ||
| 82821-52020 |
NCP13,NLP10..JPP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
NCP1#,SCP10..JPP |
1 | ||
| 84340-32050 |
NCP13..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84550-30080 |
NCP13,NLP10..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NCP13,NLP10..JPP |
1 | ||
| 90987-04006 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
NCP13..JPP |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02012 |
NCP13..JPP |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02025 |
NCP13,NLP10..JPP..LHD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 90987-02027 |
NCP13,NLP10..JPP |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52220 |
NCP13,NLP10..JPP..LHD W(KEY LESS ENTRY) |
1 | ||
| 85980-52210 |
NCP13,NLP10..JPP..LHD..(SOL,TS) |
1 | ||
| Common parts | ||||
| 90159-60546 | ||||
| 90170-10017 | ||||
| 90179-06115 | ||||
| 93313-15016 | ||||
| 93568-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
