Toyota Yaris (jpp) NCP13 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
YARIS (JPP)
NCP13L-AGMVKW (2001)
5201 - FRONT BUMPER & BUMPER STAY

NCP13L-AGMVKW (2001)

Toyota Yaris (Jpp)

Production Jan 2001 - Aug 2005

Engine 1NZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0101-0212)NCP13..JPP

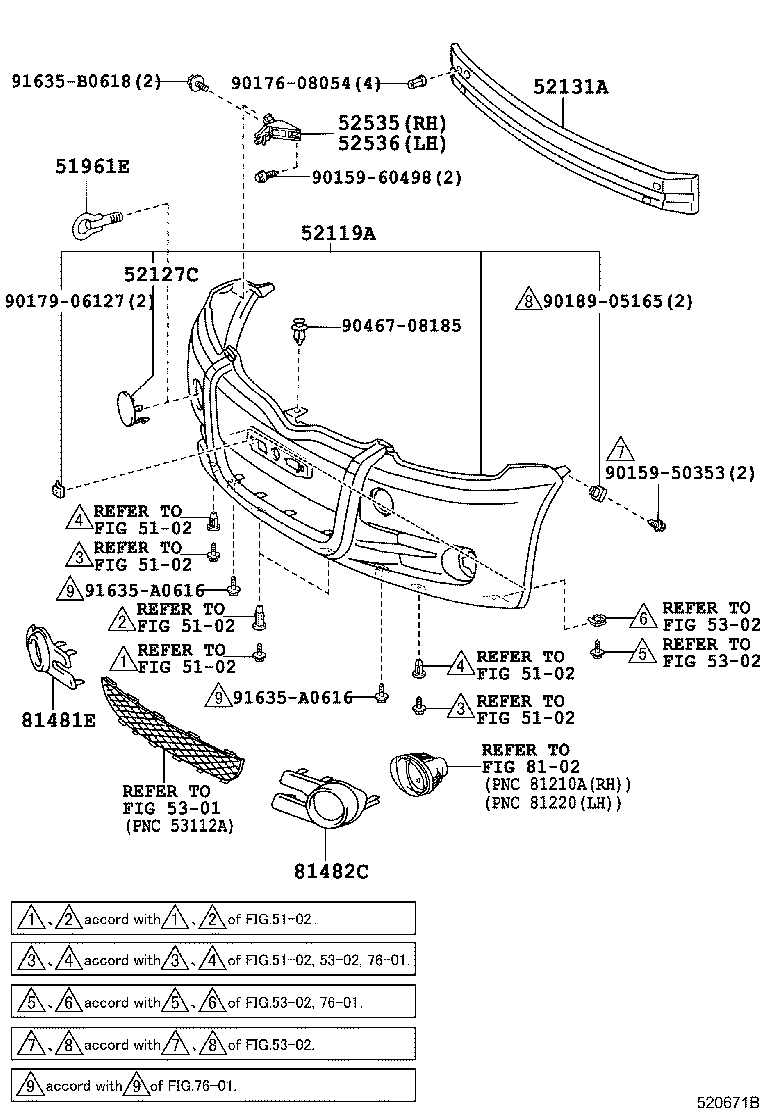

Click highlighted areas on diagram

Part #	Description	Period	Qty
51961E - HOOK, FRONT
51960-52040	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
51960-52010	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
51960-52040	NCP13,NLP10..JPP	12/2002 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-52918	NCP13..JPP	12/2002 - 08/2005	1
52119-52908	NCP13..JPP	01/2001 - 12/2002	1
52127C - COVER, FRONT BUMPER HOLE
52127-52090D0	NCP13..JPP SUPER RED 5,3P0	01/2001 - 12/2002	1
52127-52090F0	NCP13..JPP YELLOW M.M.,580	01/2001 - 12/2002	1
52127-52090B0	NCP13..JPP GRAY ME.,1D2	01/2001 - 12/2002	1
52127-52090J0	NCP13..JPP STRONG BLUE M,8B6	01/2001 - 12/2002	1
52721-52900	NCP13..JPP UNPAINTED	12/2002 - 08/2005	1
52127-52090C0	NCP13..JPP BLACK MC.,209	01/2001 - 12/2002	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52070	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52011	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
52535-52012	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
52535-52012	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52012	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52536-52012	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
52536-52011	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
81481E - COVER, FOG LAMP, RH
81481-52010	NCP13..JPP	01/2001 - 12/2002	1
81482C - COVER, FOG LAMP, LH
81482-52010	NCP13..JPP	01/2001 - 12/2002	1
Common parts
90159-50353
90159-60498
90176-08054
90179-06127
90189-05165
90467-08185
91635-A0616
91635-B0618
Linked diagrams
5102
5301
5302
8102

(0212- )NCP13..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
51961E - HOOK, FRONT
51960-52040	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
51960-52010	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
51960-52040	NCP13,NLP10..JPP	12/2002 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-52918	NCP13..JPP	12/2002 - 08/2005	1
52119-52908	NCP13..JPP	01/2001 - 12/2002	1
52127C - COVER, FRONT BUMPER HOLE
52127-52090D0	NCP13..JPP SUPER RED 5,3P0	01/2001 - 12/2002	1
52127-52090F0	NCP13..JPP YELLOW M.M.,580	01/2001 - 12/2002	1
52127-52090B0	NCP13..JPP GRAY ME.,1D2	01/2001 - 12/2002	1
52127-52090J0	NCP13..JPP STRONG BLUE M,8B6	01/2001 - 12/2002	1
52721-52900	NCP13..JPP UNPAINTED	12/2002 - 08/2005	1
52127-52090C0	NCP13..JPP BLACK MC.,209	01/2001 - 12/2002	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52070	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52011	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
52535-52012	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
52535-52012	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52012	NCP13,NLP10..JPP	12/2002 - 08/2005	1
52536-52012	NCP1#,NLP10,SCP10..JPP	12/2001 - 12/2002	1
52536-52011	NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2001	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52060	NCP13..JPP	12/2002 - 08/2005	1
52711 - MOULDING, FRONT BUMPER
52711-52040	NCP13..JPP	12/2002 - 12/2999	1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-52900	NCP13..JPP UNPAINTED	12/2002 - 08/2005	1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-52900	NCP13..JPP UNPAINTED	12/2002 - 08/2005	1
Common parts
62699-52010
90119-06451
90159-50353
90159-60498
90176-08054
90179-06127
90189-05165
90467-08185
91631-B0614
91635-A0616
Linked diagrams
5102
5302
8102

NCP13L-AGMVKW (2001)

(0101-0212)NCP13..JPP

(0212- )NCP13..JPP
