NCP10R-AHPGKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )JPP..RHD..4FC

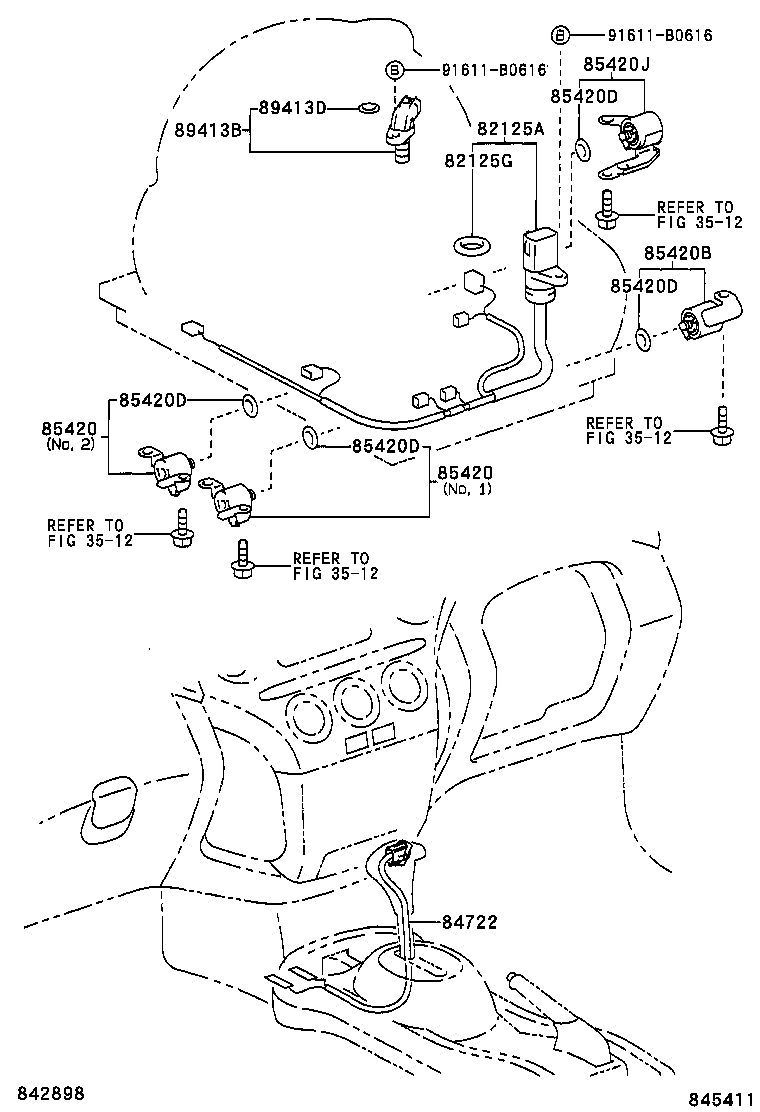

Click highlighted areas on diagram

diagram 3512 3512 3512 3512 82125A 82125G 84722 85420 85420 85420B 85420D 85420D 85420D 85420D 85420J 89413B 89413D 91611B0616 91611B0616
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-52020

NCP10..JPP..4FC

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
90301-21009

NCP10..JPP..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-52010B0

NCP10..JPP..RHD..4FC

BLUE GLAY,TRIM1#

 1
84722-52010G0

NCP10..JPP..RHD..4FC

MIST GREEN,TRIM7#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-52010

NCP10..JPP..4FC

NO.1 & NO.2 DENSO

 2
85420-52020

NCP10..JPP..4FC

NO.1 & NO.2 AISIN

 2
35250-52020

NCP10..JPP..4FC

NO.1 & NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-52010

NCP10..JPP..4FC

NO.1 & NO.2 DENSO

 2
85420-52020

NCP10..JPP..4FC

NO.1 & NO.2 AISIN

 2
35250-52020

NCP10..JPP..4FC

NO.1 & NO.2

 2
85420B - SOLENOID ASSY, TRANSMISSION
35250-52050

NCP10..JPP..4FC

 1
85420-52030

NCP10..JPP..4FC

DENSO

 1
85420-52040

NCP10..JPP..4FC

AISIN

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

NCP10..JPP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

NCP10..JPP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

NCP10..JPP..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

NCP10..JPP..4FC

 4
85420J - SOLENOID ASSY, TRANSMISSION
35250-52070

NCP10..JPP..4FC

AISIN

 1
35250-52060

NCP10..JPP..4FC

DENSO

 1
85420-52050

NCP10..JPP..4FC

TOYOTA

 1
85420-52060

NCP10..JPP..4FC

AISIN

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

NCP10..JPP..4FC

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP10..JPP..4FC

 1
Common parts
91611-B0616
Linked diagrams
3512
