NCP10R-AHPGKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )JPP

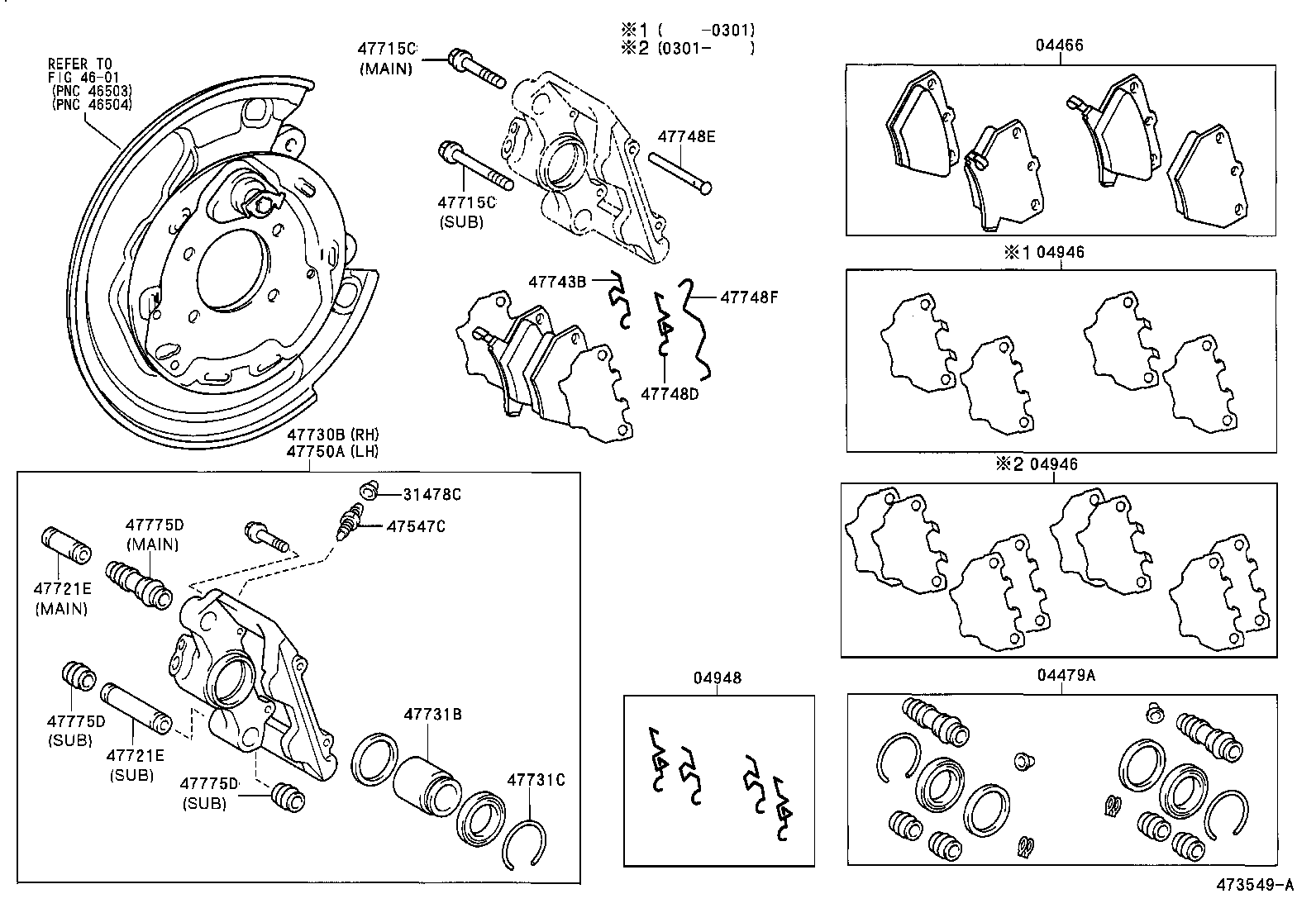

Click highlighted areas on diagram

diagram 04466 04479A 04946 04946 04948 31478C 4601 47547C 47715C 47715C 47721E 47721E 47730B 47731B 47731C 47743B 47748D 47748E 47748F 47750A 47775D 47775D 47775D
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-52030

NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MARK AK PA511H

 1
04466-52040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MARK AK PA511H

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-52010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-20020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-20020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-20010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-35020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-20040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 2
47715-20030

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-20040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 2
47715-20030

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47721E - COLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)
90389-10054

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 2
90389-10053

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47721E - COLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)
90389-10054

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 2
90389-10053

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-52040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
47731B - PISTON, REAR DISC BRAKE
47731-52020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-37001

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-20030

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-20040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47748E - PIN, W/HOLE(FOR REAR DISC BRAKE)
90240-06021

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 4
47748F - CLIP(FOR REAR DISC BRAKE)
90468-12025

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-52040

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-22020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47775-42010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-22020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47775-42010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-22020

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

MAIN

 2
47775-42010

NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS)

SUB

 4
