Toyota Yaris (jpp) NCP10 ALTERNATOR

NCP10R-AHPGKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002

Engine 2NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9901-0212)JPP

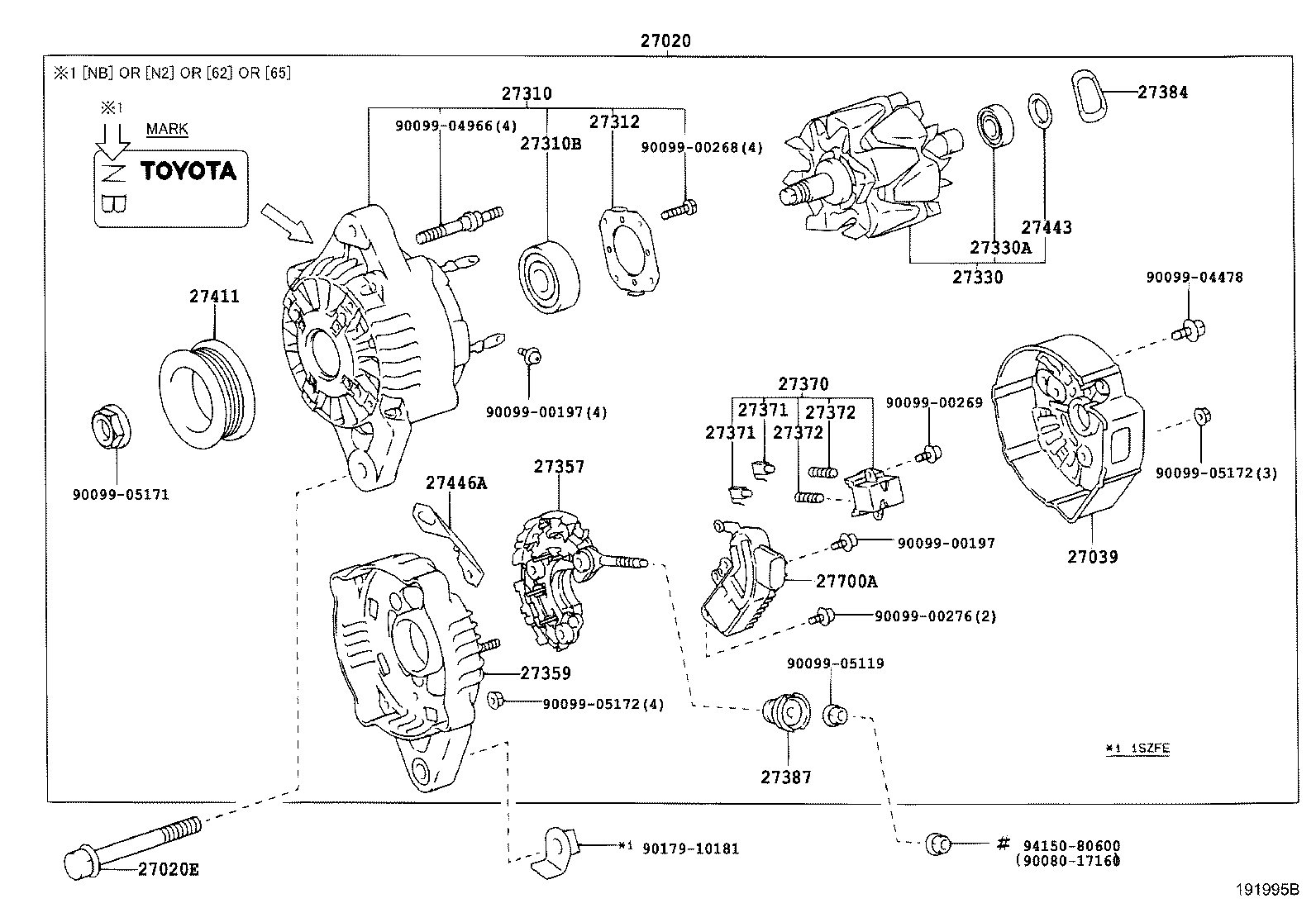

Click highlighted areas on diagram

12V 70A(MARK = NB,N2,62,65)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-21010	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27020E - BOLT(FOR ALTERNATOR)
90105-10075	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
27039 - COVER, ALTERNATOR REAR END
27039-21060	1NDTV,2NZFE..NCP10,NLP10..JPP 12V 70A	04/2001 - 12/2002	1
27039-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 04/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10220	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27312 - PLATE, RETAINER
27312-72100	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10216	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	04/2002 - 12/2002	1
27357-67100	2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 04/2002	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060	1NDTV,2NZFE..NCP10,NLP10..JPP 12V 70A	08/1999 - 12/2002	1
27371 - BRUSH, ALTERNATOR
27371-70300	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2002	2
27371 - BRUSH, ALTERNATOR
27371-70300	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2002	2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)	12/2000 - 12/2002	2
27372-63020	2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2000	2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD)	12/2000 - 12/2002	2
27372-63020	2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD)	01/1999 - 12/2000	2
27384 - WASHER
27384-16380	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27387 - INSULATOR, TERMINAL
27387-70171	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27411 - PULLEY, ALTERNATOR
27411-65010	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2002	1
27446A - CLAMP
27446-21020	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
27700A - REGULATOR ASSY, GENERATOR
27700-21010	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
Common parts
90080-17160
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90179-10181
94150-80600

(9901-0212)JPP

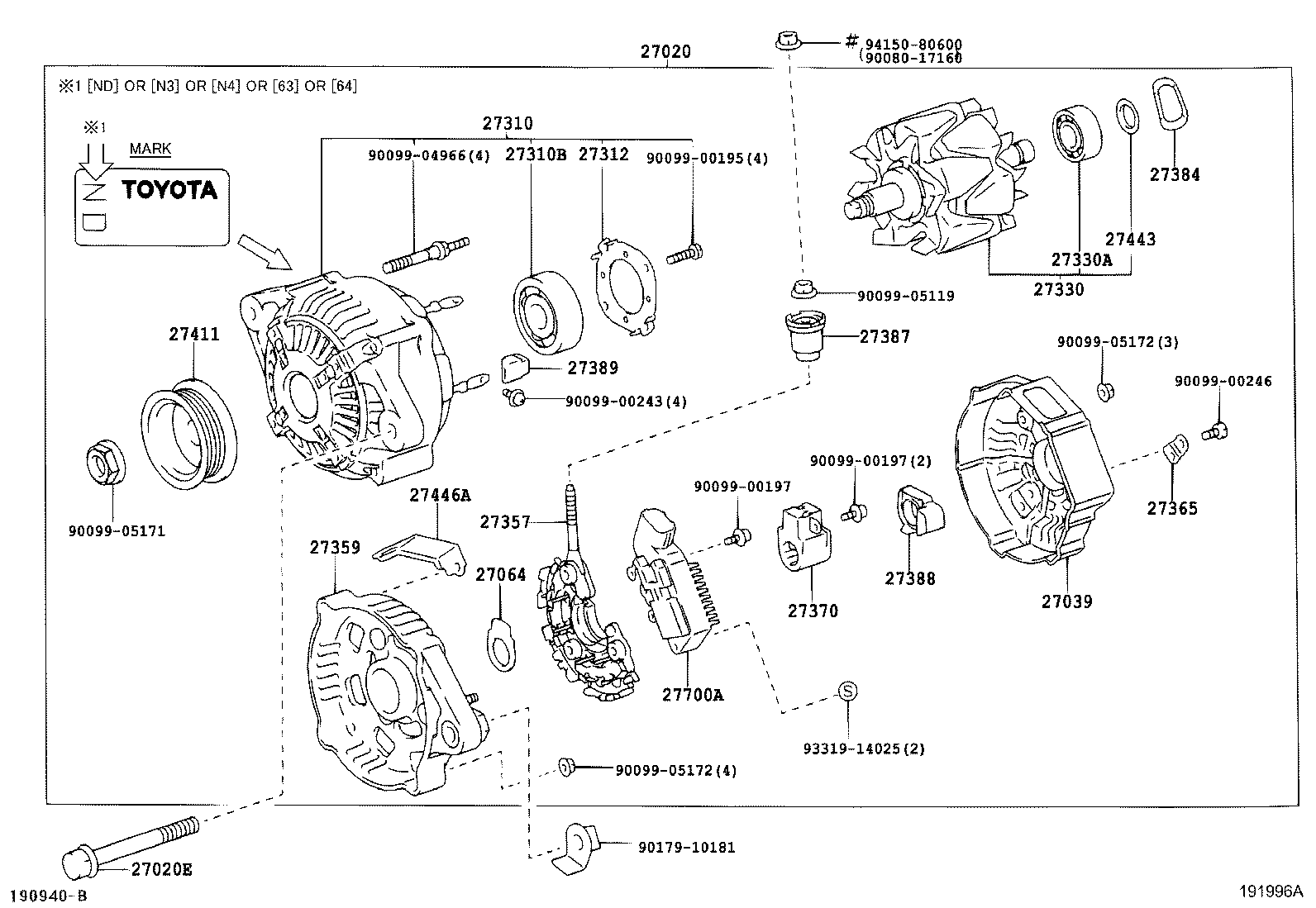

Click highlighted areas on diagram

12V 80A,90A(MARK = ND,N3,N4,63,64)

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-21010	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27020E - BOLT(FOR ALTERNATOR)
90105-10075	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
27039 - COVER, ALTERNATOR REAR END
27039-21060	1NDTV,2NZFE..NCP10,NLP10..JPP 12V 70A	04/2001 - 12/2002	1
27039-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 04/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10220	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27312 - PLATE, RETAINER
27312-72100	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10216	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	04/2002 - 12/2002	1
27357-67100	2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 04/2002	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-21020	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060	1NDTV,2NZFE..NCP10,NLP10..JPP 12V 70A	08/1999 - 12/2002	1
27384 - WASHER
27384-16380	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27387 - INSULATOR, TERMINAL
27387-70171	1NDTV,2NZFE,1SZFE..NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 70A	01/1999 - 12/2002	1
27411 - PULLEY, ALTERNATOR
27411-65010	2NZFE..NCP10..JPP 12V 70A	08/1999 - 12/2002	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1N#,2NZFE,1SZFE..NCP1#,NLP10,SCP10..JPP	01/1999 - 12/2002	1
27446A - CLAMP
27446-21020	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
27700A - REGULATOR ASSY, GENERATOR
27700-21010	1N#,2NZFE..NCP1#,NLP10..JPP	08/1999 - 12/2002	1
Common parts
90080-17160
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90179-10181
93319-14025
94150-80600
