NCP10R-AGPGKW (1999)
Toyota Yaris (Jpp)

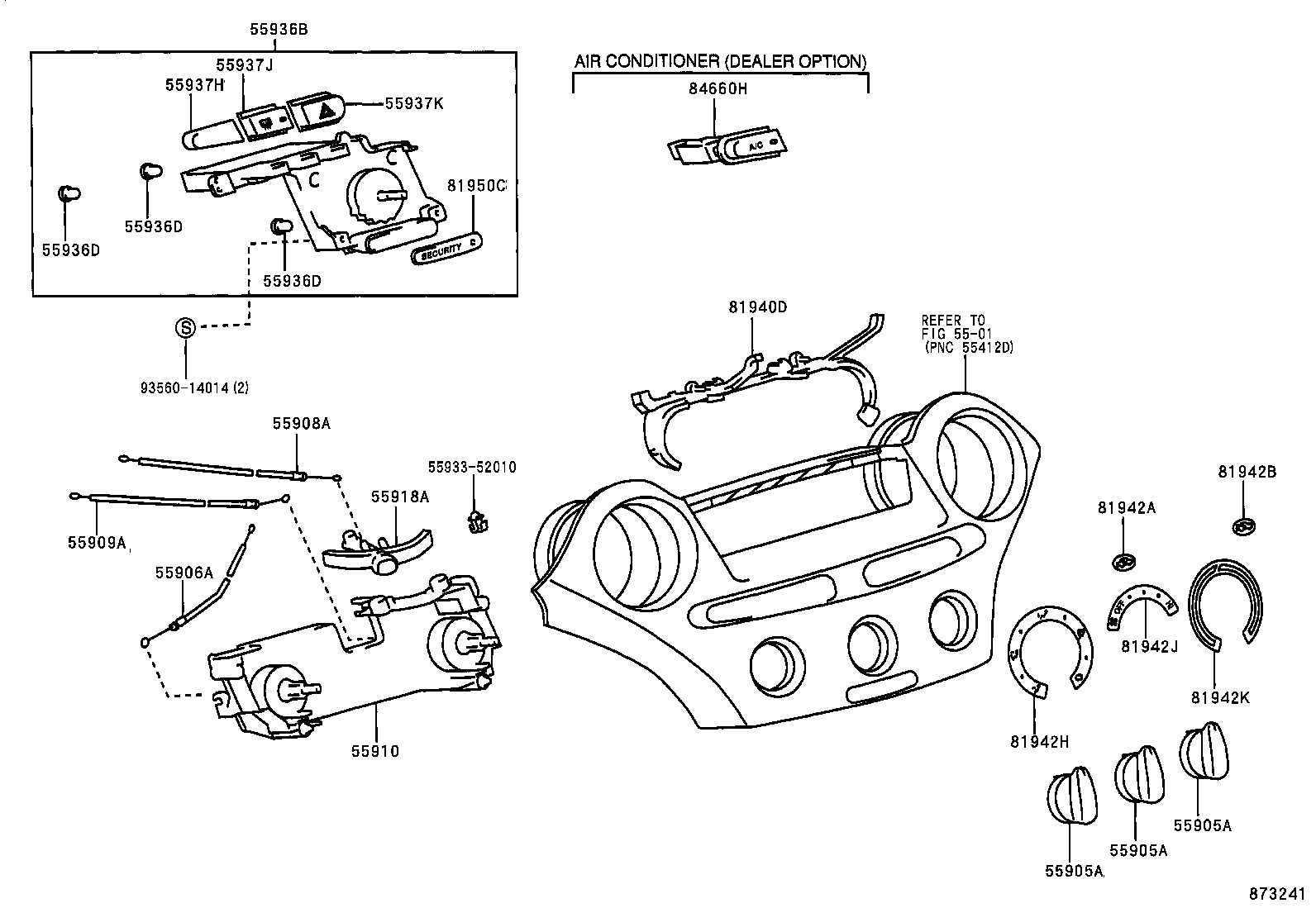

ILLUST NO. 1 OF 2(9901-0212)JPP..RHD
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-52010 |
NCP10,NLP10,SCP10..JPP |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52020 |
NCP1#,NLP10,SCP10..JPP..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52020 |
NCP1#,NLP10,SCP10..JPP..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-52030 |
NCP1#,NLP10..JPP..RHD;SCP10..JPP..RHD..LUNA |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55918-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55936B - SWITCH, CENTER CLUSTER MODULE | ||||
| 84010-52100 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 84010-52120 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP1#,NLP10,SCP10..JPP..RHD 14V,1.4W |
1 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP1#,NLP10,SCP10..JPP..RHD 14V,1.4W |
1 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 55936D - BLUB, CENTER CLUSTER MODULE SWITCH | ||||
| 90010-01047 |
NCP1#,NLP10,SCP10..JPP..RHD 14V,1.4W |
1 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 84999-10530 |
NCP1#,NLP10,SCP10..JPP 14V 1.8W |
2 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937-52010 |
NCP1#,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD,TS) W(AIR CONDITIONER) |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-52030 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 55937K - KNOB, CENTER CLUSTER MODULE, NO.7 | ||||
| 55937-52060 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81940D - LENS ASSY, HEATER CONTROL | ||||
| 81940-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-52010H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52010B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-52020H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52020B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-52030B0 |
NCP10,SCP10..JPP..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52080H0 |
NCP10,NLP10,SCP10..JPP..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52030H0 |
NCP10,SCP10..JPP..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942-52080B0 |
NCP10,NLP10,SCP10..JPP..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-52040B0 |
NCP10,NLP10,SCP10..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52040H0 |
NCP10,NLP10,SCP10..JPP FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81942-52050B0 |
NCP10,NLP10,SCP10..JPP W(HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-52050H0 |
NCP10,NLP10,SCP10..JPP W(HEATER),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR | ||||
| 81950-52020 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| Common parts | ||||
| 55933-52010 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
