NCP10R-AGMNKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )NCP1#..JPP..RHD

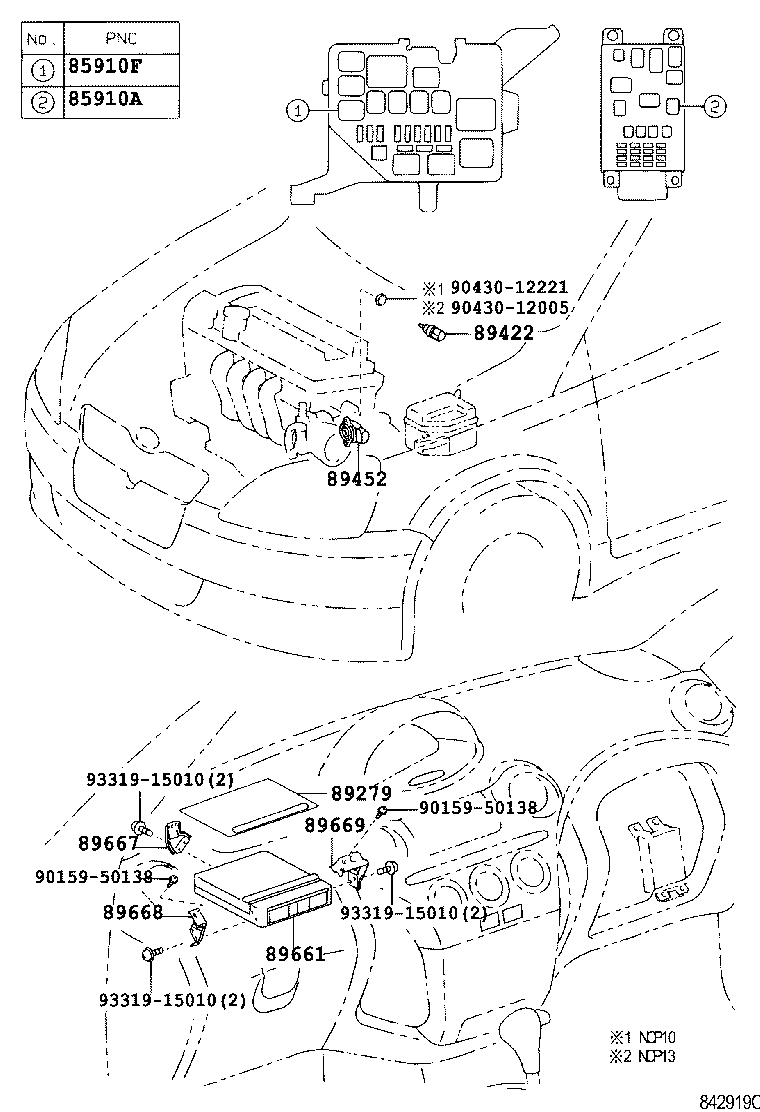

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89422 89452 89661 89667 89668 89669 9015950138 9015950138 9043012005 9043012221 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

NCP1#,SCP10..JPP

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02022

NCP1#,SCP10..JPP

 1
90987-02012

NCP1#,SCP10..JPP

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-52040

NCP1#,SCP10..JPP

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-16010

NCP1#,SCP10..JPP

MARK 89422-16010*369

 1
89422-22030

NCP1#,SCP10..JPP

MARK 89422-22030*369

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

NCP1#..JPP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-52130

NCP10..JPP..5F

PART NUMBER LABEL=89661-52130

 1
89661-52080

NCP10..JPP..5F

PART NUMBER LABEL=89661-52080

 1
89661-52081

NCP10..JPP..5F

PART NUMBER LABEL=89661-52081

 1
89661-52082

NCP10..JPP..5F

PART NUMBER LABEL=89661-52082

 1
89661-52132

NCP10..JPP..5F

PART NUMBER LABEL=89661-52132

 1
89661-52131

NCP10..JPP..5F

PART NUMBER LABEL=89661-52131

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52010

NCP1#,SCP10..JPP..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52010

NCP1#,SCP10..JPP..RHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-52010

NCP1#,SCP10..JPP..RHD

 1
Common parts
90159-50138
90430-12005
90430-12221
93319-15010
