NCP10L-AHPGKW (1999)
Toyota Yaris (Jpp)
(9901-0212)JPP
12V 0.8KW, 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28011-76070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) |
1 | ||
| 28013-70030 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28100-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1#..JPP 12V 1.0KW |
1 | ||
| 28100-21062 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28110-21020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28110-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-70020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-66040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28120-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 1.0KW |
2 | ||
| 90099-14064 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 1.0KW |
2 | ||
| 90099-14064 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46220 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28130-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28130-13080 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28130-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
1NZFE,2NZFE..NCP1#..JPP;1SZFE..SCP10..JPP..LUNA 12V 0.8KW,1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28140-76070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
1NZFE,2NZFE..NCP1#..JPP;1SZFE..SCP10..JPP..LUNA 12V 0.8KW,1.0KW |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
1NZFE,2NZFE..NCP1#..JPP;1SZFE..SCP10..JPP..LUNA 12V 0.8KW,1.0KW |
4 | ||
| 90099-17112 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-46220 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28160-74070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
1NZFE,2NZFE..NCP1#..JPP;1SZFE..SCP10..JPP..LUNA 12V 0.8KW,1.0KW |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28177-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
3 | ||
| 28255-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-00270 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-04448 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91612-61050 | ||||
| 91612-61065 | ||||

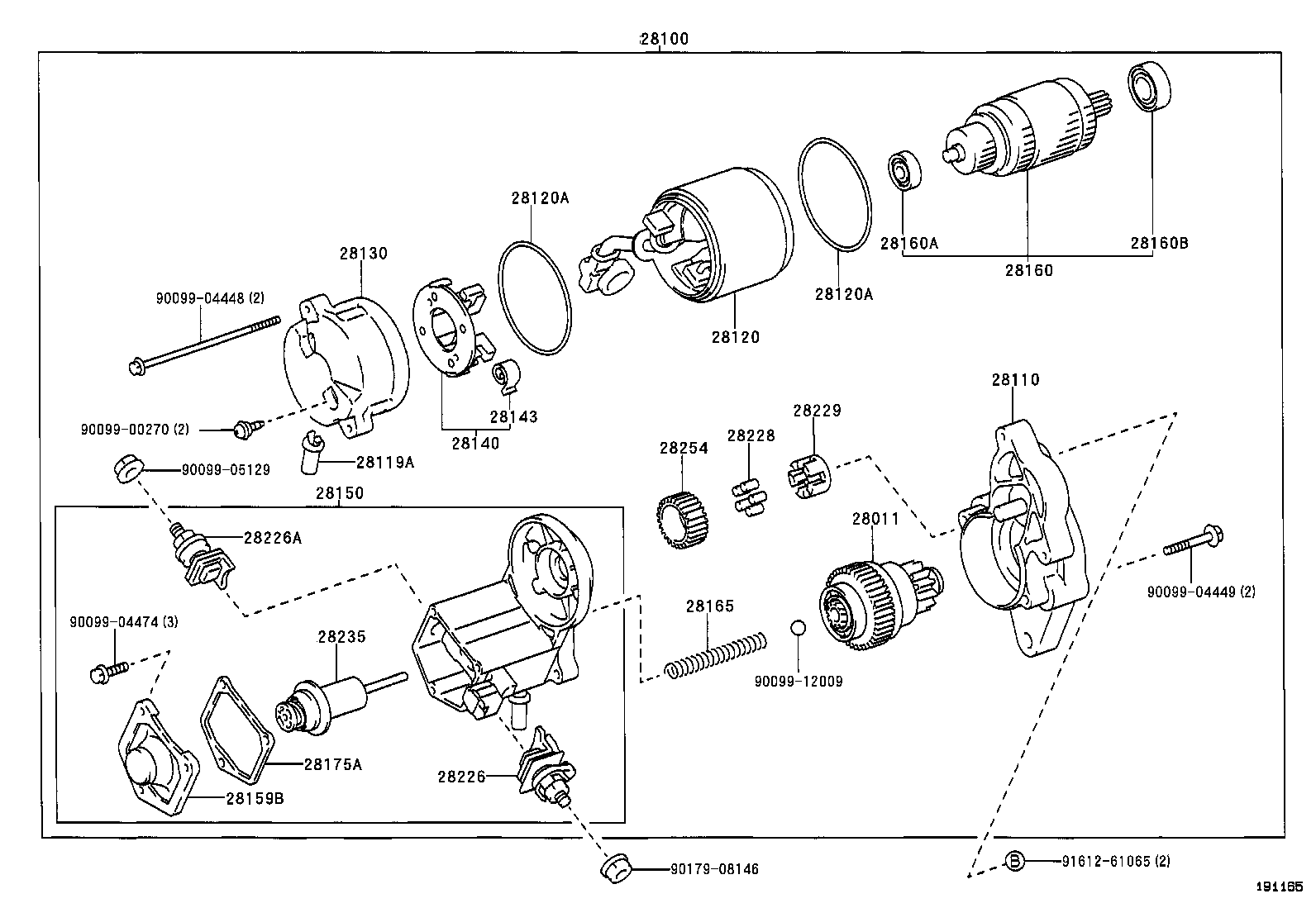

(0001-0012)2NZFE..JPP..LHD..4FC
12V 1.4W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28011-76070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28100-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1#..JPP 12V 1.0KW |
1 | ||
| 28100-21062 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28110-21020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28110-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-74110 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-66040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28120-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 1.0KW |
2 | ||
| 90099-14064 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
2NZFE,1SZFE..NCP10,SCP10..JPP..(LUNA,SOL,TRSTD) 12V 1.0KW |
2 | ||
| 90099-14064 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46220 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28130-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28130-13080 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28130-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28140-76070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
1NZFE,2NZFE..NCP1#..JPP;1SZFE..SCP10..JPP..LUNA 12V 0.8KW,1.0KW |
4 | ||
| 90099-17112 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-46220 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28160-74070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10197 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-22050 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2NZFE..NCP10..JPP..LHD..4FC |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61065 | ||||

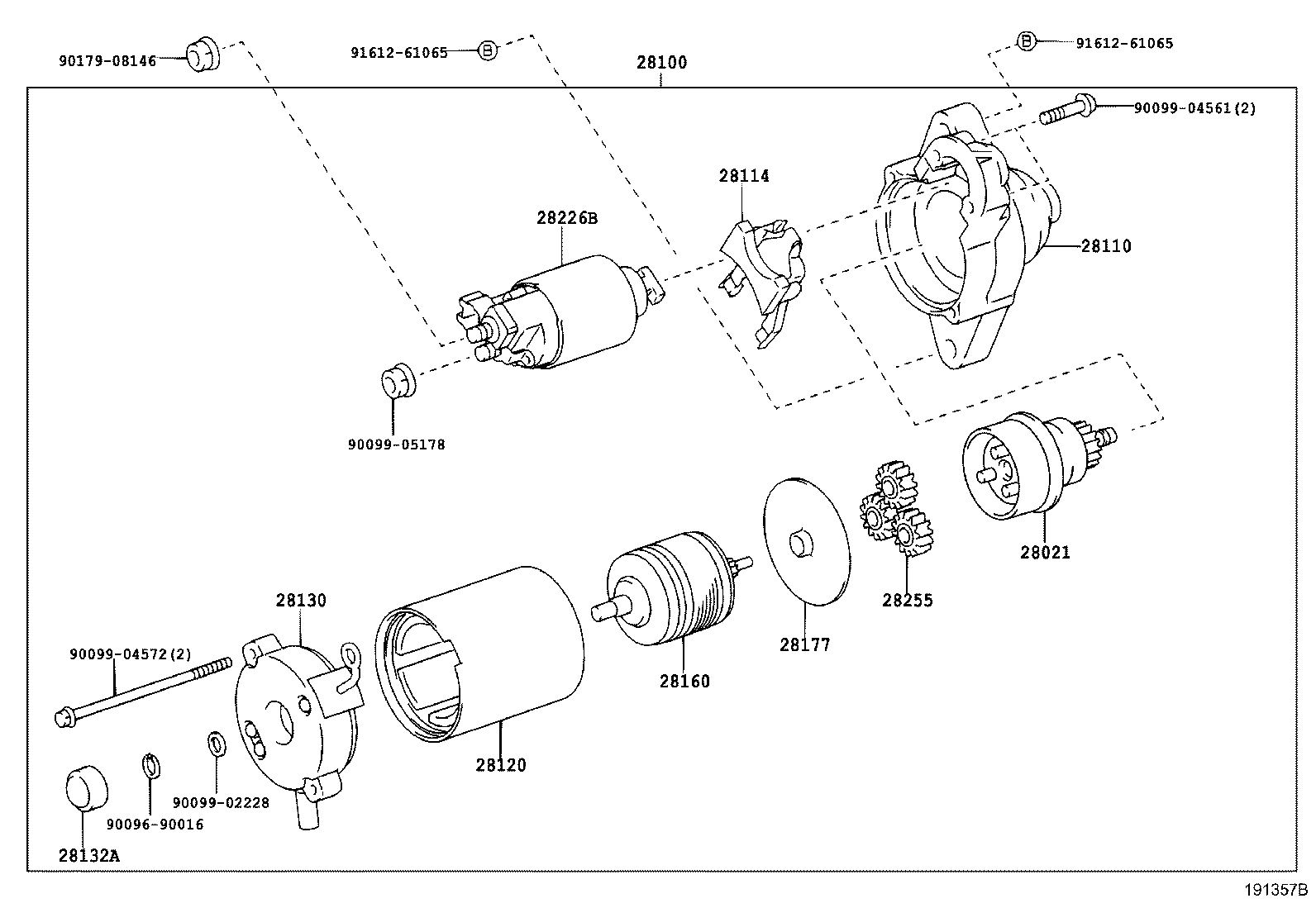

(0012-0212)2NZFE..JPP..LHD..4FC
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-21060 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28100-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1#..JPP 12V 1.0KW |
1 | ||
| 28100-21062 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-21040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28110-21020 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28110-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28110-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-21060 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-66040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28120-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46220 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28130-21061 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28130-13080 |
1NZFE,2NZFE..NCP1#..JPP 12V 0.8KW,1.0KW |
1 | ||
| 28130-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 1.0KW |
1 | ||
| 28160-74070 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.4KW |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
1 | ||
| 28177-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-28050 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28226-21060 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28226-22061 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28226-22060 |
2NZFE..NCP10..JPP..LHD..4FC |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-28040 |
2NZFE..NCP10..JPP..LHD..4FC 12V 1.6KW |
3 | ||
| 28255-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10..JPP..(LUNA,SOL,TRSTD,TS) 12V 0.8KW,1.0KW |
3 | ||
| Common parts | ||||
| 90096-90016 | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90179-08146 | ||||
| 91612-61065 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
