NCP10L-AGMGKW (1999)
Toyota Yaris (Jpp)
ILLUST NO. 3 OF 3(9901-0212)JPP..LHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-34002 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) OUTER |
1 | ||
| 90301-29005 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-34002 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) OUTER |
1 | ||
| 90301-29005 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) INNER |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-33004 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-22019 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-22020 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-52005 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-29047 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-30002 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP10,NLP10,SCP10..JPP |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP10,NLP10,SCP10..JPP |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-16060 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-12010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16050 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58008 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-58008 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| Common parts | ||||
| 90105-08378 | ||||

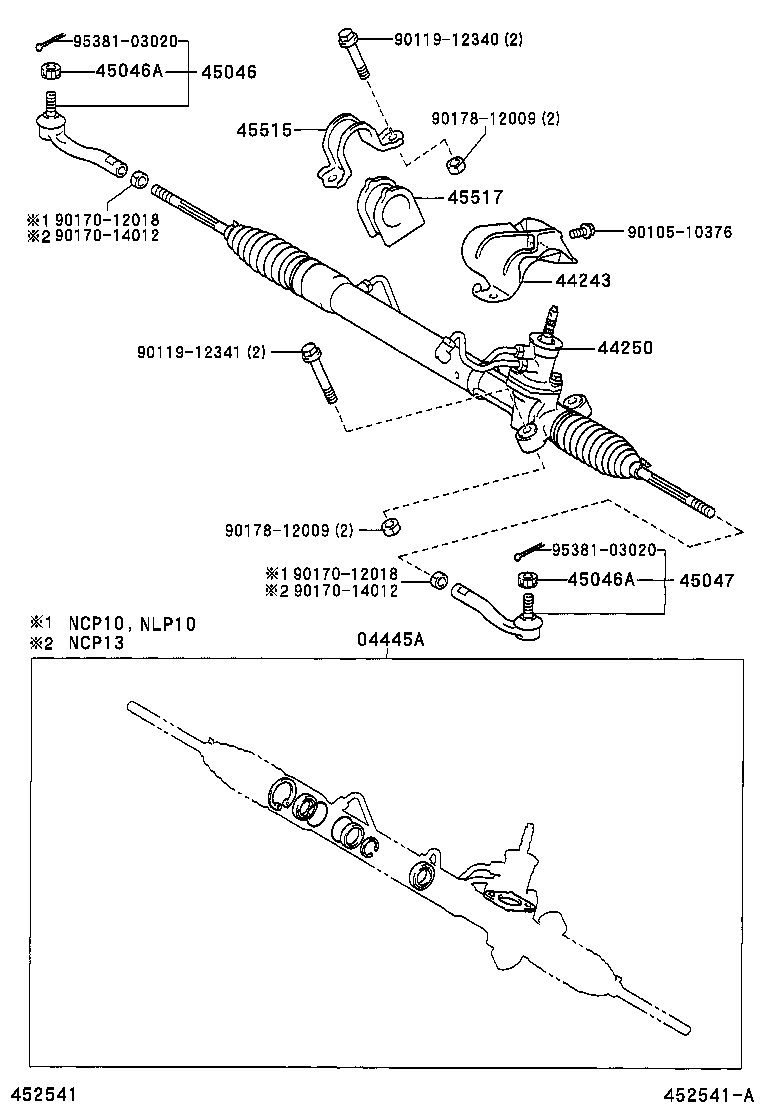

ILLUST NO. 2 OF 3(9908-0212)NCP1#,NLP10..JPP..LHD
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52010 |
NCP1#,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD,TS) |
1 | ||
| 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT | ||||
| 44243-52010 |
NCP1#,NLP10..JPP..LHD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10..JPP |
1 | ||
| 45046-59026 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10..JPP |
1 | ||
| 45047-59026 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90105-10376 | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90170-14012 | ||||
| 90178-12009 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 3(9901-0212)JPP
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) |
1 | ||
(9901-0212)JPP..LHD
W(MANUAL STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-59025 |
NCP10,SCP10..JPP |
1 | ||
| 45046-59026 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,NLP10,SCP10..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59025 |
NCP10,SCP10..JPP |
1 | ||
| 45047-59026 |
NCP10,NLP10,SCP10..JPP |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP10,NLP10,SCP10..JPP |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP10,NLP10,SCP10..JPP |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-16060 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-52010 |
NCP1#,NLP10,SCP10..JPP |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-52010 |
NCP10,NLP10,SCP10..JPP..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 45542-12010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16050 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52010 |
NCP10,NLP10,SCP10..JPP..LHD..(LUNA,SOL,TRSTD) W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-12340 | ||||
| 90119-12341 | ||||
| 90170-12018 | ||||
| 90178-12009 | ||||
| 95381-03020 | ||||
