NCP10L-AGMGKW (1999)

Toyota Yaris (Jpp)

Production Aug 1999 - Dec 2002
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )NCP1#,NLP10..JPP..5F

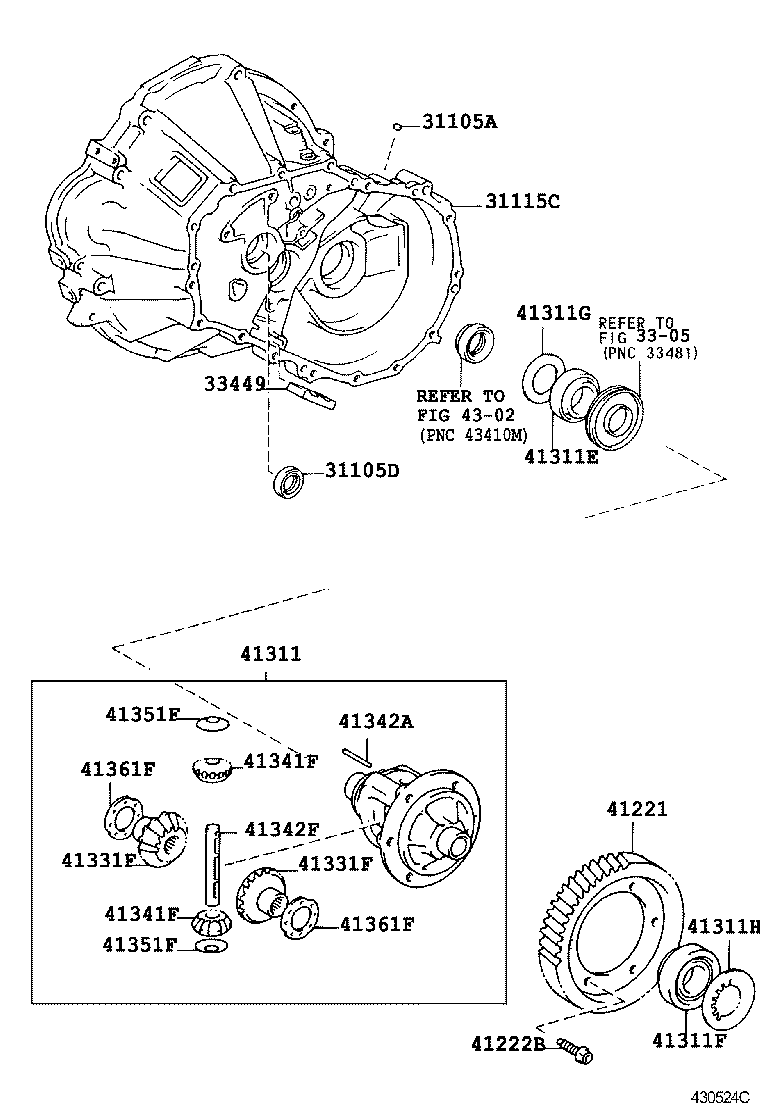

Click highlighted areas on diagram

C154,C56

diagram 31105A 31105D 31115C 3305 33449 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NCP1#,NLP10..JPP..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

NCP1#,NLP10..JPP..5F

 1
90311-25011

NCP1#,NLP10..JPP..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-52010

NCP1#,NLP10..JPP..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NCP1#,NLP10..JPP..5F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-10201

NCP10..JPP..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12100

NCP10,NLP10..JPP..5F

 6
41311 - CASE, FRONT DIFFERENTIAL
41301-10061

NCP10,NLP10..JPP..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-38004

NCP1#,NLP10..JPP..5F

T=18.5

 1
90080-36101

NCP1#,NLP10..JPP..5F

T=19.4

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

NCP1#,NLP10..JPP..5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NCP10,NLP10..JPP..5F

T=2.1

 2
90560-41002

NCP1#,NLP10..JPP..5F

T=1.2

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41019

NCP1#,NLP10..JPP..5F

T=2.35,MARK FF

 1
90564-41015

NCP1#,NLP10..JPP..5F

T=2.15,MARK BB

 1
90564-41014

NCP1#,NLP10..JPP..5F

T=2.10,MARK AA

 1
90564-41020

NCP1#,NLP10..JPP..5F

T=2.40,MARK GG

 1
90564-41025

NCP1#,NLP10..JPP..5F

T=2.65,MARK MM

 1
90564-41018

NCP1#,NLP10..JPP..5F

T=2.30,MARK EE

 1
90564-41016

NCP1#,NLP10..JPP..5F

T=2.20,MARK CC

 1
90564-41021

NCP1#,NLP10..JPP..5F

T=2.45,MARK HH

 1
90564-41023

NCP1#,NLP10..JPP..5F

T=2.55,MARK KK

 1
90564-41024

NCP1#,NLP10..JPP..5F

T=2.60,MARK LL

 1
90564-41032

NCP1#,NLP10..JPP..5F

T=3.00,MARK UU

 1
90564-41029

NCP1#,NLP10..JPP..5F

T=2.85,MARK RR

 1
90564-41030

NCP1#,NLP10..JPP..5F

T=2.90,MARK SS

 1
90564-41028

NCP1#,NLP10..JPP..5F

T=2.80,MARK QQ

 1
90564-41017

NCP1#,NLP10..JPP..5F

T=2.25,MARK DD

 1
90564-41022

NCP1#,NLP10..JPP..5F

T=2.50,MARK JJ

 1
90564-41031

NCP1#,NLP10..JPP..5F

T=2.95,MARK TT

 1
90564-41026

NCP1#,NLP10..JPP..5F

T=2.70,MARK NN

 1
90564-41027

NCP1#,NLP10..JPP..5F

T=2.75,MARK PP

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

NCP10,NLP10..JPP

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

NCP10,NLP10..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

NCP10,NLP10..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

NCP10,NLP10..JPP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

NCP10,NLP10,SCP10..JPP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-10041

NCP10,NLP10..JPP

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

NCP10,NLP10..JPP..5F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

NCP10,NLP10..JPP..5F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10080

NCP10,NLP10..JPP..5F

T=1.55

 2
41361-10100

NCP10,NLP10..JPP..5F

T=1.65

 2
41361-10090

NCP10,NLP10..JPP..5F

T=1.60

 2
41361-10070

NCP10,NLP10..JPP..5F

T=1.50

 2
41361-10120

NCP10,NLP10..JPP..5F

T=1.75

 2
41361-10110

NCP10,NLP10..JPP..5F

T=1.70

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10080

NCP10,NLP10..JPP..5F

T=1.55

 2
41361-10100

NCP10,NLP10..JPP..5F

T=1.65

 2
41361-10090

NCP10,NLP10..JPP..5F

T=1.60

 2
41361-10070

NCP10,NLP10..JPP..5F

T=1.50

 2
41361-10120

NCP10,NLP10..JPP..5F

T=1.75

 2
41361-10110

NCP10,NLP10..JPP..5F

T=1.70

 2
Linked diagrams
3305
4302
