KSP90R-AHMRKW (2005)

Toyota Yaris (Jpp)

Production Aug 2005 - Aug 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)JPP..STD ; (0508- )JPP..SOL

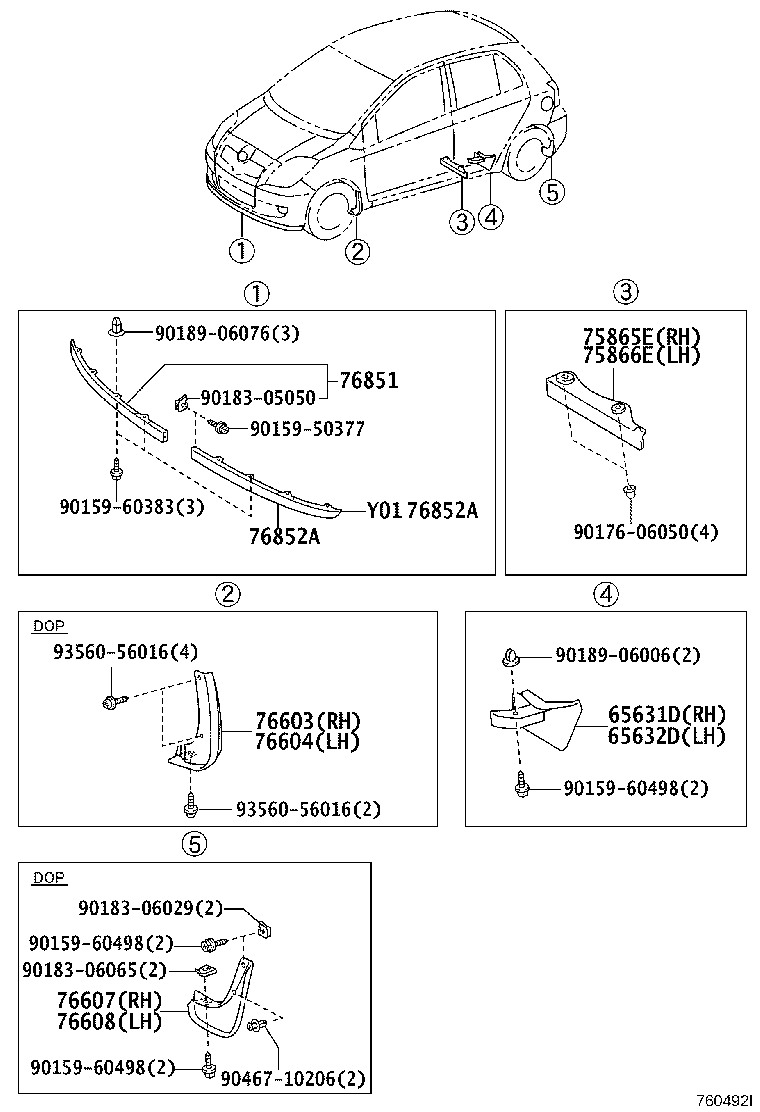

Click highlighted areas on diagram

diagram 65631D 65632D 75865E 75866E 76603 76604 76607 76608 76851 76852A 76852A 9015950377 9015960383 9015960498 9015960498 9015960498 9017606050 9018305050 9018306029 9018306065 9018906006 9018906076 9046710206 9356056016 9356056016
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-52100

KSP90..JPP

 1
65631-52050

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-52050

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
65632-52100

KSP90..JPP

 1
75865E - PROTECTOR, ROCKER PANEL MOULDING, RH
75865-52030

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
75866E - PROTECTOR, ROCKER PANEL MOULDING, LH
75866-52030

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-52060

KSP90..JPP

MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-52060

KSP90..JPP

MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-52090

KSP90..JPP

NO PAINT REQ.,MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-52090

KSP90..JPP

NO PAINT REQ.,MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK

 1
76851 - COVER, FRONT SPOILER
76851-52100

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
76852A - COVER, FRONT SPOILER, LH
76852-52070

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
76852A - COVER, FRONT SPOILER, LH
76852-52070

KSP90..JPP..STD

AIR SPATS-W/FR&CTR&RR

 1
Common parts
90159-50377
90159-60383
90159-60498
90176-06050
90183-05050
90183-06029
90183-06065
90189-06006
90189-06076
90467-10206
93560-56016
