KSP90R-AHMRKW (2005)
Toyota Yaris (Jpp)
ILLUST NO. 1 OF 2(0508- )JPP..5D
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-52020B0 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-52020B0 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-52020B0 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-52020B0 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52050B1 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52050B1 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52521C4 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
KSP90..JPP BLACK |
1 | ||
| 73219-33030 |
KSP90..JPP BEIGE |
1 | ||
| 73219-33020 |
KSP90..JPP GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52571C4 |
KSP90,ZSP90..JPP..5D..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52490B0 |
KSP90..JPP..RHD..5D..STD DK.GRAY,TRIM1#,DRIVER SIDE |
1 | ||
| 73230-52491B0 |
KSP90,ZSP90..JPP..RHD..5F..(STD,TS) DK.GRAY,TRIM1#,DRIVER SIDE |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-52500B0 |
KSP90..JPP..RHD..5D..STD DK.GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| 73230-52501B0 |
KSP90,ZSP90..JPP..RHD..5F..(STD,TS) DK.GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90901-19040 | ||||
| 91552-81022 | ||||
| 91553-80612 | ||||

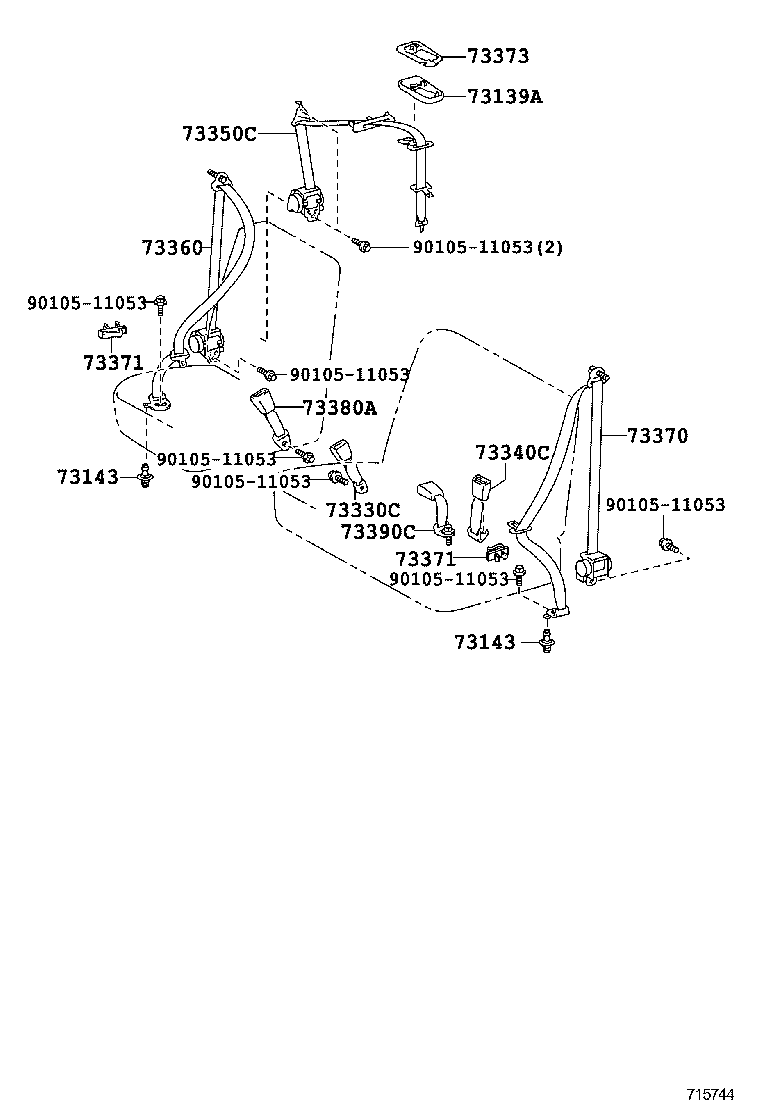

ILLUST NO. 2 OF 2(0508- )JPP
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139A - COVER, SEAT BELT ANCHOR | ||||
| 73139-52040B1 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52010 |
KSP90,ZSP90..JPP..5F |
2 | ||
| 73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH | ||||
| 73330-52050C0 |
KSP90..JPP..STD BLACK,TRIM1# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-52030C0 |
KSP90,ZSP90..JPP..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73310-52030C0 |
KSP90,ZSP90..JPP BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52211C2 |
KSP90,ZSP90..JPP..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52161C2 |
KSP90,ZSP90..JPP..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-44020P0 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-44020P0 |
KSP90,ZSP90..JPP..5F..(STD,TS) GRAY,TRIM1# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73137-52020B0 |
KSP90..JPP..STD GRAY,TRIM1# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-52030C0 |
KSP90,ZSP90..JPP..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-52010C0 |
KSP90,ZSP90..JPP..5F..(STD,TS) BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11053 | ||||
