KSP90R-AHMRKW (2008)

Toyota Yaris (Jpp)

Production Aug 2008 - Aug 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-1108)KSP90..JPP

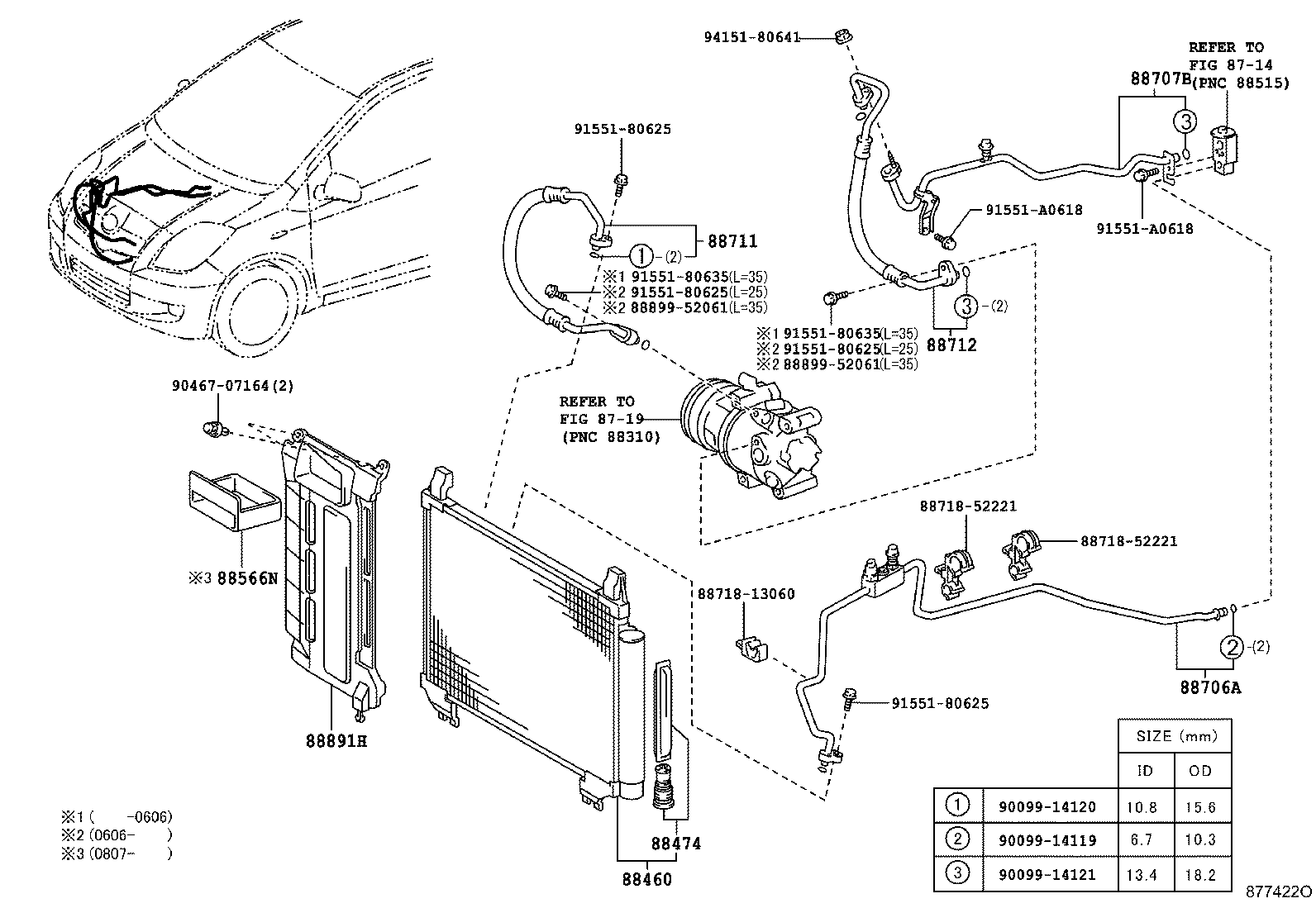

Click highlighted areas on diagram

diagram 8714 8719 88460 88474 88566N 88706A 88707B 88711 88712 8871813060 8871852221 8871852221 88891H 8889952061 8889952061 9009914119 9009914120 9009914121 9046707164 9155180625 9155180625 9155180625 9155180625 9155180635 9155180635 91551A0618 91551A0618 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-52110

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88460-52130

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88474 - DRYER, COOLER
88474-17010

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88474-17010

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88566N - DUCT, COOLER AIR, NO.1
88566-52100

KSP90..JPP

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52440

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88706-52440

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52100

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88707-52100

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52290

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88711-52350

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52260

KSP90..JPP..STD

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88712-52260

KSP90..JPP

AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88891H - COVER, COOLER, NO.1
88891-52030

KSP90..JPP

 1
88891-52032

KSP90..JPP

 1
Common parts
88718-13060
88718-52221
88899-52061
90099-14119
90099-14120
90099-14121
90467-07164
91551-80625
91551-80635
91551-A0618
94151-80641
