KSP90R-AHMRKW (2008)

Toyota Yaris (Jpp)

Production Aug 2008 - Aug 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )KSP90..JPP

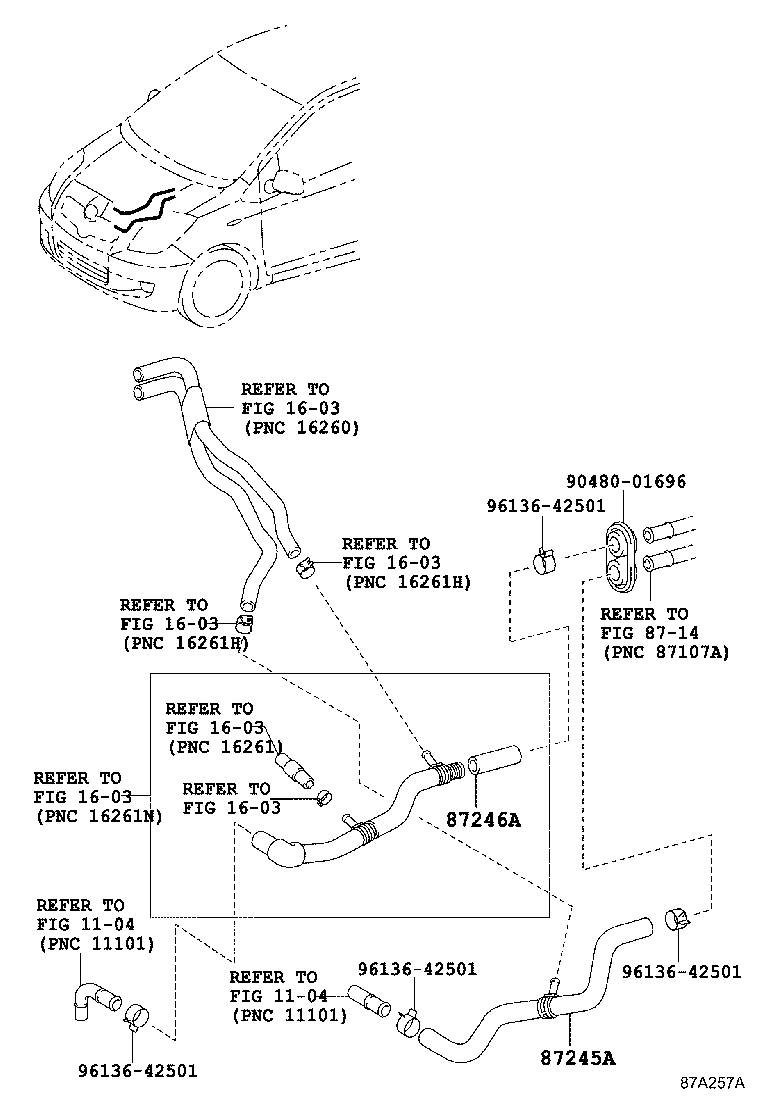

Click highlighted areas on diagram

diagram 1104 1104 1603 1603 1603 1603 1603 1603 8714 87245A 87246A 9048001696 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-52160

KSP90..JPP

 1
87209-52160

KSP90..JPP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-52150

KSP90..JPP

 1
87245-52190

KSP90..JPP

 1
Common parts
90480-01696
96136-42501
Linked diagrams
1104
1603
8714
