KSP90R-AHMRKW (2008)
Toyota Yaris (Jpp)

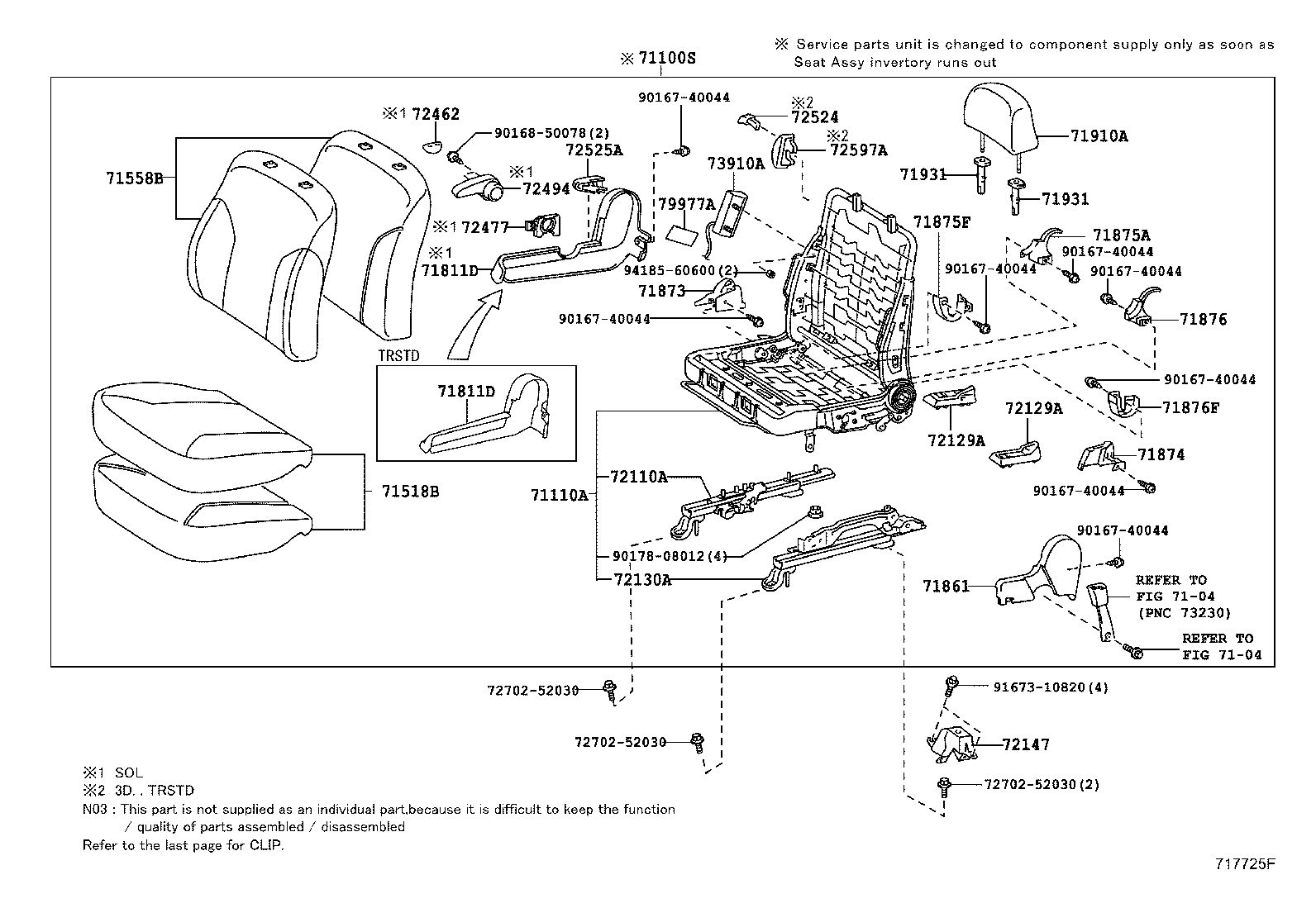

ILLUST NO. 1 OF 2(0808- )KSP90..JPP..RHD ; (0809- )ZSP90..JPP..RHD
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52190 |
KSP90..JPP..RHD..5D..STD |
1 | ||
| 71110-52200 |
KSP90..JPP..RHD..5D |
1 | ||
| 71110-52202 |
KSP90..JPP..5D |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52A60C0 |
KSP90..JPP..RHD..STD BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71518-52M10B2 |
KSP90..JPP..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 71518-52L60B2 |
KSP90..JPP..RHD SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71518-52L60B2 |
KSP90..JPP..RHD REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-5C840C2 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71558-52A90C0 |
KSP90..JPP..5D..STD BLACK,TRIM1# |
1 | ||
| 71558-5C840C2 |
KSP90..JPP..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71558-52S20B1 |
KSP90..JPP..5D DARK GREY,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861-52200B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52210B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71873-52220B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874-52200B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71910-52490C3 |
KSP90..JPP BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52020 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F;ZSP90..JPP..LHD..5D..6F |
1 | ||
| 72110-52021 |
ZSP90..JPP..LHD..5D;KSP90,ZSP90..JPP..RHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52100 |
KSP90..JPP..RHD..STD |
1 | ||
| 72130-52172 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 72130-52170 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 72147-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52020B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72525-58030B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90168-50078 | ||||
| 90178-08012 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(0808- )KSP90..JPP..RHD ; (0809- )ZSP90..JPP..RHD
DRIVER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-52Q00B1 |
KSP90..JPP..RHD..5D..STD DK.GRAY,TRIM1# |
1 | ||
| 71100-5CN31B0 |
KSP90..JPP..5D DK.GRAY,TRIM1# |
1 | ||
| 71100-5CN30B1 |
KSP90..JPP..RHD..5D DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52190 |
KSP90..JPP..RHD..5D..STD |
1 | ||
| 71110-52200 |
KSP90..JPP..RHD..5D |
1 | ||
| 71110-52202 |
KSP90..JPP..5D |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52A60C0 |
KSP90..JPP..RHD..STD BLACK,TRIM1# |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71518-5C270C0 |
KSP90..JPP..RHD..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71518-52M10B2 |
KSP90..JPP..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 71518-52L60B2 |
KSP90..JPP..RHD SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71518-52L60B2 |
KSP90..JPP..RHD REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-5C840C2 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71558-52A90C0 |
KSP90..JPP..5D..STD BLACK,TRIM1# |
1 | ||
| 71558-5C840C2 |
KSP90..JPP..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71558-52S20B1 |
KSP90..JPP..5D DARK GREY,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71811-52200B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52190B2 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861-52200B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52210B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71873-52220B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52210B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874-52200B0 |
KSP90..JPP..STD;ZSP90..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-52170B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-52160B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71910-52490C3 |
KSP90..JPP BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-52020 |
KSP90,ZSP90..JPP..RHD;KSP90,ZSP90..JPP..LHD..5D |
1 | ||
| 72110-52020 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F;ZSP90..JPP..LHD..5D..6F |
1 | ||
| 72110-52021 |
ZSP90..JPP..LHD..5D;KSP90,ZSP90..JPP..RHD |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129-52030 |
KSP90..JPP;ZSP90..JPP..6F |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129-52030 |
KSP90..JPP;ZSP90..JPP..6F |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-52100 |
KSP90..JPP..RHD..STD |
1 | ||
| 72130-52172 |
KSP90,ZSP90..JPP..RHD |
1 | ||
| 72130-52170 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 72147-52020 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58010B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52020B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72525-58030B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52150 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 73910-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52070 |
KSP90..JPP;ZSP90..JPP..6F |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90178-08012 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(0808- )KSP90..JPP..RHD ; (0809- )ZSP90..JPP..RHD
PASSENGER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-52190 |
KSP90..JPP..RHD..5D..STD |
1 | ||
| 71110-52200 |
KSP90..JPP..RHD..5D |
1 | ||
| 71110-52202 |
KSP90..JPP..5D |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-52K40B1 |
KSP90..JPP..RHD..5D..STD DK.GRAY,TRIM1# |
1 | ||
| 71200-5CM30B0 |
KSP90..JPP..RHD..5D DK.GRAY,TRIM1# |
1 | ||
| 71200-5CM31B0 |
KSP90..JPP..5D DK.GRAY,TRIM1# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52A40C0 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71528-52A40C0 |
KSP90..JPP..RHD..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71528-52B10C0 |
KSP90..JPP..RHD..5D..STD BLACK,TRIM1# |
1 | ||
| 71528-52M10B1 |
KSP90..JPP..RHD..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71528-52M30B1 |
KSP90..JPP..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 71528-52M10B1 |
KSP90..JPP..RHD..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71558-5C840C2 |
KSP90..JPP..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-5C840C2 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71568-5C580C0 |
KSP90..JPP..5D..STD BLACK,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71568-52K90B0 |
KSP90..JPP..5D DARK GREY,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 71753-52030 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,ZSP90..JPP..RHD..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71873-52190B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71910-52490C3 |
KSP90..JPP BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52050 |
ZSP90..JPP..5D..6F;KSP90..JPP..RHD..5D;ZSP90..JPP..LHD..3D..6F |
1 | ||
| 72120-52050 |
KSP90,ZSP90..JPP..5D;KSP90,ZSP90..JPP..LHD..3D |
1 | ||
| 72120-52051 |
ZSP90..JPP..LHD..3D;KSP90,ZSP90..JPP..5D |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129-52030 |
KSP90..JPP;ZSP90..JPP..6F |
8 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-52030 |
KSP90..JPP |
8 | ||
| 72129-52030 |
KSP90..JPP;ZSP90..JPP..6F |
8 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52060 |
KSP90..JPP..RHD..5D;KSP90..JPP..LHD..STD |
1 | ||
| 72140-52062 |
KSP90,ZSP90..JPP..RHD..5D |
1 | ||
| 72140-52060 |
KSP90..JPP..RHD..5D;ZSP90..JPP..RHD..5D..6F |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72148-52010 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52060 |
KSP90,ZSP90..JPP |
1 | ||
| 73920-52150 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52070 |
KSP90..JPP;ZSP90..JPP..6F |
2 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

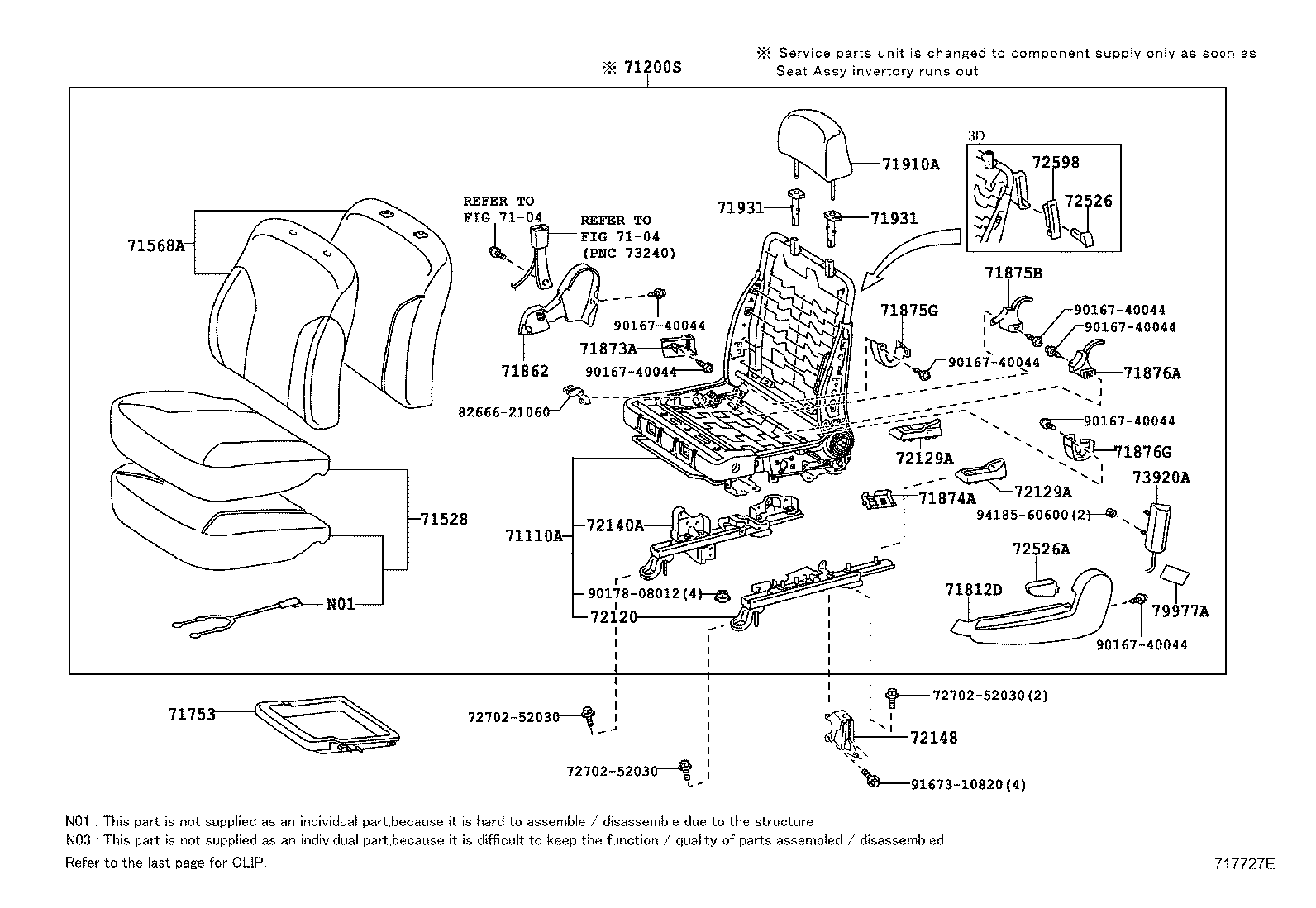

ILLUST NO. 2 OF 2(0808- )KSP90..JPP..RHD ; (0809- )ZSP90..JPP..RHD
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-52140 |
KSP90..JPP..RHD..5D |
1 | ||
| 71120-52142 |
KSP90..JPP..5D |
1 | ||
| 71120-52140 |
KSP90..JPP..RHD..5D |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52A40C0 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71528-52A40C0 |
KSP90..JPP..RHD..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71528-52B10C0 |
KSP90..JPP..RHD..5D..STD BLACK,TRIM1# |
1 | ||
| 71528-52M10B1 |
KSP90..JPP..RHD..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71528-52M30B1 |
KSP90..JPP..RHD..5D DARK GREY,TRIM1# |
1 | ||
| 71528-52M10B1 |
KSP90..JPP..RHD..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71558-5C840C2 |
KSP90..JPP..5D..STD RR HEADREST-3PIECES&SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1# |
1 | ||
| 71558-5C840C2 |
KSP90..JPP..RHD..5D..STD SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,*104 TYPE E:REF ILL. |
1 | ||
| 71568-5C580C0 |
KSP90..JPP..5D..STD BLACK,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71568-52K90B0 |
KSP90..JPP..5D DARK GREY,TRIM1# |
1 | ||
| 71558-52S00B1 |
KSP90..JPP..5D REAR HEADREST-3PIECES&SRS AIR BAG-DRIVER+PASSENGER,DARK GREY,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52030 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 71753-52030 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52190B2 |
KSP90,ZSP90..JPP..RHD..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71812-52190B2 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52140B2 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71862-52140B2 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52190B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71873-52190B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52070B0 |
KSP90..JPP..RHD;ZSP90..JPP..RHD..6F DK.GRAY,TRIM1# |
1 | ||
| 71874-52070B0 |
KSP90..JPP..STD;ZSP90..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-52170B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71875-52170B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52090B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71876-52090B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-52160B0 |
KSP90..JPP..5D;ZSP90..JPP..5D..6F DK.GRAY,TRIM1# |
1 | ||
| 71876-52160B0 |
KSP90,ZSP90..JPP..5D..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52490C0 |
KSP90..JPP..STD BLACK,TRIM1# |
2 | ||
| 71910-52490C3 |
KSP90..JPP BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010B2 |
KSP90,ZSP90..JPP..(STD,TS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
KSP90,ZSP90..JPP..5D..(STD,TS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
KSP90..JPP;ZSP90..JPP..6F W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
KSP90..JPP;ZSP90..JPP..6F W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-52050 |
ZSP90..JPP..5D..6F;KSP90..JPP..RHD..5D;ZSP90..JPP..LHD..3D..6F |
1 | ||
| 72120-52050 |
KSP90,ZSP90..JPP..5D;KSP90,ZSP90..JPP..LHD..3D |
1 | ||
| 72120-52051 |
ZSP90..JPP..LHD..3D;KSP90,ZSP90..JPP..5D |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-52060 |
KSP90..JPP..RHD..5D;KSP90..JPP..LHD..STD |
1 | ||
| 72140-52062 |
KSP90,ZSP90..JPP..RHD..5D |
1 | ||
| 72140-52060 |
KSP90..JPP..RHD..5D;ZSP90..JPP..RHD..5D..6F |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,ZSP90..JPP..5F |
1 | ||
| 72148-52010 |
KSP90..JPP;ZSP90..JPP..6F |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B0 |
KSP90,ZSP90..JPP..(STD,TS) DK.GRAY,TRIM1# |
1 | ||
| 72526-58040B0 |
KSP90..JPP;ZSP90..JPP..6F DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 82666-21060 | ||||
| 90167-40044 | ||||
| 90178-08012 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
